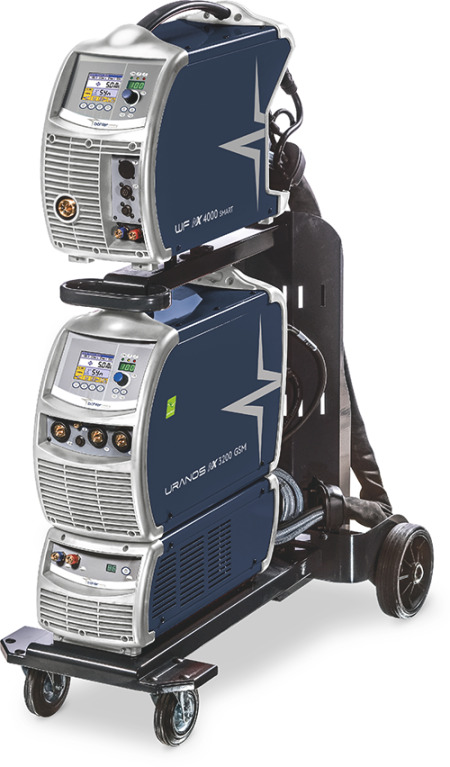

The URANOS NX 3200 GSM is a power source which combines the high technology of digital control with great simplicity of use to give accurate high quality welding as a result. It is capable of meeting the welding requirements of any field of application. The wealth of technological functions and solutions make it a valued product in all application areas where accurate and high quality welding is required.

  • MIG/MAG - Pulsed MIG/MAG _ TIG DC HF - MMA
  • Three-phase supply 3x230V – 3x400V
  • greenWave® inverter technology
  • Wide option of wire feeder models
  • 9 proprietary welding processes by Böhler Welding
  • Welding Programs
  • 3.5" Color LCD user panel
  • 320A@50% (40 °C)
  • 27.6 kg
  • General
    Welding processs MIG/MAG - PULSED MIG/MAG - MMA - TIG DC HF
    Materials Carbon steels - Stainless Steels - Duplex Steels  Aluminum - Copper - Hardfacing


    Weight 27.6 kg
    Power supply
    Voltage (50/60 Hz) 3x400/230V±15%
    Maximum input power 13.0/13.3 kVA
    Maximum input current 18.8/32.9 A
    Power factor PF 0.95
    Efficiency 85%
    Slow blow line fuse 20/30 A
    Open circuit voltage 75Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 4x4mm2 - 5 m
    Adjustment range 3-320A
    Duty cycle
    MIG/MAG - 40 °C
    50% - 320A
    60% - 310A
    100% - 250A
    Duty cycle
    MIG/MAG - 25 °C
    70% - 320A
    100% - 270A
    Ø Wire diameter  1.0-1.2 mm (opz 0.6-1.6)
    Ø Fluxcoredwire  1.2 - 1.6 mm
    Ø Aluminumwire  0.8 -1.6 mm
    Wire speed  0.5 - 22.0 m/min
    N° rolls   4 (2 WF NX 2000)
    Wire spool diameter  Ø 200/300mm (200 mm WF NX 2000)
    Welding programs 600
    Personalized programs 240
    U/D TIG Torch compatible yes
    U/D MIG/MAG torch compatible yes
    PUSH PULL torch compatible yes
    Remote Control compatible yes
    • Light job shop fabrication
    • Medium-heavy job shop fabrication
    • Building sites
    • Shipyards
    • Plants machinery construction
    • Oil refinery plants construction
    • Machine and apparatus construction
    • Automobile industry
    • Railway industry
    • Nuclear industry
    • Military industry
    • Aeronautics and Aerospace industry
    • Food industry
    • Chemical industry
    • Repair and overhaul
    • Workshops
    • Sheet metal working
    • greenWave inverter technology for high energy efficiency and perfect control over all welding phases
    • High power at 100% of duty cycle
    • Heavy duty and enviromental conditions, high service life
    • CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
    • Software based controls can be upgraded as new features become available
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Linear controlled fan on demand
    • Energy-saving inverter technology (built-in P.F.C. - power factor controller)
    • Wire feeder unit (2/4 rolls drive)
    • Wire drive unit fully designed by voestalpine Böhler Welding
    • Full parameters control panel on wire feeder unit
    • Ø 200/300 mm wire spool compatible
    • Full digital and user-friendly LCD graphic display control panel
    • Welding parameters digital display
    • Last job settings auto-storage at switch-off
    • User-defined welding program storage capability (64 free memory locations)
    • Totally programmable user interface
    • Programmable welding operations safety limits
    • Lock-unlock function key protected by password
    • Control of several welding units over Ethernet
    • Totally welding process remote programming and management by PC network
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Synergic setting for optimal stick welding with all types of electrodes
    • Precise arc striking and high stability arc
    • 2/4 step operating mode
    • Arc dynamic adjustment
    • Perfect arc ignition (soft start - motor slope)
    • Burn-back and droplet detachment correction
    • Crater filler operating mode
    • Synergic operations from databank (60 pre-set programs)
    • Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment
    • Spot welding mode
    • Intermittent welding mode
    • Bilevel MIG/MAG
    • Digital TIG torch compatible
    • Smart slope control
    • Digital MIG/MAG torch compatible
    • Euro adaptor - U/D MIG/MAG torch compatible
    • Push-pull torch device
    • Remote control compatible
    • WU cooling unit compatible
    • Controlled cooling operations
