The development and production of heat and creep resistant welding consumables for power plant applications are a focus of voestalpine Böhler Welding. Additionally, we support the manufacturers with our far-reaching experience in the welding of creep resistant steels. Fontargen Brazing provides filler metals and fluxes for the brazing in the generators and transformers. voestalpine Böhler Welding produces TUV-approved welding consumables for the base metals most used in thermal power plants.
The matching filler metals for the creep resistant steels and alloys are tested under creep conditions at elevated temperature. The creep tests have been performed on both all weld metal specimens and weld joints.

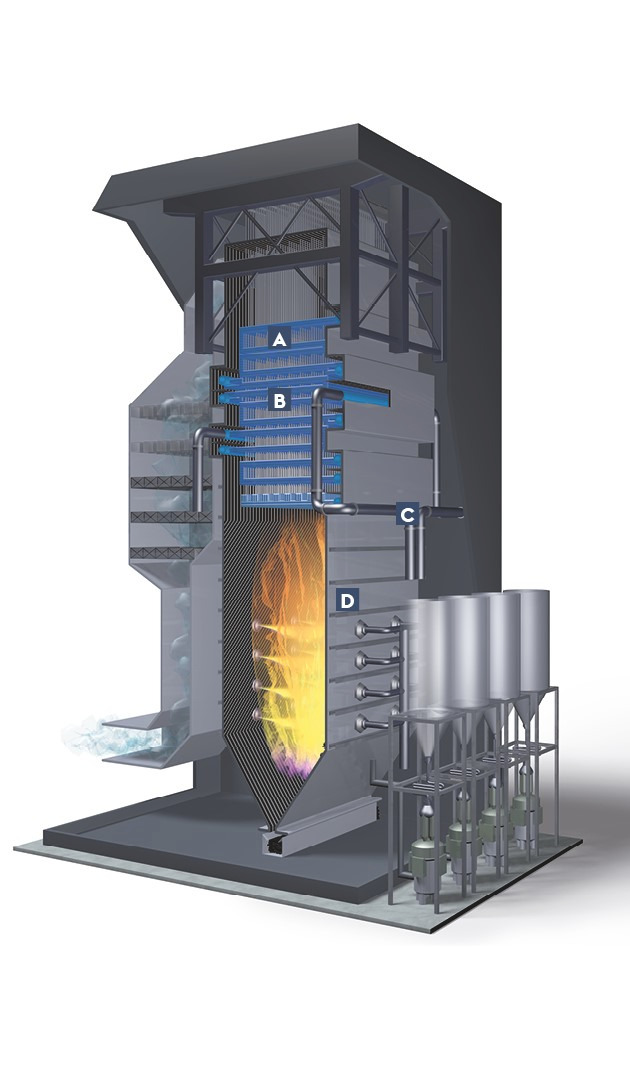

A: Superheaters / Reheaters
Superheater and reheater tubes are necessary to convert wet, saturated steam into dry steam. These tube bundles are located within the combustion chamber of the boiler. voestalpine Böhler Welding offers top quality high alloyed welding consumables that, depending on the operating conditions, are required to guarantee resistance against heat and corrosion.
B: Headers
Headers are thick-walled extruded pipes in which the fluids carried by the tubes are mixed and homogenized. These heavy-section components have to meet creep strength requirements. voestalpine Böhler Welding offers welding consumables for the high-quality welding of these critical components.
C: Main steam / Hot reheat piping
Main steam and hot reheat piping are thick-walled seamless pipes which transport the dry steam from the headers to the turbine. The wall thickness of these pipes is up to 100 mm. voestalpine Böhler Welding offers the proven welding consumables necessary for this application, which is highly demanding due to the high temperature (up to 620°C) and pressure (up to 350 bar).
D: Water walls (or membrane walls)
Many kilometers of tubes and fins are welded together and form the outside wall of the boiler. Different tube and fin material is used depending on the design of the boiler, the capacity, the temperature and the pressure (e.g. T1, T12, T23, T24...). voestalpine Böhler Welding offers welding consumables for the mechanized welding of these components in SAW or GMAW/FCAW processes as well as for the tube-to-tube welds that are necessary as performed in GTAW process (manual or auto).

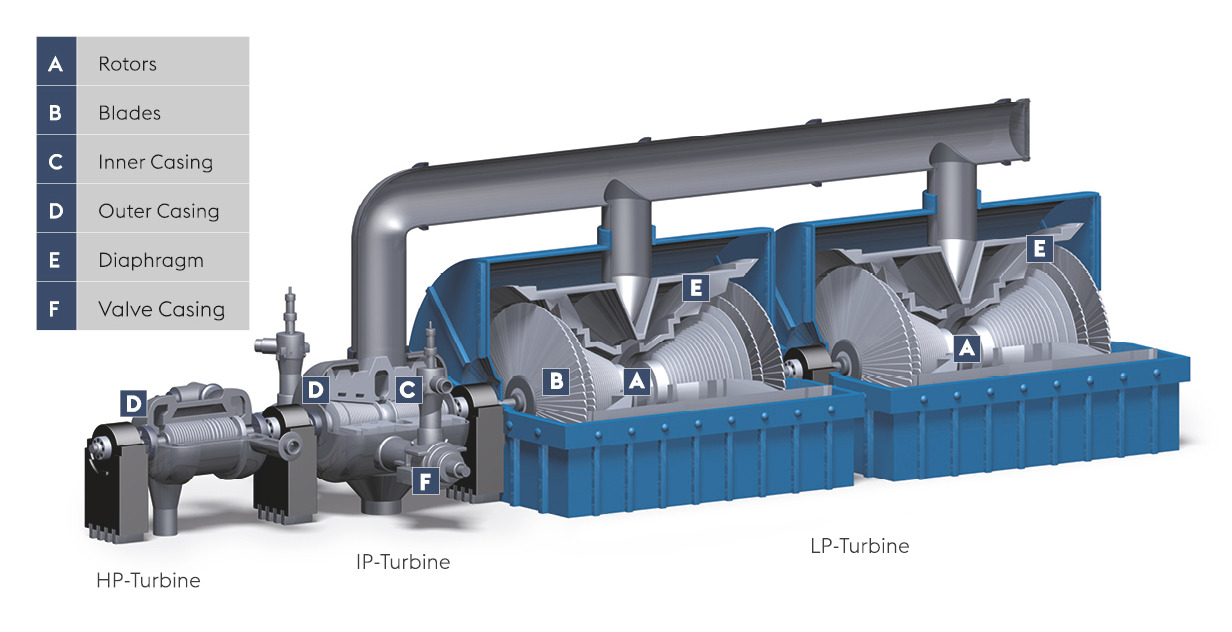

Special steels and special welding consumables are required for highly stressed components such as valves, turbine housing and rotors.. Heavy steel castings and rotor forgings, made of creep resistant steels, play a key role in fossil fuel fired power plants for highly loaded components in the high and intermediate pressure sections of a turbine casting. Turbine and generator rotors withstand high stresses and are the most significant components of a turbine generator system from a safety point of view.
Combinations of different steels are used for the welded rotors. Depending on the operating temperatures, the shafts can be fabricated out of creep resistance material or of highly toughened material.
The welding of low-pressure shafts require matching filler metals. Combined intermediate-low pressure shafts and combined high-low pressure shafts are welded using different steels. These dissimilar welded joints are designed to be located in low stress shaft areas. For this reason, the strength requirements for these welded joints are lower than for the base material. On the other hand, impact energy values of the weldments are even higher than minimum base material values. Creep is not a problem for the low-pressure end of the rotor, but high yield strength, high ductility and low Fracture Appearance Transition Temperature (FATT) behavior is required.
voestalpine Böhler Welding offers tailor-made solutions for the specific customer requirements regarding different steel combinations.

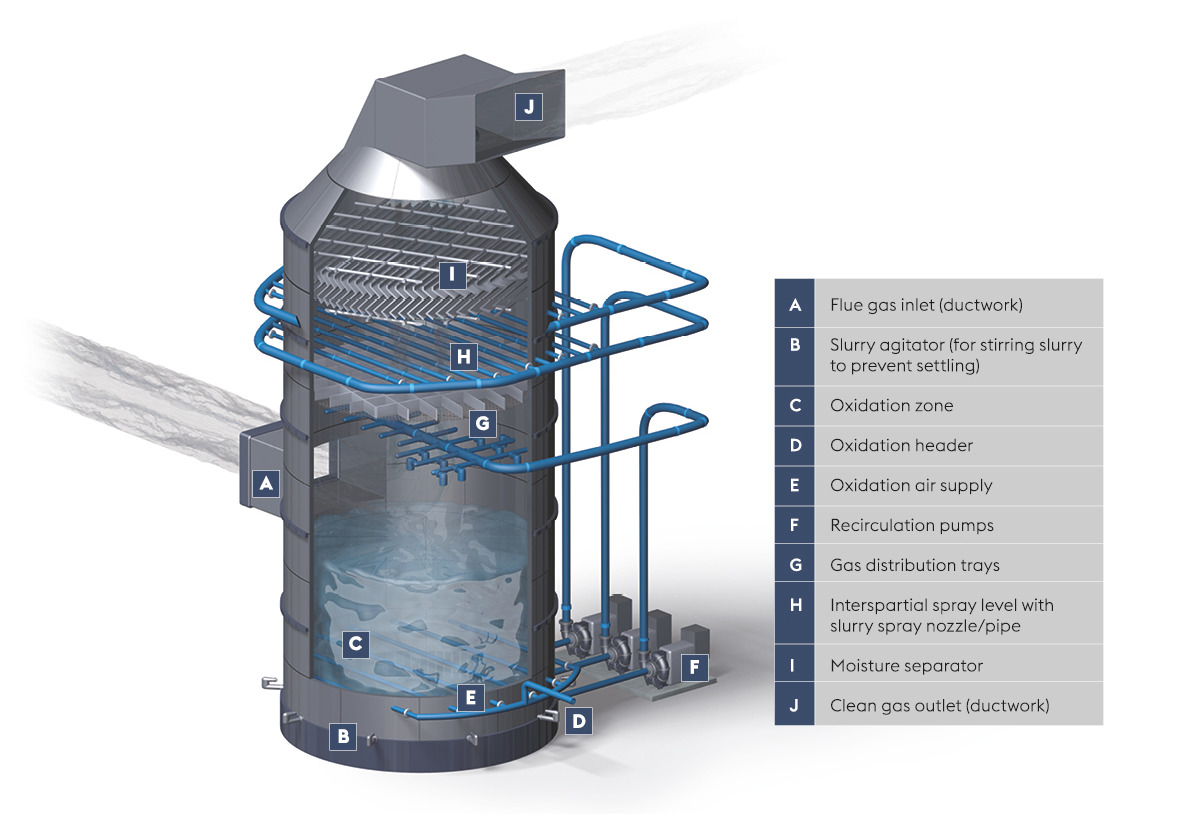

Depending on the application, FGD units require high corrosion resistant steels and Ni-alloys, for tanks, piping, absorbers, etc. The materials selection criteria depend on the chloride and pH concentration. In general, the flue of lignite coal fired power plants is more aggressive than that of hard coal fired power plants. Therefore, the FGDs of a lignite coal fired power plant generally needs high corrosion-resistant Ni-base alloys with increased CPT values.
Depending on the requirements, voestalpine Böhler Welding offers welding consumables higher alloyed than the base material, in order to match the base material corrosion resistance properties compensating the effect of the dilution.
Product Name | Industry Application | Base Material / Consumable Alloy type | AWS | EN/ISO | Process |
---|---|---|---|---|---|
BÖHLER FOX EV 50 | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.1 / SFA-5.1, E7018-1H4R | 2560-A, E 42 5 B 4 2 H5 | SMAW |
BÖHLER EMK 6 | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.18 / SFA-5.18, ER70S-6 | 636-A, W 3Si1 | GTAW |
BÖHLER EMK 6 | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.18 / SFA-5.18, ER70S-6 | 14341-A, G 42 4 M21 3Si1 / G 42 4 C1 3Si1 | GMAW |
diamondspark 52 RC | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.20 / SFA-5.20 E71T-1M/T-9M/T-12M JDH4 E71T-1C/T-9C/T-12C DH4 | 17632-A T 46 4 P M21 1 H5 T 46 2 P C1 1 H5 | FCAW |
Union S 2 Si - UV 418 TT | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.17 : F7A8-EM12K / F6P8-EM12K | 14171-A, S 42 5 FB S2Si H5 | SAW |
BÖHLER FOX EV 50 | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.1 / SFA-5.1, E7018-1H4R | 2560-A, E 42 5 B 4 2 H5 | SMAW |
BÖHLER EMK 6 | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.18 / SFA-5.18, ER70S-6 | 636-A, W 3Si1 | GTAW |
BÖHLER EMK 6 | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.18 / SFA-5.18, ER70S-6 | 14341-A, G 42 4 M21 3Si1 / G 42 4 C1 3Si1 | GMAW |
diamondspark 52 RC | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.20 / SFA-5.20 E71T-1M/T-9M/T-12M JDH4 E71T-1C/T-9C/T-12C DH4 | 17632-A T 46 4 P M21 1 H5 T 46 2 P C1 1 H5 | FCAW |
Union S 2 Si - UV 418 TT | Boiler Tubes and Pipes | P265GH, SA106A,B,C | A5.17 : F7A8-EM12K / F6P8-EM12K | 14171-A, S 42 5 FB S2Si H5 | SAW |
Union S 2 - UV 305 | Water Walls | P265GH, SA106A,B,C | A5.17 : F7AZ-EM12 | 14171-A, S 38 0 AR S2 H5 | SAW |
BÖHLER FOX DMO Kb | Boiler Tubes and Pipes | 16Mo3, Grade 1 | A5.5 / SFA-5.5, E7018-A1 H4 R | 3580-A, E Mo B 4 2 H5 | SMAW |
BÖHLER DMO-IG | Boiler Tubes and Pipes | 16Mo3, Grade 1 | A5.28 / SFA-5.28, ER70S-A1 (ER80S-G) | 21952-A, W MoSi | GTAW |
BÖHLER DMO-IG | Boiler Tubes and Pipes | 16Mo3, Grade 1 | A5.28 / SFA-5.28, ER80S-G (ER70S-A1) | 21952-A, G MoSi | GMAW |
Union S 2 Mo - UV 420 TT-LH | Boiler Tubes and Pipes | 16Mo3, Grade 1 | A5.23 : F8A4-EA2-A2-H8 / F8P4-EA2-A2-H8 | 14171-A, S 46 4 FB S2Mo H5 | SAW |
Union S 2 Mo - UV 305 | Water Walls | 16Mo3, Grade 1 | A5.23 : F8A0-EA2-A2 | 14171-A, S 46 0 AR S2Mo H5 | SAW |
FOXcore DMO RC | Boiler Tubes and Pipes | 16Mo3, Grade 1 | A5.29 / SFA-5.29, E81T1-A1M-H8 | 17634-A, T MoL P M21 1 H10 | FCAW |
BÖHLER FOX EV 64 | Boiler Tubes and Pipes | 15NiCuMoNb5, WB 36 | A5.5 / SFA-5.5, E9018-G | 2560-A, E 50 4 Z1NiMo B 4 2 H5 | SMAW |
Böhler DMO-IG | Boiler Tubes and Pipes | 15NiCuMoNb5, WB 36 | A5.28 / SFA-5.28, ER70S-A1 (ER80S-G) | 21952-A, W MoSi | GTAW |
Union S 3 NiMo 1 - UV 420 TTR-W | Boiler Tubes and Pipes | 15NiCuMoNb5, WB 36 | A5.23 : F9A8-EF3-F3-N / F9P8-EF3-F3-N | 26304-A, S 55 4 FB S3Ni1Mo | SAW |
BÖHLER FOX DCMV | Castings | G17CrMoV5-10 | A5.5 / SFA-5.5, E9018-G | 3580-A, E Z CrMoV1 B 4 2 H5 | SMAW |
diamondspark DCMV RC | Castings | G17CrMoV5-10 | 17634-A, T Z P M21 1 H5 | ||
diamondspark DCMV BC | Castings | G17CrMoV5-10 | A5.29 / SFA-5.29, E90T5-GM-H4 | 17634-A, T Z B M21 3 H5 | FCAW |
BÖHLER FOX DMV 83 Kb | Boiler Tubes and Pipes | 14MoV6-3 | A5.5 / SFA-5.5, E8018-G | 3580-A, E MoV B 4 2 H5 | SMAW |
BÖHLER DMV 83-IG | Boiler Tubes and Pipes | 14MoV6-3 | A5.28 / SFA-5.28, ER90S-G | 21952-A, W MoVSi | GTAW |
BÖHLER DMV 83-IG | Boiler Tubes and Pipes | 14MoV6-3 | A5.28 / SFA-5.28, ER90S-G | 21952-A, G MoVSi | GMAW |
BÖHLER FOX DCMS Kb | Boiler Tubes and Pipes | 13CrMo4-5, Grade 11 | A5.5 / SFA-5.5, E8018-B2 H4 | 3580-A, E CrMo1 B 4 2 H5 | SMAW |
BÖHLER DCMS-IG | Boiler Tubes and Pipes | 13CrMo4-5, Grade 11 | A5.28 / SFA-5.28, ER80S-G | 21952-A, W CrMo1Si | GTAW |
BÖHLER DCMS-IG | Boiler Tubes and Pipes | 13CrMo4-5, Grade 11 | A5.28 / SFA-5.28, ER80S-G | 21952-A, G CrMo1Si | GMAW |
Union S 2 CrMo - UV 420 TTR | Boiler Tubes and Pipes | 13CrMo4-5, Grade 11 | A5.23 : F8P4-EB2R-B2R-H4 | 24598-A, S S CrMo1 FB | SAW |
Union S 2 CrMo - UV 305 | Water Wall | 13CrMo4-5, Grade 11 | A5.23 : F10AZ-EB2R-B2 | 24598-A, S S CrMo1 AR | SAW |
FOXcore DCMS RC | Boiler Tubes and Pipes | 13CrMo4-5, Grade 11 | A5.29 / SFA-5.29, E81T1-B2M-H8 | 17634-A, T CrMo1 P M21 1 H10 | FCAW |
BÖHLER FOX CM 2 Kb | Boiler Tubes and Pipes | 10CrMo9-10, Grade 22 | A5.5 / SFA-5.5, E9018-B3 H4 R | 3580-A, E CrMo2 B 4 2 H5 | SMAW |
BÖHLER CM 2-IG | Boiler Tubes and Pipes | 10CrMo9-10, Grade 22 | A5.28 / SFA-5.28, ER90S-G | 21952-A, W CrMo2Si | GTAW |
BÖHLER CM 2-IG | Boiler Tubes and Pipes | 10CrMo9-10, Grade 22 | A5.28 / SFA-5.28, ER90S-G | 21952-A, G CrMo2Si | GMAW |
Union S 1 CrMo 2 - UV 420 TTR | Boiler Tubes and Pipes | 10CrMo9-10, Grade 22 | A5.23 : F9P2-EB3R-B3R-H4 | 24598-A, S S CrMo2 FB | SAW |
Union S 1 CrMo 2 - UV 305 | Water Wall | 10CrMo9-10, Grade 22 | A5.23 : F11AZ-EB3R-B3 | 24598-A, S S CrMo2 AR | SAW |
FOXcore CM 2 RC | Boiler Tubes and Pipes | 10CrMo9-10, Grade 22 | A5.29 / SFA-5.29, E91T1-B3M-H8 | 17634-A, T CrMo2 P M21 1 H10 | FCAW |
Thermanit Chromo 9 V | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.5 / SFA-5.5, E9015-B91 H4 | 3580-A, E CrMo91 B 4 2 H5 | SMAW |
Thermanit Chromo 9 V Mod. | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.5 / SFA-5.5, E9015-B91 H4 | 3580-A, E CrMo91 B 4 2 H5 | SMAW |
BÖHLER FOX C 9 MV | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.5 / SFA-5.5, E9015-B91 H4 | E CrMo91 B 4 2 H5 | SMAW |
BÖHLER FOX C 9 MV LNi | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.5 / SFA-5.5, E9015-B91 H4 | 3580-A, E Z CrMo91 B 4 2 H5 | SMAW |
Thermanit MTS 3 | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.28 / SFA-5.28, ER90S-B9 | 21952-A, W CrMo 9 1 | GTAW |
Thermanit MTS 3 LNi | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.28 / SFA-5.28, ER90S-B9 | 21952-A, W CrMo 9 1 | GTAW |
Thermanit MTS 3 | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.28 / SFA-5.28, ER90S-B9 | 21952-A, G CrMo 9 1 | GMAW |
Thermanit MTS 3 - Marathon 543 | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.23 : F9PZ-EB91-B91-H4 | 24598-A, S S CrMo91 FB | SAW |
Thermanit MTS 3 LNi - Marathon 543 | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.23 : F9PZ-EB91-B91-H4 | 24598-A, S S ZCrMo91 FB | SAW |
FOXcore C 9 MV RC | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.29 / SFA-5.29, E91T1-B9M-H4 | 17634-A, T ZCrMo9VNb P M21 1 H5 | FCAW |
FOXcore C 9 MV MC | Boiler Tubes and Pipes | X10CrMoVNb9-1, Grade 91 | A5.28 / SFA-5.28, E90C-B9-H4 | 17634-A, T69T15-1G-9C1MV | MCAW |
Thermanit MTS 616 | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.5 / SFA-5.5, E9015-B92 H4 / E9015-G | 3580-A, E Z CrMoWVNb9 0.5 2 B 4 2 H5 | SMAW |
Thermanit MTS 616 LNi | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.5 / SFA-5.5, E9015-B92 H4 / E9015-G | 3580-A, E Z CrMoWVNb9 0.5 2 B 4 2 H5 | SMAW |
Thermanit MTS 616 | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.28, ER90S-G [ER90S-B9(mod.)] | 21952-A, W Z CrMoWVNb 9 0.5 1.5 | GTAW |
Thermanit MTS 616 | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.28, ER90S-G [ER90S-B9(mod.)] | 21952-A, G Z CrMoWVNb 9 0.5 1.5 | GMAW |
Thermanit MTS 616 - Marathon 543 | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.23 : F9PZ-EG-G-H4 | 24598-A, S S ZCrMoWVNb9 0.5 1.5 FB | SAW |
Thermanit MTS 616 LNi - Marathon 543 | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.23 : F9PZ-EG-G-H4 | 24598-A, S S ZCrMoWVNb9 0.5 1.5 FB | SAW |
FOXcore P92 RC | Boiler Tubes and Pipes | X10CrWMoVNb9-2, Grade 92 | A5.29 / SFA-5.29, E91T1-GM | 17634-B, T Z CrWMo9VNb P M21 1 | FCAW |
BÖHLER FOX 20 MVW | Boiler Tubes and Pipes | X20CrMoWV12-1 | 3580-A, E CrMoWV12 B 4 2 H5 | SMAW | |
Thermanit MTS 4 Si | Boiler Tubes and Pipes | X20CrMoWV12-1 | A5.28 / SFA-5.28, ER90S-G | 21952-A, W CrMoWV 12 Si | GTAW |
Thermanit MTS 4 Si | Boiler Tubes and Pipes | X20CrMoWV12-1 | A5.28 / SFA-5.28, ER90S-G | 21952-A, G CrMoWV 12 Si | GMAW |
Thermanit MTS 4 - Marathon 543 | Boiler Tubes and Pipes | X20CrMoWV12-1 | A5.23 : F9PZ-EG-G-H4 | 24598-A, S S CrMoWV12 FB | SAW |
BÖHLER FOX C 9 MVW | Boiler Tubes and Pipes | X10CrMoWNb9-1-1, E911 | A5.5 / SFA-5.5, E9015-B92 H4 (mod.) | 3580-A, E ZCrMoWVNb 9 1 1 B 4 2 H5 | SMAW |
Thermanit MTS 911 | Boiler Tubes and Pipes | X10CrMoWNb9-1-1, E911 | A5.28 / SFA-5.28, ER90S-G [ER90S-B9(mod.)] | 21952-A, GZ CrMoWVNb 9 1 1 | GMAW |
Thermanit MTS 911 - Marathon 543 | Boiler Tubes and Pipes | X10CrMoWNb9-1-1, E911 | A5.23 : F9PZ-EG-G-H4 | 24598-A, S S ZCrMoWVNb9 1 1 FB | SAW |
Thermanit MTS 5 Co 1 | Castings | GX13CrMoCoVNb9-2-1, CB2 | A5.28 / SFA-5.28, ER90S-G | 21952-A, W Z CrCoMoV 10 1 1 | GTAW |
Thermanit MTS 5 Co 1 | Castings | GX13CrMoCoVNb9-2-1, CB2 | A5.5 / SFA-5.5, E9015-G | 3580-A, E Z CrCoMoV 10 1 1 B 4 2 H5 | SMAW |
FOXcore CB 2 RC | Castings | GX13CrMoCoVNb9-2-1, CB2 | A5.29 / SFA-5.29, E91T1-GM | 17634-A, T ZCrMoCo9VNbNB P M21 1 | FCAW |
Thermanit MTS 5 CoT | Super- / Reheater Tubing | X12CrCoWVNb11-2-2, VM12-SHC | A5.28 / SFA-5.28, ER110S-G | 21952-A, W Z CrCoW 11 2 2 | GTAW |
Thermanit ATS 4 | Super- / Reheater Tubing | X6CrNi18-10, 304H | A5.4 / SFA-5.4, E308H-15 | 3581-A, E 19 9 B 4 2 H5 | SMAW |
Thermanit 19 10 H | Super- / Reheater Tubing | X6CrNi18-10, 304H | A5.9 / SFA-5.9, ER19-10H | 14343-A, W 19 9 H | GTAW |
FOXcore 308 H-T1 | Super- / Reheater Tubing | X6CrNi18-10, 304H | A5.22 / SFA-5.22, E308HT1-4(1) | 17633-A, T Z 19 9 H P M21 (C1) 1 | FCAW |
Thermanit ATS 4 | Super- / Reheater Tubing | X8CrNiNb18-10, TP347H | A5.4 / SFA-5.4, E308H-15 | 3581-A, E 19 9 B 4 2 H5 | SMAW |
Thermanit 19 10 H | Super- / Reheater Tubing | X8CrNiNb18-10, TP347H | A5.9 / SFA-5.9, ER19-10H | 14343-A, W 19 9 H | GTAW |
Thermanit 617 D | Super- / Reheater Tubing | X8CrNi19-11, 347H FG | A5.11 / SFA-5.11, ENiCrCoMo-1 (mod.) | 14172, E Ni 6117 (NiCr22Co12Mo) | SMAW |
UTP A 6170 Co | Super- / Reheater Tubing | X8CrNi19-11, 347H FG | A5.14 / SFA-5.14, ERNiCrCoMo-1 | 18274, S Ni 6617 (NiCr22Co12Mo9) | GTAW |
Thermanit 304 H Cu | Super- / Reheater Tubing | X10CrNiCuNb18-9-3, 304HCu | A5.9, ER308H (mod.) | 14343-A, W Z 18 16 1 Cu H | GTAW |
UTP A 6170 Co | Super- / Reheater Tubing | X6CrNiNbN25-20, 310N, HR3C | A5.14 / SFA-5.14, ERNiCrCoMo-1 | 18274, S Ni 6617 (NiCr22Co12Mo9) | GTAW |
Thermanit 617 D | Boiler Tubes and Pipes | NiCr23CoMo12 B, Alloy 617 B | A5.11 / SFA-5.11, ENiCrCoMo-1 (mod.) | 14172, E Ni 6117 (NiCr22Co12Mo) | SMAW |
UTP A 6170 Co | Boiler Tubes and Pipes | NiCr23CoMo12 B, Alloy 617 B | A5.14 / SFA-5.14, ERNiCrCoMo-1 | 18274, S Ni 6617 (NiCr22Co12Mo9) | GTAW |
Thermanit 263 | Boiler Tubes and Pipes | NiCo20Cr20MoTi, Alloy C 263 | 14172, E Z NiCo20Cr20MoTi | SMAW | |
Thermanit 263 | Boiler Tubes and Pipes | Alloy 740H | 14172, E Z NiCo20Cr20MoTi | SMAW | |
Thermanit Nicro 82 | Dissimilar Welds | Austenitic to Ferritic | A5.11 / SFA-5.11, ENiCrFe-3 (mod.) | 14172, E Ni 6082 (NiCr20Mn3Nb) | SMAW |
Thermanit Nicro 82 | Dissimilar Welds | Austenitic to Ferritic | A5.14 / SFA-5.14, ERNiCr-3 | 18274, S Ni 6082 (NiCr20Mn3Nb) | GTAW |
Thermanit 617 D | Dissimilar Welds | Austenitic to Ferritic | A5.11 / SFA-5.11, ENiCrCoMo-1 (mod.) | 14172, E Ni 6117 (NiCr22Co12Mo) | SMAW |
UTP A 6170 Co | Dissimilar Welds | Austenitic to Ferritic | A5.14 / SFA-5.14, ERNiCrCoMo-1 | 18274, S Ni 6617 (NiCr22Co12Mo9) | GTAW |
A314 | Generator, Motors, Transformer | Copper and Copper alloys | Ag 155 | Brazing | |
A 311 | Generator, Motors, Transformer | Steel, Copper and Copper alloys | Ag 244 | Brazing | |
A 347 | Generator, Motors, Transformer | Steel, Copper and Copper alloys | B Ag-7 | Ag 156 | Brazing |
A 320 | Generator, Motors, Transformer | Steel, Copper and Copper alloys | B Ag-36 | Ag 145 | Brazing |
A 330 | Generator, Motors, Transformer | Steel, Copper and Copper alloys | B Ag-20 | Ag 230 | Brazing |
A 3005 | Generator, Motors, Transformer | Copper and Copper alloys | B Cu-P7 | CuP 281 | Brazing |
A 3015 | Generator, Motors, Transformer | Copper and Copper alloys | B Cu-P5 | CuP 284 | Brazing |
A 3018 | Generator, Motors, Transformer | Copper and Copper alloys | B Cu-P8 | CuP 285 | Brazing |
F 300 H Ultra NT (Brazing Flux) | Generator, Motors, Transformer | Copper and Copper alloys | FH 10 | Brazing |
