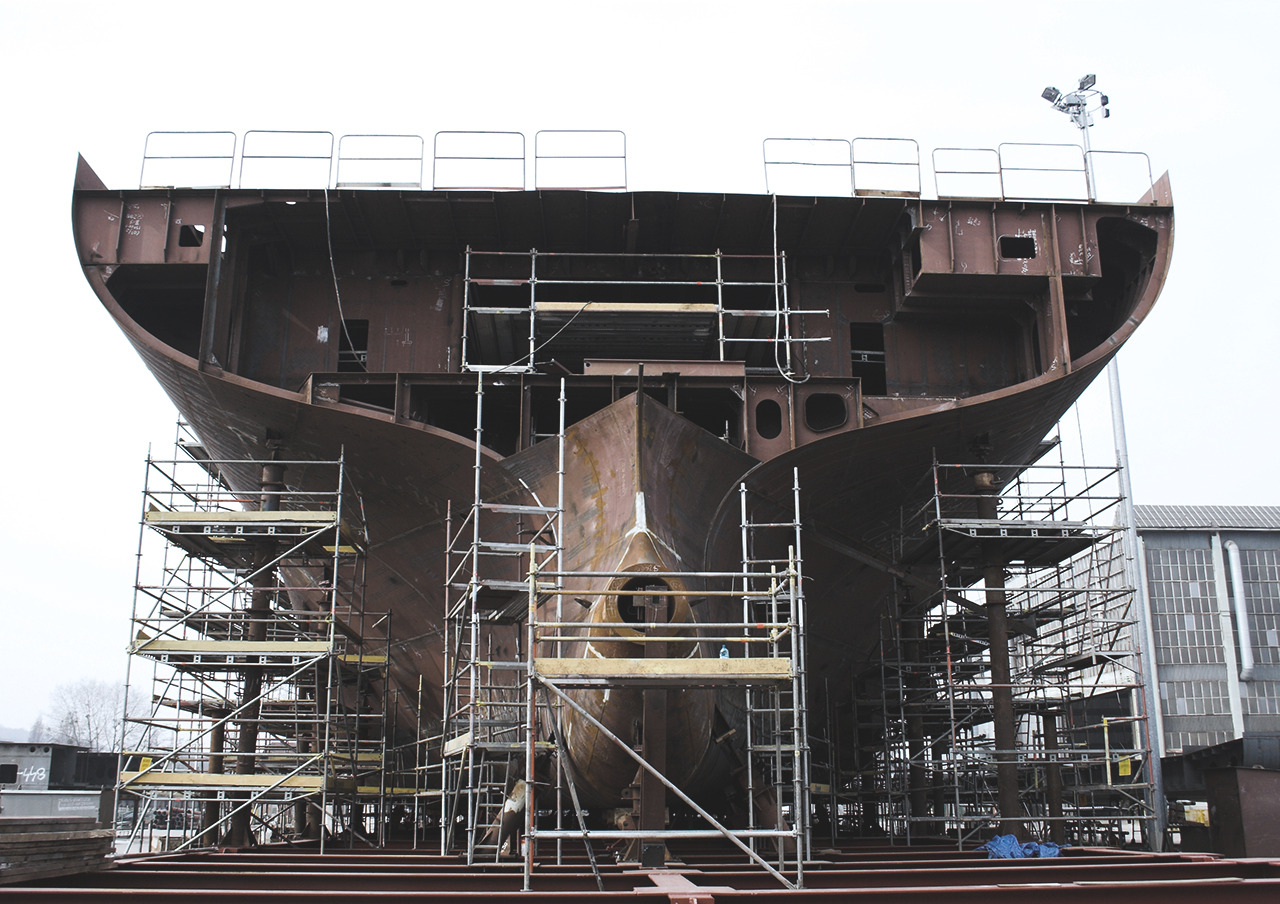

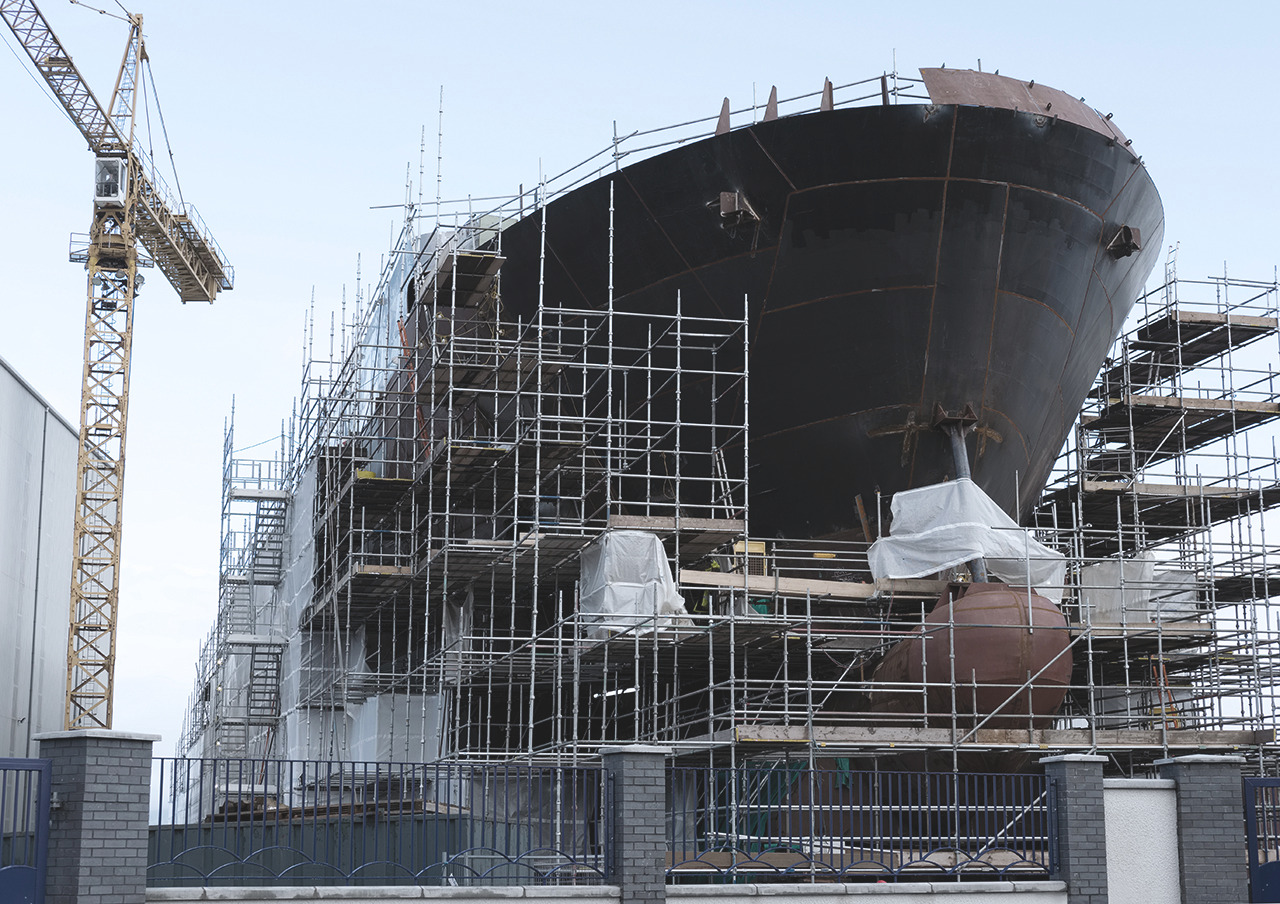

The shipbuilding industry is a very diverse industry that manufactures larger, mainly seagoing vessels for cargo or passenger transport, the offshore energy industry or military purposes. It also includes the maintenance and conversion of these vessels. A wide range of materials are used in the shipbuilding industry, from structural steel to high-strength steel, stainless-steel and aluminum.

In most cases, these materials are joined using the traditional arc welding process. To a large extent, these are manual operations, but there is a growing trend towards robotization and automation to increase both productivity and quality. Whatever the application is, Böhler Welding offers the right consumables and application technologies. In combination with our equipment, we offer Full Welding Solutions for yards and system suppliers.

Product Overview

Welding Consumables for the Shipbuilding Industry

Product Name Base Material / Consumable Alloy type AWS EN/ISO Process
Böhler Fox OHV Grd. A-E, S275-S355 A5.1 : E6013 2560 : E 38 0 RC 1 1 SMAW
Böhler Fox ETI Grd. A-E, S275-S355 A5.1 : E6013 2560 : E 42 0 RC 1 2 SMAW
Phoenix Rot R 160 Grd. A-E, S275-S355 A5.1 : E7024-1 2560 : E 42 0 RR 5 3 SMAW
Böhler Fox Red R 160 Grd. A-E, S275-S355 A5.1 : E7024-1 2560 : E 42 0 RR 7 3 SMAW
Böhler Fox Red BR 160 Grd. A-E, S275-S355 A5.1 : E7028 2560 : E 42 2 RB 5 3 SMAW
Böhler Fox OHV Grd. A-E, S275-S355 A5.1 : E6013 2560 : E 38 0 RC 1 1 SMAW
Böhler Fox ETI Grd. A-E, S275-S355 A5.1 : E6013 2560 : E 42 0 RC 1 2 SMAW
Phoenix Rot R 160 Grd. A-E, S275-S355 A5.1 : E7024-1 2560 : E 42 0 RR 5 3 SMAW
Böhler Fox Red R 160 Grd. A-E, S275-S355 A5.1 : E7024-1 2560 : E 42 0 RR 7 3 SMAW
Böhler Fox Red BR 160 Grd. A-E, S275-S355 A5.1 : E7028 2560 : E 42 2 RB 5 3 SMAW
Böhler Fox EV 50 Grd. A-E, S275-S355 A5.1 : E7018-1 H4 R 2560 : E42 5 B 4 2 H5 SMAW
Diamondspark 46 RC Grd. A-E, S275-S355 A5.20 : E71T1-M21A2-CS1-H4, A5.20 : E71T1-C1A0-CS1-H4 17632-A : T 46 3 P M21 1 H5, 17632-A : T 42 2 P C1 1 H5 GMAW
Diamondspark 52 RC Grd. A-E, S275-S355 A5.20 : E71T1-M21A4-CS2-H4, A5.20 : E71T1-C1A2-CS2-H4 17632-A : T 46 4 P M21 1 H5, 17632-A : T 42 2 P C1 1 H5 GMAW
Böhler Q 52 RC Grd. A-E, S275-S355 A5.20 : E71T1-M21A4-CS2-H8, A5.20 : E71T1-C1A2-CS2-H4 17632-A : T 46 4 P M21 1 H10, 17632-A : T 42 2 P C1 1 H5 GMAW
Diamondspark 46 MC Grd. A-E, S275-S355 A5.18 : E71T1-M21A2-CS1-H4 17632-A : T 46 3 P M21 1 H5 GMAW
Diamondspark 52 MC Grd. A-E, S275-S355 A5.18 : E71T1-M21A4-CS2-H4 17632-A : T 46 4 P M21 1 H5 GMAW
Union S2 / UV 306 Grd. A-E, S275-S355 A5.17 : F7A2-EM12 14171-A : S42 3 AR S2 SAW
Union S2 / UV 400 Grd. A-E, S275-S355 A5.17 : F7A4-EM12, A5.17 : F6P4-EM12 14171-A : S 38 4 AB S2, 14171-A : S 3T 2 AB S2 SAW
Union S3 Si / UV 418 TT Grd. A-E, S275-S355 A5.18 : F7A8-EH12K 14171-A : S 46 6 FB S3Si SAW
Union S3 Si / UV 421 TT Grd. A-E, S275-S355 A5.17 : F7A8-EH12K 14171-A : S 46 6 FB S3Si SAW
Union S2 Mo / UV 400 Grd. A-E, S275-S355 A5.23 : F8A4-EA2-A2 14171-A : S 46 4 AB S2Mo SAW
Diamondspark S 55 HP / UV 306 Grd. A-E, S275-S355 A5.17 : F7A5-ECG 14171-A : S 50 4 AR T3 H5 SAW
Diamondspark S 55 HP / UV 418 TT Grd. A-E, S275-S355 A5.17 : F7A8-EC1 14171-A : S 46 6 FB T3 H5 SAW
Böhler Fox EV 85 HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.5 : E11018-G H4 R 18275-A : E 69 6 Mn2NiCrMo B 4 2 H5 SMAW
Böhler Fox EV 90 HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.5 : E11018-G 18275-A : E 69 5 Mn2NiCrMo B 4 2 H5 SMAW
Böhler NiCrMo 2,5-IG HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.28 : ER110S-G 16834-A : G 69 6 M21 Mn3Ni2.5CrMo GMAW
Diamondspark 80 RC HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.29 : E111T1-M21A8-GH4 18276-A : T 69 6 Z P M21 1 H5 GMAW
Diamondspark 700 MC HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.28 : E110T15-M21A8-K4-H4 18276-A : T 69 6 Mn2NiCrMo M M21 1 H5 GMAW
Union S3 NiMoCr / UV 422 TT LH HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.23 : F11A8-EG-F6 26304-A : S 69 6 FB SZ3Ni2,5CrMo SAW
Union S 3 NiMoCr - UV 418 TT HY 80, HY 100, HRS 650M,80 HLES, 100 HLES A5.23 : F11A8-EG-F6 / F11P4-EG-F6 26304-A, S 69 6 FB SZ3Ni2.5CrMo H5 SAW
