voestalpine Böhler Welding offers welding solutions for various applications in exploration and production equipment, covering both offshore and onshore oil and gas fields. The company is a leader in joining medium-alloyed steels designed to withstand to multiple post-weld heat treatments, as well as in surface protection using nickel-alloy cladding or hardfacing. Böhler Welding has become the main supplier of the major O&G equipment manufacturers. Thanks to our extensive sales network, we supply these welding solutions to manufacturing locations all over the world.

Welding Solutions

Drilling Equipment and Subsea Hardware

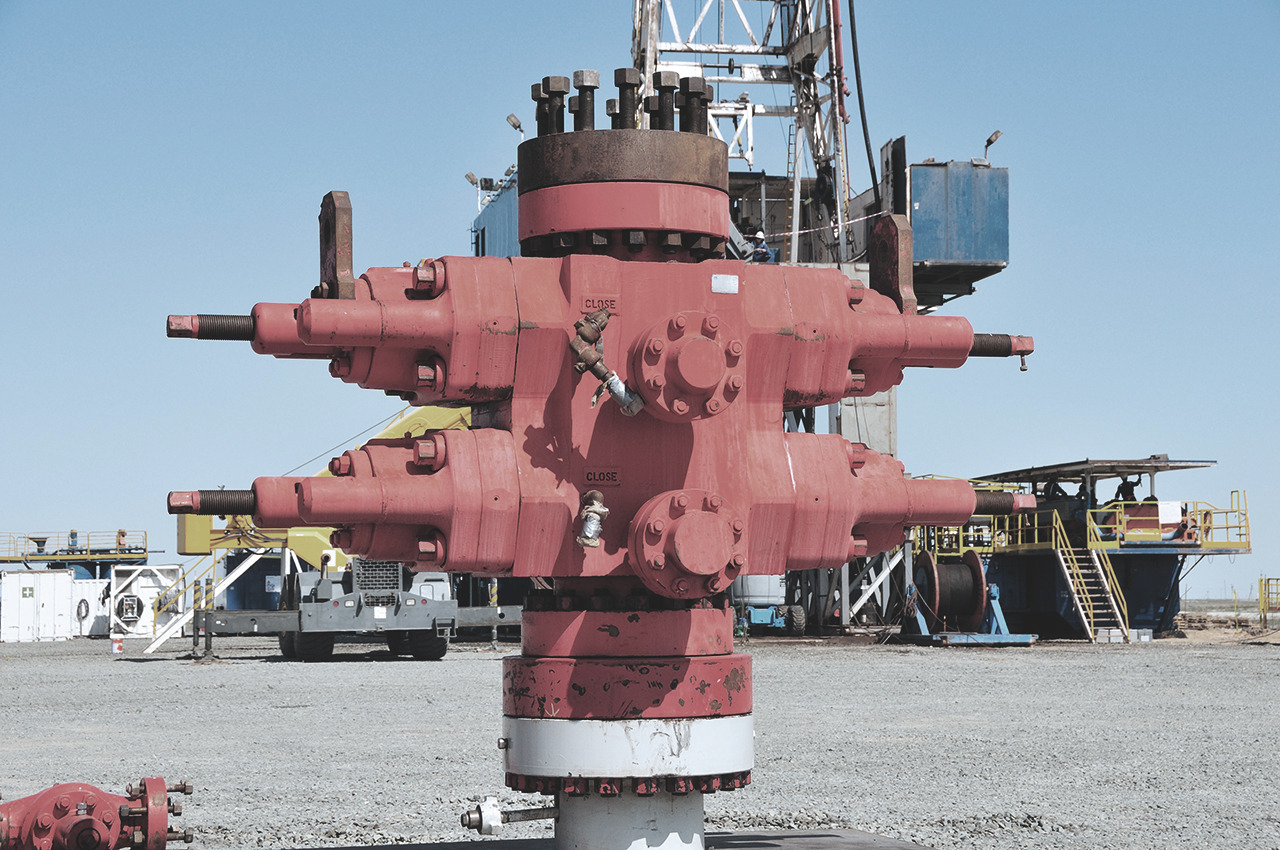

Fluid pressure control: blow out preventers, ram/annular and connectors, are also welded with our special welding consumables, designed for the typical three post-weld treatments required by the major fabricators. To prevent corrosion and oxidation, alloy 625 cladding is applied using the hot wire TIG process, the submerged arc process for groove cladding or even the electroslag strip cladding process for larger components.

Choke and kill lines: The choke and kill lines which are made of steel and connected to the riser tube are welded with similar consumables.

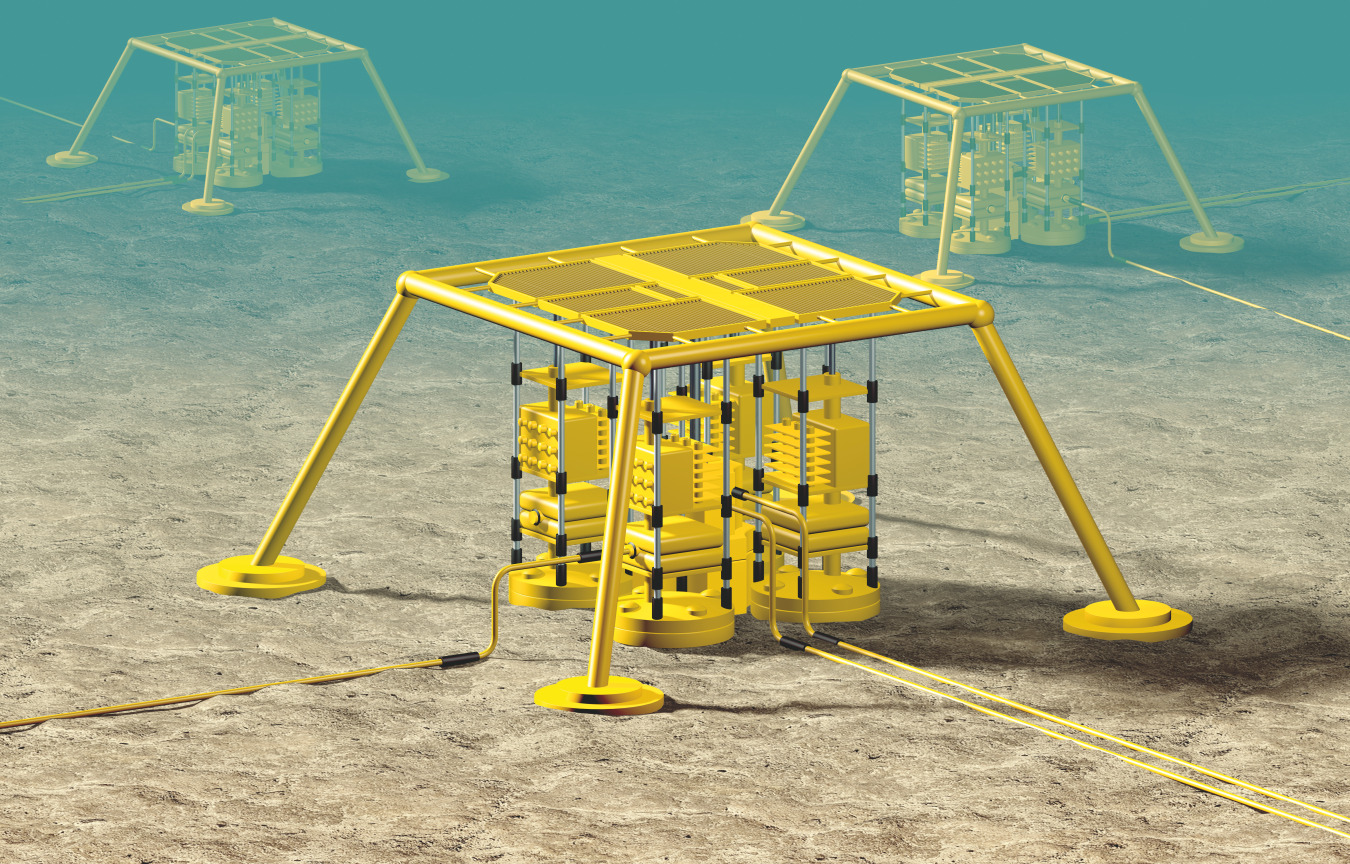

Other subsea components: Most of them are internally clad with nickel alloys and, as in the BOP, the hot wire TIG process is the main cladding process used. Request the assistance of our experts in selecting the right solid wire for this application. Our welding consumables are manufactured based on the specific requirements of each welding process .

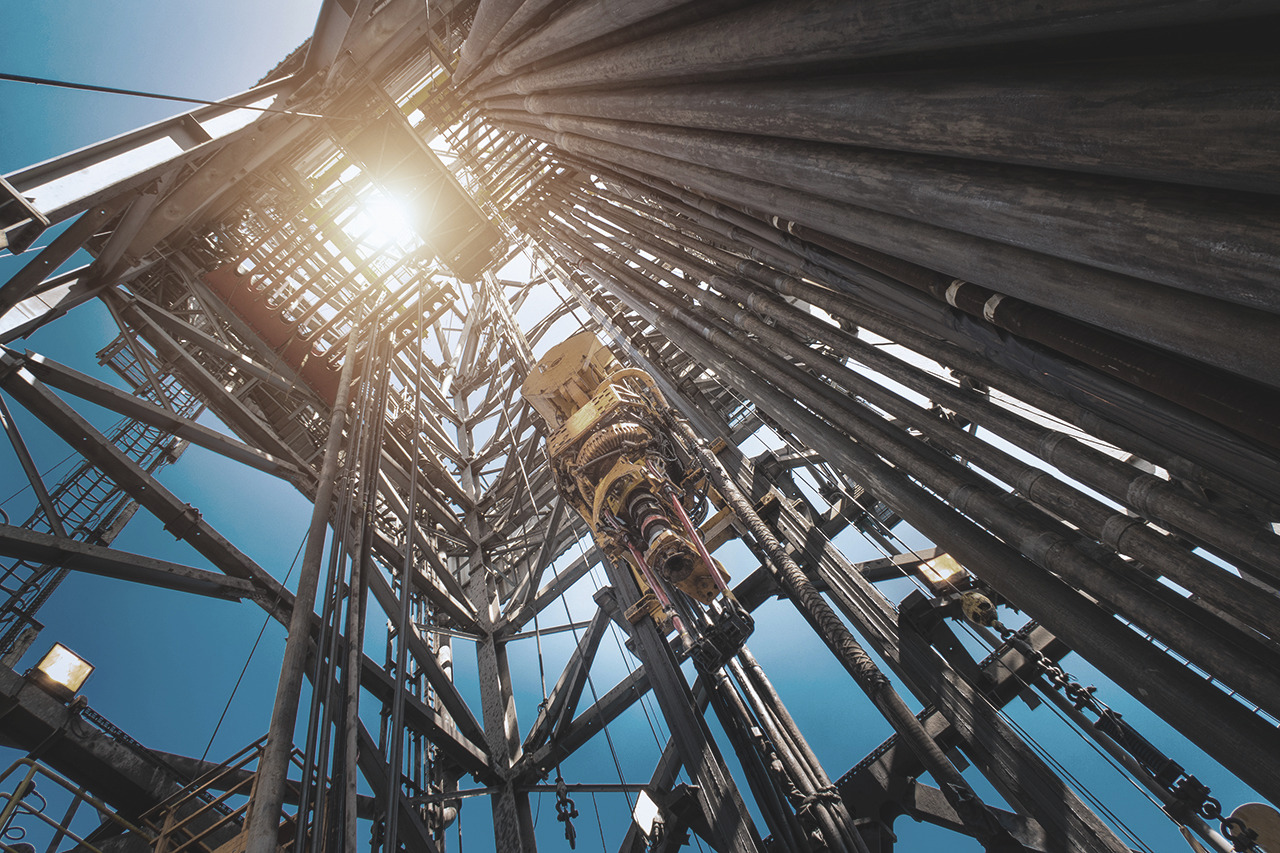

Drilling strings: Tool joints and the assembly bottom holes are typically hardfaced with UTP flux cored wires or UTP spraying powders. Böhler Welding has long supplied consumables for riser welding, pipe-to-pipe welding and pipe-to-flange welding, both on the carbon steel parts as well as on duplex tubing used for communications systems.

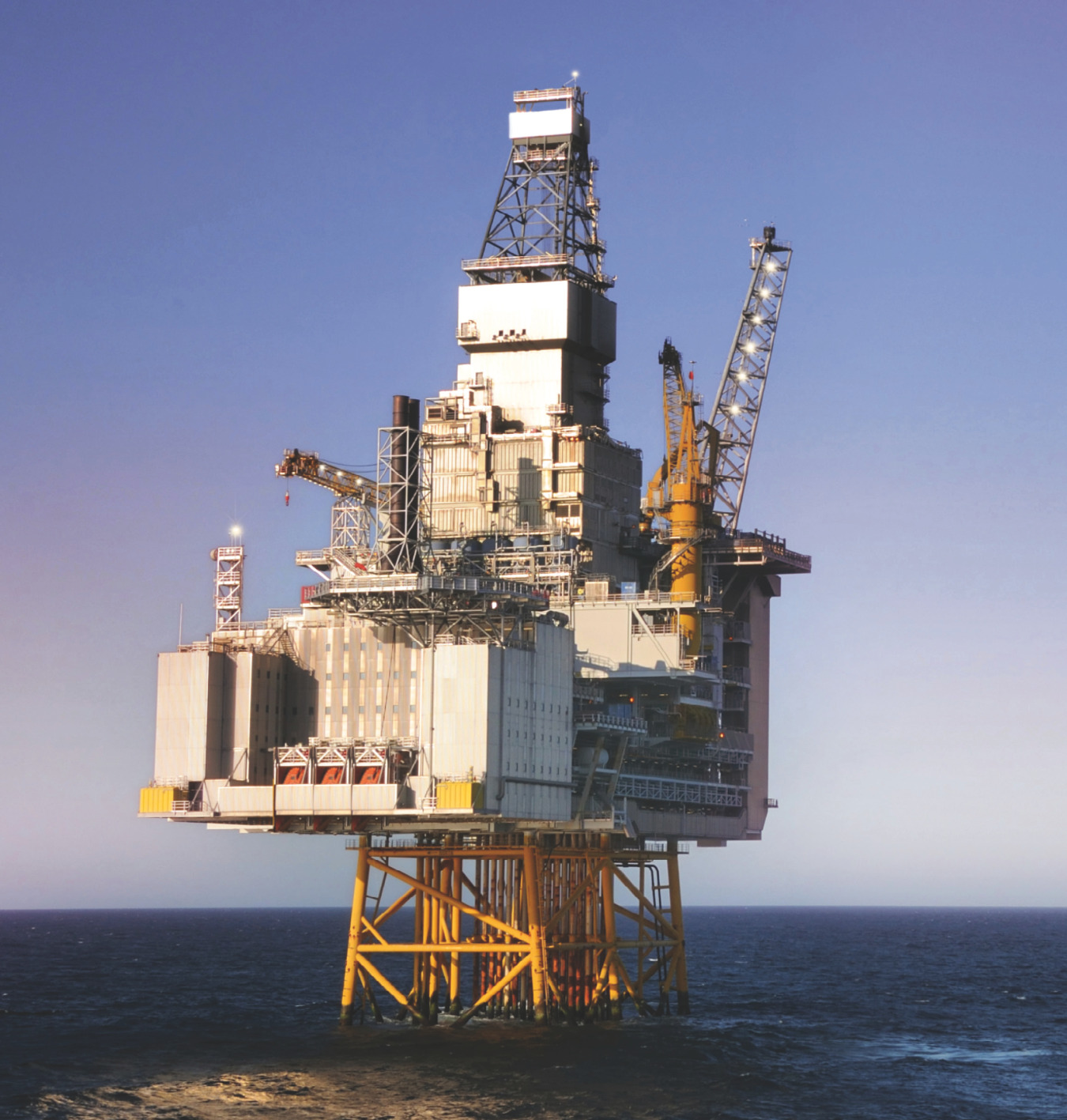

Off-shore Platforms and Mobile Drilling Units

Off-shore platforms are very often welded in quite humid environments; seamless cored wires from Böhler Welding are the perfect solution for the assembly of these large carbon structures. Hulls, cantilever, legs, spud cans, etc., can be welded with seamless cored wires covering ABS steels from EQ43 to EQ70.

Most traditional welding processes such as SMAW, Submerged Arc Welding, or self-shielded cored wires can of course also be found in our product range.

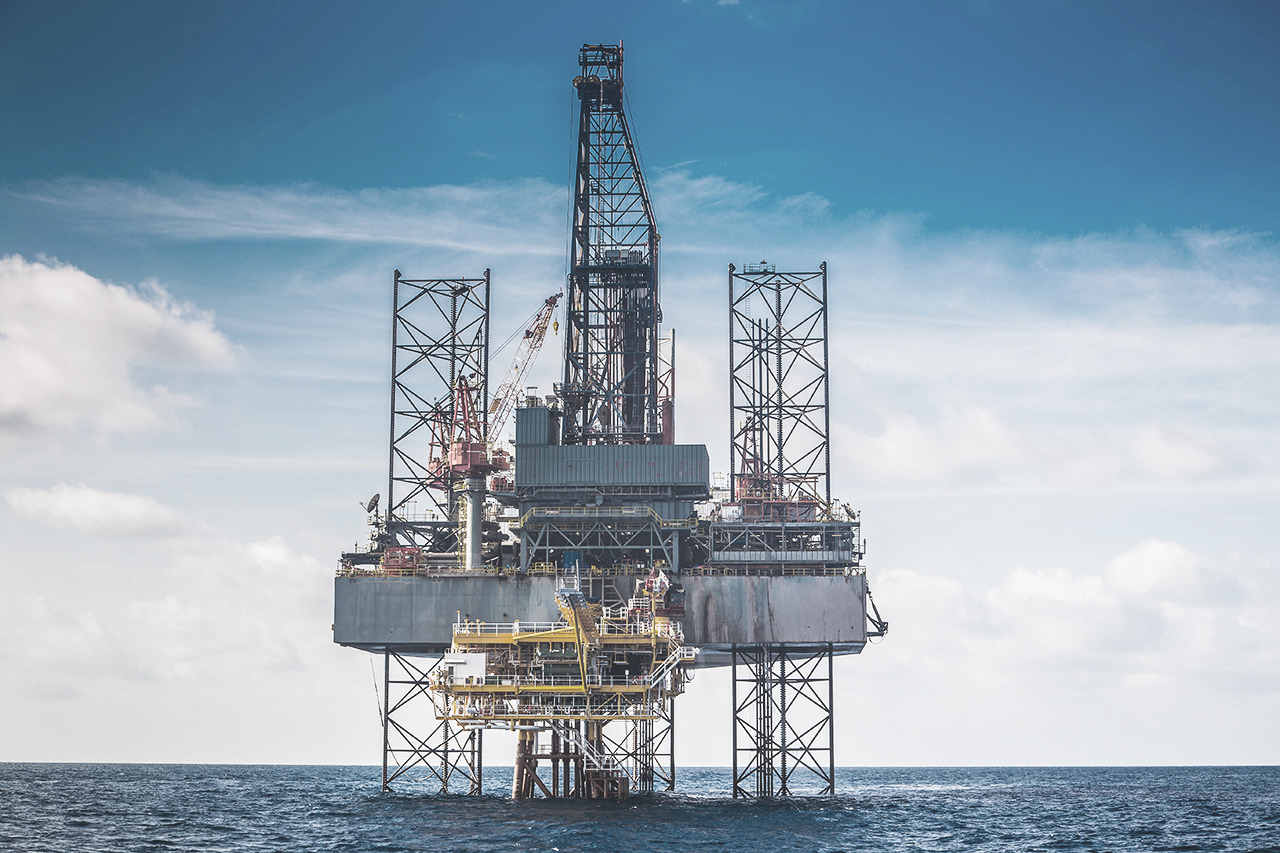

Mobile drilling units such as jack-up rigs are similar to offshore platforms except for the legs systems that allow the unit to move up and down while drilling. The chord on the rack of these legs can be welded with our highly productive submerged arc solution by using a seamless cored wire instead of a solid one.

Production and Top Side Processing

Various equipment can be found in production and top side processing. Valves, separators, process piping, FPSO swivel stacks and towers, pumps and compressors, etc.

Cladding is one the main welding applications for these components. Depending on the size of the component, we can offer you several welding processes with different deposition rates, from TIG hot wire cladding to high productivity electroslag strip cladding.

Product Overview

Welding Consumables for Oil & Gas Upstream

Product Name Industry Application Base Material / Consumable Alloy type AWS EN/ISO Welding Process
BÖHLER FOX NiMo Drilling Equipment 4130 cast steel A5.5 : E10018-D2 18275-A: E 62 4 Mn1NiMo B 4 2 H5 SMAW
diamondspark 620 MC Drilling Equipment 4130 cast steel A5.28 : E100C-GH4 18276-A : T62 4 Z M M 1 H5 MCAW
Union I NiMo 1-IG Drilling Equipment 4130 cast steel A5.28 : ER90S-G 16834 : G Mn3Ni1Mo GMAW
Union S 3 NiMo 1 + UV 420 TTR Drilling Equipment 4130 cast steel A5.23 : F9P8-EF3-F3-N 26304-A : S 55 4 FB S3Ni1Mo H5 SAW
Union S 3 NiMo 1 + UV 420 TTR-C Drilling Equipment 4130 cast steel A5.23 : F9P6-EF3-F3-H4 26304-A : S 62 4 FB S3Ni1Mo H4 SAW
BÖHLER FOX NiMo Drilling Equipment 4130 cast steel A5.5 : E10018-D2 18275-A: E 62 4 Mn1NiMo B 4 2 H5 SMAW
diamondspark 620 MC Drilling Equipment 4130 cast steel A5.28 : E100C-GH4 18276-A : T62 4 Z M M 1 H5 MCAW
Union I NiMo 1-IG Drilling Equipment 4130 cast steel A5.28 : ER90S-G 16834 : G Mn3Ni1Mo GMAW
Union S 3 NiMo 1 + UV 420 TTR Drilling Equipment 4130 cast steel A5.23 : F9P8-EF3-F3-N 26304-A : S 55 4 FB S3Ni1Mo H5 SAW
Union S 3 NiMo 1 + UV 420 TTR-C Drilling Equipment 4130 cast steel A5.23 : F9P6-EF3-F3-H4 26304-A : S 62 4 FB S3Ni1Mo H4 SAW
UTP Robotic 601 Drilling Equipment Hardbanding - 14700 : T Fe 8 MCAW
UTP 6222Mo Drilling Equipment Nickel alloy type 625 5.11 ENiCrMo-3 14172 : E Ni 6625 (NiCr22Mo9Nb) SMAW
UTP A 6222Mo Drilling Equipment Nickel alloy type 625 A5.14 : ERNiMoCr-3 18274 : S Ni 6625 (NiCr22Mo9Nb) GMAW
UTP A 6222Mo-3 Drilling Equipment Nickel alloy type 625 A5.14 : ERNiMoCr-3 18274 : S Ni 6625 (NiCr22Mo9Nb) GTAW
UTP UP 6222 Mo + RECORD NiCrW412 Drilling Equipment Nickel alloy type 625 A5.14 : ERNiMoCr-3 18274 : S Ni 6625 (NiCr22Mo9Nb) SAW
Soudotape 625 + RECORD EST625-1 Drilling Equipment Nickel alloy type 625 5.14 ERNiMoCr-3 - ESW
Böhler FOX EV50 Hull Construction ABS A/D/EH36 A5. 1 : E 7018-1 H4R 2560-A : E 42 5 B 4 2 H5 SMAW
BÖHLER FOX EV 62 Hull Construction ABS FH36 A5.5 : E8018-G 2560 : E 50 6 Mn1Ni B 4 2 H5 SMAW
diamondspark 46 RC (C1) Hull Construction ABS A/D/EH36 A5.20 : E71T-1C/T-9C H4 17632-A : T46 3 P C 1 H5 FCAW
diamondspark 44 RC-SR (C1) Hull Construction ABS A/D/EH36 A5.20 : E71T-1C/T-9C/T-12C JH4 17632-A : T42 5 P C1 1 H5 FCAW
diamondspark 54 MC Hull Construction ABS A/D/EH36 A5.18 : E70C-6M H4 17632-A : T46 6 M M21 1 H5 / T42 5 M C1 1 H5 MCAW
diamondspark Ni1 RC (C1) Hull Construction ABS FH36 A5.29 : E81T1-Ni1C-JH4 17632-A : T46 4 1Ni P C 1 H5 FCAW
diamondspark 52 BC Hull Construction ABS FH36 A5.20 : E70T-5M JH4 / E70T-5C JH4 17631-A : T46 4 B M21 3 H5 / T42 4 B C1 3 H5 FCAW
diamondspark 53 RC Hull Construction ABS A/D/EH40 A5.20 : E71T1M/T-9M/T-12M JH4 / E71T1C/T-9C/T-12C H4 17632-A : T46 5 P M21 1 H5 / T42 2 P C1 1 H5 FCAW
Böhler EMK6 Hull Construction ABS A/D/EH36 A5.18 : ER70S-6 14341 : G 42 4 M21 3Si1 GMAW
Böhler EMK8 Hull Construction ABS A/D/EH36 A5.18 : ER70S-6 14341 : G 46 4 M21 4Si1 GMAW
Union S 2 + UV 400 Hull Construction ABS A/D/EH36 A5.17 : F7A4-EM12 14171-A : S 38 4 AB S2 H5 SAW
Union S 2 Mo + UV 400 Hull Construction ABS FH36 A5.23 : F8A4-EA2-A2 14171-A : S 46 4 AB S2Mo H5 SAW
BÖHLER FOX EV 62 Mobile Offshore Drilling Units ABS EQ43 A5.5 : E8018-G 2560 : E 50 6 Mn1Ni B 4 2 H5 SMAW
BÖHLER FOX EV 60 Mobile Offshore Drilling Units ABS EQ43 A5.5 : E8018-GC3 H4R 2560-A : E 46 6 1Ni B 4 2 H5 SMAW
Böhler FOX EV65 Mobile Offshore Drilling Units ABS EQ43 A5.5 : E8018-D1 H4R 18275 : E 55 6 1NiMo B 4 2 H5 SMAW
BÖHLER FOX EV 60 Mobile Offshore Drilling Units ABS FQ43 A5.5 : E8018-GC3 H4R 2560-A : E 46 6 1Ni B 4 2 H5 SMAW
BÖHLER FOX EV 62 Mobile Offshore Drilling Units ABS EQ47 A5.5 : E8018-G 2560 : E 50 6 Mn1Ni B 4 2 H5 SMAW
BÖHLER FOX EV 60 Mobile Offshore Drilling Units ABS EQ47 A5.5 : E8018-GC3 H4R 2560-A : E 46 6 1Ni B 4 2 H5 SMAW
Böhler FOX EV65 Mobile Offshore Drilling Units ABS EQ47 A5.5 : E8018-D1 H4R 18275 : E 55 6 1NiMo B 4 2 H5 SMAW
BÖHLER FOX EV 60 Mobile Offshore Drilling Units ABS FQ47 A5.5 : E8018-GC3 H4R 2560-A : E 46 6 1Ni B 4 2 H5 SMAW
Böhler FOX EV70 Mobile Offshore Drilling Units ABS EQ51 A5.5 : E9018-GH4R 18275 : E 55 6 1NiMo B 4 2 H5 SMAW
Böhler FOX EV70 Mobile Offshore Drilling Units ABS FQ51 A5.5 : E9018-GH4R 18275 : E 55 6 1NiMo B 4 2 H5 SMAW
Böhler FOX EV70 Mobile Offshore Drilling Units ABS EQ56 A5.5 : E9018-GH4R 18275 : E 55 6 1NiMo B 4 2 H5 SMAW
Böhler FOX EV75 Mobile Offshore Drilling Units ABS FQ56 18275 : E10018-GH4R A5.5 : E 62 6 Mn2NiCrMo B 4 2 H5 SMAW
Böhler FOX EV75 Mobile Offshore Drilling Units ABS EQ63 18275 : E10018-GH4R A5.5 : E 62 6 Mn2NiCrMo B 4 2 H5 SMAW
Böhler FOX EV85 Mobile Offshore Drilling Units ABS EQ63 18275 : E10018-GH4R A5.5 : E 69 6 Mn2NiCrMo B 4 2 H5 SMAW
Böhler FOX EV85 Mobile Offshore Drilling Units ABS EQ70 18275 : E10018-GH4R A5.5 : E 69 6 Mn2NiCrMo B 4 2 H5 SMAW
diamondspark Ni1 RC Mobile Offshore Drilling Units ABS EQ43 A5.29 : E81T1-Ni1M-JH4 17632-A : T50 6 1Ni P M 1 H5 FCAW
diamondspark Ni1 RC-SR Mobile Offshore Drilling Units ABS EQ43 A5.29 : E81T1-Ni1M-JH4 17632-A : T50 6 1Ni P M 1 H5 FCAW
diamondspark Ni1 MC Mobile Offshore Drilling Units ABS EQ43 A5.28 : E80C-Ni1 H4 17632-A : T50 6 1Ni M M 1 H5 MCAW
diamondspark Ni1.5 RC (C1) Mobile Offshore Drilling Units ABS FQ43 A5.29 : E81T1-Ni1M-JH4 17632-A : T50 6 1,5Ni P C 1 H5 FCAW
diamondspark Ni1 RC Mobile Offshore Drilling Units ABS EQ47 A5.29 : E81T1-Ni1M-JH4 17632-A : T50 6 1Ni P M 1 H5 FCAW
diamondspark Ni1 RC-SR Mobile Offshore Drilling Units ABS EQ47 A5.29 : E81T1-Ni1M-JH4 17632-A : T50 6 1Ni P M 1 H5 FCAW
diamondspark Ni1 MC Mobile Offshore Drilling Units ABS FQ47 A5.28 : E80C-Ni1 H4 17632-A : T50 6 1Ni M M 1 H5 MCAW
diamondspark Ni1 RC (C1) Mobile Offshore Drilling Units ABS FQ47 A5.29 : E81T1-Ni1C-JH4 17632-A : T46 4 1Ni P C 1 H5 FCAW
diamondspark 550 MC Mobile Offshore Drilling Units ABS EQ51 A5.28 : E90-K3H4 18276-A : T55 6 1NiMo M M 1 H5 MCAW
diamondspark 620 RC Mobile Offshore Drilling Units ABS EQ51 A5.29 : E101T1-K2M-JH4 18276-A : T62 4 Mn1,5Ni P M21 1 H5 FCAW
diamondspark 550 MC Mobile Offshore Drilling Units ABS FQ51 A5.28 : E90-K3H4 18276-A : T55 6 1NiMo M M 1 H5 MCAW
diamondspark 550 MC Mobile Offshore Drilling Units ABS EQ56 A5.28 : E90-K3H4 18276-A : T55 6 1NiMo M M 1 H5 MCAW
diamondspark 620 RC Mobile Offshore Drilling Units ABS EQ56 A5.29 : E101T1-K2M-JH4 18276-A : T62 4 Mn1.5Ni P M 1 H5 FCAW
diamondspark 550 MC Mobile Offshore Drilling Units ABS FQ56 A5.28 : E90-K3H4 18276-A : T55 6 1NiMo M M 1 H5 MCAW
diamondspark 700 RC Mobile Offshore Drilling Units ABS EQ63 A5.29 : E111T1-GM-JH4 18276-A : T69 6 Z P M 1 H5 FCAW
diamondspark 700 MC Mobile Offshore Drilling Units ABS EQ63 A5.28 : E110C-K4H4 18276-A : T69 6 Mn2NiCrMo M M 1 H5 MCAW
diamondspark 700 RC Mobile Offshore Drilling Units ABS EQ70 A5.29 : E111T1-GM-JH4 18276-A : T69 6 Z P M 1 H5 FCAW
diamondspark 700 MC Mobile Offshore Drilling Units ABS EQ70 A5.28 : E110C-K4H4 18276-A : T69 6 Mn2NiCrMo M M 1 H5 MCAW
Pipeshield X 80 Mobile Offshore Drilling Units ABS EQ43 5.28 : ER80S-G 14341-A : G 50 6 M21 Z3Ni1 GMAW
Böhler 2,5 Ni-IG Mobile Offshore Drilling Units ABS FQ43 A5.28 : ER80S-Ni 2 14341-A : G 46 8 M21 2Ni2 GMAW
Pipeshield X 80 Mobile Offshore Drilling Units ABS EQ47 5.28 : ER80S-G 14341-A : G 50 6 M21 Z3Ni1 GMAW
Böhler 2,5 Ni-IG Mobile Offshore Drilling Units ABS FQ47 A5.28 : ER80S-Ni 2 14341-A : G 46 8 M21 2Ni2 GMAW
Pipeshield X 90 Mobile Offshore Drilling Units ABS EQ51 A5.28 : ER90S-G 16834 : G55 6 M21 Mn3Ni1Mo GMAW
Union NiMoCr Mobile Offshore Drilling Units ABS EQ56 A5.28 : ER100S-G 16834 : G 69 6 M21 Mn4Ni1,5CrMo GMAW
Union NiCrMo 2,5 - IG Mobile Offshore Drilling Units ABS EQ63 A5.25 : ER110S-G 16834 : G 69 6 M21 Mn3Ni2.5CrMo GMAW
Union S 3 Si + UV 418 TT Mobile Offshore Drilling Units ABS EQ43 A5.17 : F7A8-EH12K 14171-A : S 46 6 FB S3Si SAW
Union S 3 Mo + UV 418 TT Mobile Offshore Drilling Units ABS EQ47 A5.23 : F8A6-EA4-A4 14171-A : S 50 4 FB S3Mo SAW
Union S 2 NiMo 1 + UV 418 TT Mobile Offshore Drilling Units ABS EQ47 A5.23 : F8A10-ENi1-Ni1 14171-A : S 50 6 FB SZ SAW
Union S 2 Ni 2,5 + UV 418 TT Mobile Offshore Drilling Units ABS FQ47 A5.23 : F8A10-EN2-Ni2 14171-A : S 46 8 FB S2Ni2 SAW
Union S 3 NiMo 1 + UV 418 TT Mobile Offshore Drilling Units ABS EQ51 A5.23 :F9A8-EF3-F3 14171-A : S 55 6 FB S3Ni1Mo SAW
Union S 3 NiMoCr + UV 418 TT Mobile Offshore Drilling Units ABS EQ63 A5.23 :F11A6-EG-F6 14171-A : S 69 6 FB SZ3Ni2,5CrMo SAW
Union S 3 NiMoCr + UV 422 TT-LH Mobile Offshore Drilling Units ABS EQ63 A5.23 :F11A10-EG-F6-H4 14171-A : S 69 6 FB SZ3Ni2,5CrMo H4 SAW
diamondspark S 700 HP - UV 422 TT-LH Mobile Offshore Drilling Units ABS EQ63 A5.23 : F11A10-ECF5-F5 H4/ F11P6-ECF5-F5 HS 69 6 FB TZ H44 26304-A : S 69 6 FB TZ H4 SAW_FCW
diamondspark S 770 - UV 422 TT-LH Mobile Offshore Drilling Units ABS EQ70 A5.23 : F12A6-ECF5-H4 26304-A : S 69 5 FB TZ H4 SAW_FCW
Böhler Fox EAS2-A Top Side processing and Subsea Hardware 308L A5.4 : E308L-17 3581-A : E 19 9 L R 3 2 SMAW
Böhler Fox EAS2 Top Side processing and Subsea Hardware 308L A5.4 : E308L-15 3581-A : E 19 9 L B 2 2 SMAW
Böhler CN 23/12-A Top Side processing and Subsea Hardware 309L A5.4 : E309L-17 3581-A : E 23 12 LR 3 2 SMAW
BÖHLER FOX EAS 4- M Top Side processing and Subsea Hardware 316L A5.4 : E316L-15 3581-A : E 19 12 3 L B 2 2 SMAW
Böhler FOX EAS4M-A Top Side processing and Subsea Hardware 316L A5.4 : E316L-17 3581-A : E 19 12 3L R 3 2 SMAW
Böhler FOX SAS 2 Top Side processing and Subsea Hardware 347.0 A5.4 : E347-15 3581-A : E 19 9 Nb B 2 2 SMAW
Böhler FOX SAS 2 A Top Side processing and Subsea Hardware 347.0 A5.4 : E347-17 3581-A : E 19 9 Nb R 3 2 SMAW
FOC 22/9 N-B Top Side processing and Subsea Hardware Duplex A5.4 : E2209-15 3581-A : E 22 9 3 N L B 2 2 SMAW
FOX CN 22/9 N Top Side processing and Subsea Hardware Duplex A5.4 : E2209-17 3581-A : E 22 9 3 N L R 3 2 SMAW
Thermanit 25/09 CuT Top Side processing and Subsea Hardware Super Duplex A5.4 : E2595-15 3581-A : E 25 9 4 N L B 2 2 SMAW
UTP 387 Top Side processing and Subsea Hardware CuNi (70/30) A5.6 : E CuNi 17777 : E Cu 7158 SMAW
FOXcore 308L-T0 Top Side processing and Subsea Hardware 308L A5.22 : E308LT0-4(1) 17633-A : T 19 9 L R M21 (C1) 3 FCAW
FOXcore 308L-T1 Top Side processing and Subsea Hardware 308L A5.22 : E308LT1-4(1) 17633-A : T 19 9 L P M21 (C1) 1 FCAW
FOXcore 309L-T0 Top Side processing and Subsea Hardware 309L A5.22 : E309LT0-4(1) 17633-A : T 23 12 L R M21 (C1) 3 FCAW
FOXcore 309L-T1 Top Side processing and Subsea Hardware 309L A5.22 : E309LT1-4(1) 17633-A : T 23 12 L P M21 (C1) 1 FCAW
FOXcore 316L-T0 Top Side processing and Subsea Hardware 316L A5.22 : E316LT0-4 (1) 17633-A : T 19 12 3 L R M21 (C1) 3 FCAW
FOXcore 316L-T1 Top Side processing and Subsea Hardware 316L A5.22 : E316LT1-4 (1) 17633-A : T 19 12 3 L P M21 (C1) 1 FCAW
FOXcore 2209-T0 Top Side processing and Subsea Hardware Duplex A5.22 : E2209T0-4 (1) 17633-A : T 19 12 3 L P M21 (C1) 1 FCAW
FOXcore 2209-T1 Top Side processing and Subsea Hardware Duplex A5.22 : E2209T1-4 (1) 17633-A : T 22 9 3 N L P M21 (C1) 1 FCAW
FOXcore 2594-T1 Top Side processing and Subsea Hardware Super Duplex A5.22 : E2594T1-4 (1) 17633-A : T 25 9 4 N L P M21(C1) 2 FCAW
FOXcore 625-T1 Top Side processing and Subsea Hardware 625.0 A5.34 : ENiCrMo3T1-4 12153 : T Ni 6625 P M21 2 FCAW
Thermanit JE-308L Top Side processing and Subsea Hardware 308L A5.9 : ER308L 14343-A : W 19 9 L GTAW
Thermanit JE-308L Si Top Side processing and Subsea Hardware 308L A5.9 : ER308LSi 14343-A : G 19 9 L Si GMAW
Thermanit 309L Top Side processing and Subsea Hardware 309L A5.9 : ER309L 14343-A : W 23 12 L GTAW
Thermanit 309L Si Top Side processing and Subsea Hardware 309L A5.9 : ER309LSi 14343-A : G 23 12 L Si GMAW
Thermanit GE-316L Top Side processing and Subsea Hardware 316L A5.9 : ER316L 14343-A : W 19 12 3 L GTAW
Thermanit GE-316L Si Top Side processing and Subsea Hardware 316L A5.9 : ER316LSi 14343-A : G 19 12 3 L Si GMAW
Thermanit H-347 Top Side processing and Subsea Hardware 347.0 A5.9 : ER347 14343-A : W 19 9 Nb GTAW
Thermanit H-347 Si Top Side processing and Subsea Hardware 347.0 A5.9 : ER347Si 14343-A : G 19 9 Nb Si GMAW
Thermanit 22/09 Top Side processing and Subsea Hardware Duplex A5.9 : ER2209 14343-A : G 22 9 3 N L GMAW/GTAW
Thermanit 25/09 CuT Top Side processing and Subsea Hardware SuperDuplex A5.9 : ER2594 14343-A : G 25 9 4 N L GMAW/GTAW
Böhler CuNi30 Fe-IG Top Side processing and Subsea Hardware CuNi (70/30) A5.7 : ER CuNi 14640: S Cu 7158 (CuNi30Mn1FeTi) GMAW/GTAW
