voestalpine Böhler Welding

The Böhler Welding MIG/MAG wire feeders are extremely compact, easily portable and robustly made. They are specially designed to satisfy the needs of on-site welding and shipbuilding. The entire welding process is controlled by means of a digital control panel that offers simple adjustments and maximum flexibility. The units are equipped with a gas flow regulator, and gas flow rate can be viewed easily on the unit’s display.

Customers like it because:

  • The spools are protected inside a compartment fully lined with insulating material
  • Frame and body are made from tough, top-quality materials to withstand harsh operating environments
  • Important controls are well protected against dust and accidental knocks

WF NX 230

 WF NX 230 Classic Smart SteelDrive
Power 90 W  90 W 120 W
User panel LED LED LED
Wire speed 0.5 - 22.0 m/min 0.5 - 22.0 m/min 0.5 - 22.0 m/min
Wire spool diameter 200 mm 200 mm 200 mm
N° rolls 2  2  2
Ø Wire diameter 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6)
Ø Fluxcoredwire 0.9 - 2.4 mm 1.2 - 2.4 mm 0.9 - 2.4 mm
Ø Aluminumwire 0.8 - 1.6 mm  0.9 - 1.6 mm  0.9 - 1.6 mm
Dimensions 470x140x340 mm 470x140x340 mm 470x140x340 mm
Weight 8.8 kg 8.8 kg 8.8 kg

WF NX 330

 WF NX 330 Classic Smart SteelDrive
Power 90 W  90 W 120 W
User Panel LED LED LCD Colour
Wire speed 0.5 - 22.0 m/min 0.5 - 22.0 m/min 0.5 - 25.0 m/min
Wire spool diameter 200/300 mm 200/300 mm 200/300 mm
N° rolls 4 4  4
Ø Wire diameter 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6)
Ø Fluxcoredwire 0.9 - 1.6 mm 0.9 - 1.2 mm 0.9 - 1.6 mm
Ø Aluminumwire 0.8 - 1.6 mm  0.8 - 1.6 mm  0.8 - 1.6 mm
Dimensions 660x280x390 mm 660x280x390 mm 660x280x390 mm
Weight 13.0 kg 13.0 kg 13.0 kg

WF NX 430

 WF NX 430 Classic Smart Steel
Power 90 W  90 W 120 W
User panel LED LED LCD Colour
Wire speed 0.5 - 22.0 m/min 0.5 - 22.0 m/min 0.5 - 25.0 m/min
Wire spool diameter 200/300 mm 200/300 mm 200/300 mm
N° rolls 4 4 4
Ø Wire diameter 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6)
Ø Fluxcoredwire 0.9  - 1.6 mm 0.9  - 1.6 mm 0.9 - 1.6 mm
Ø Aluminumwire 0.8 - 1.6 mm  0.8 - 1.6 mm  0.8 - 1.6 mm
Dimensions 660x250x460 mm 660x250x460 mm 660x250x460 mm
Weight 19.0 kg 19.0 kg 19.0 kg

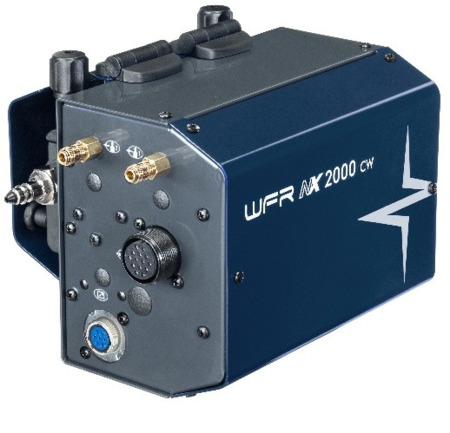

WF NX 2000

WF NX 2000 Classic
Power 120 W
Userl panel LED
Wire speed 0.5 - 22.0 m/min
Wire spool diameter 200 mm
N° rolls 2
Ø Wire diameter 1.0 - 1.2 mm (opz. 0.6-1.6)
Ø Fluxcoredwire 0.9 - 1.6 mm
Ø Aluminumwire  0.8 - 1.6 mm
Dimensions  470x170x430 mm
Weight 8.8 kg

WF NX 3000

WF NX 3000 Classic Smart
Power 120 W 120 W
User panel LED LCD Colour
Wire speed 0.5 - 22.0 m/min 0.5 - 22.0 m/min
Wire spool diameter 200/300 mm 200/300 mm
N° rolls 4 4
Ø Wire diameter 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6)
Ø Fluxcoredwire 0.9 - 1.6 mm 0.9 - 1.6 mm
Ø Aluminumwire  0.8 - 1.6 mm  0.8 - 1.6 mm
Dimensions 660x280x390 mm 660x280x390 mm
Weight 13.0 kg 13.0 kg

WF NX 4000

WF NX 4000 Classic Smart
Power 120 W 120 W
User panel LED LCD Colour
Wire speed 0.5 - 22.0 m/min 0.5 - 22.0 m/min
Wire spool diameter 200/300 mm 200/300 mm
N° rolls 2 (4 opz) 2 (4 opz)
Ø Wire diameter 1.0 - 1.2 mm (opz. 0.6-1.6) 1.0 - 1.2 mm (opz. 0.6-1.6)
Ø Fluxcoredwire 1.2 - 2.4 mm 1.2 - 2.4 mm
Ø Aluminumwire  0.8 - 1.6 mm  0.8 - 1.6 mm
Dimensions 640x250x460 mm 640x250x460 mm
Weight 19.0 kg 19.0 kg
