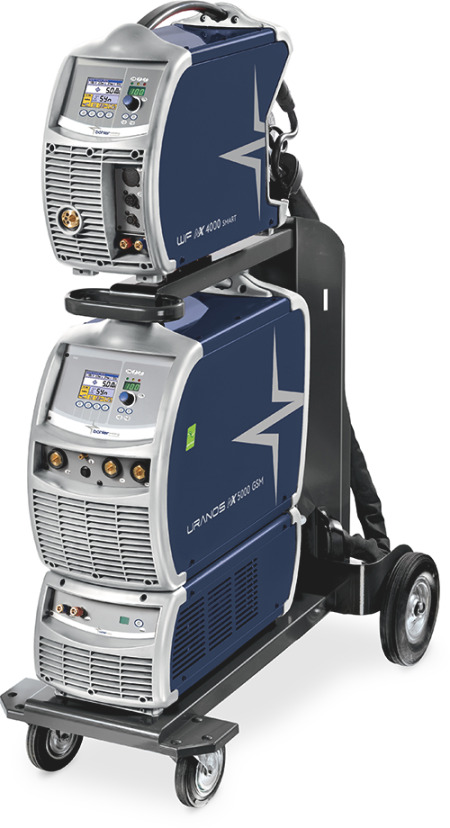

URANOS NX 5000 GSM

The URANOS 5000 GSM is a power source which combines the high technology of digital control with great simplicity of use to give accurate high quality welding as a result. It is capable of meeting the welding requirements of any field of application. The wealth of technological functions and solutions make it a valued product in all application areas where accurate and high quality welding is required.

  • MIG/MAG - Pulsed MIG/MAG _ TIG DC HF - MMA
  • Three-phase supply 3x230V – 3x400V
  • greenWave® inverter technology
  • Wide option of wire feeder models
  • 9 proprietary welding processes by Böhler Welding
  • Welding Programs
  • 5" Color LCD user panel
  • 500A@50% (40 °C)
  • 38.0 kg
  • General
    Welding processs MIG/MAG - PULSED MIG/MAG - MMA - TIG DC HF - TIG DC Lift
    Materials Carbon steels - Stainless Steels - Duplex Steels  Aluminum - Copper - Hardfacing
    Dimensions

    690x290x510mm

    Weight 38.0 kg
    Power supply
    Voltage (50/60 Hz) 3x400/230V±15%
    Maximum input power 22.9/23.9 kVA
    Maximum input current 33.0/61.5 A
    Power factor PF 0.95
    Efficiency 88%
    Slow blow line fuse 30/63 A
    Open circuit voltage 73Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 4x4mm2 - 5 m
    Welding
    Adjustment range 3-500A
    Duty cycle
    MIG/MAG - 40 °C
    50% - 500A
    60% - 470A
    100% - 420A
    Duty cycle
    MIG/MAG - 25 °C
    100% - 470A
    Ø Wire diameter (WF 4000) 1.0-1.2 mm (opz 0.6-1.6)
    Ø Fluxcoredwire (WF 4000) 1.2 - 2.4 mm
    Ø Aluminumwire (WF 4000) 0.8 -1.6 mm
    Wire speed (WF 4000) 0.5 - 22.0 m/min
    N° rolls (WF 4000)  2 (4 opz)
    Wire spool diameter (WF 3000/ WF 4000) Ø 200/300mm
    Synergic program 80
    Welding program memory location 64
    U/D TIG Torch compatible yes
    Digital Torch compatible yes
    U/D MIG/MAG torch compatible yes
    PUSH PULL torch compatible yes
    Remote Control compatible yes
    RapiDeep 2.0 compatible yes
    QuickPulse 2.0 compatible yes
    EN 1090 program compatible yes
    WeldNet compatible yes
    Standard EasyArc yes
    • Light job shop fabrication
    • Medium-heavy job shop fabrication
    • Building sites
    • Shipyards
    • Plants machinery construction
    • Oil refinery plants construction
    • Machine and apparatus construction
    • Automobile industry
    • Railway industry
    • Nuclear industry
    • Military industry
    • Aeronautics and Aerospace industry
    • Food industry
    • Chemical industry
    • Repair and overhaul
    • Repair and overhaul
    • Workshops
    • Sheet metal working
    • greenWave inverter technology for high energy efficiency and perfect control over all welding phases
    • High power at 100% of duty cycle
    • Heavy duty and enviromental conditions, high service life
    • CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
    • Software based controls can be upgraded as new features become available
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Linear controlled fan on demand
    • Energy-saving inverter technology (built-in P.F.C. - power factor controller)
    • Wire feeder unit (2/4 rolls drive)
    • Wire drive unit fully designed by voestalpine Böhler Welding
    • Full parameters control panel on wire feeder unit
    • Ø 200/300 mm wire spool compatible
    • Full digital and user-friendly LCD graphic display control panel
    • Welding parameters digital display
    • Last job settings auto-storage at switch-off
    • User-defined welding program storage capability (64 free memory locations)
    • Totally programmable user interface
    • Programmable welding operations safety limits
    • Lock-unlock function key protected by password
    • Control of several welding units over Ethernet
    • Totally welding process remote programming and management by PC network
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Synergic setting for optimal stick welding with all types of electrodes
    • Precise arc striking and high stability arc
    • 2/4 step operating mode
    • Arc dynamic adjustment
    • Perfect arc ignition (soft start - motor slope)
    • Burn-back and droplet detachment correction
    • Crater filler operating mode
    • Synergic operations from databank (80 pre-set programs)
    • Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment
    • Spot welding mode
    • Intermittent welding mode
    • Bilevel MIG/MAG
    • Digital TIG torch compatible
    • Smart slope control
    • Euro adaptor - U/D MIG/MAG torch compatible
    • Digital MIG/MAG torch compatible
    • Push-pull torch device
    • Remote control compatible
    • WU cooling unit compatible
    • Controlled cooling operations
