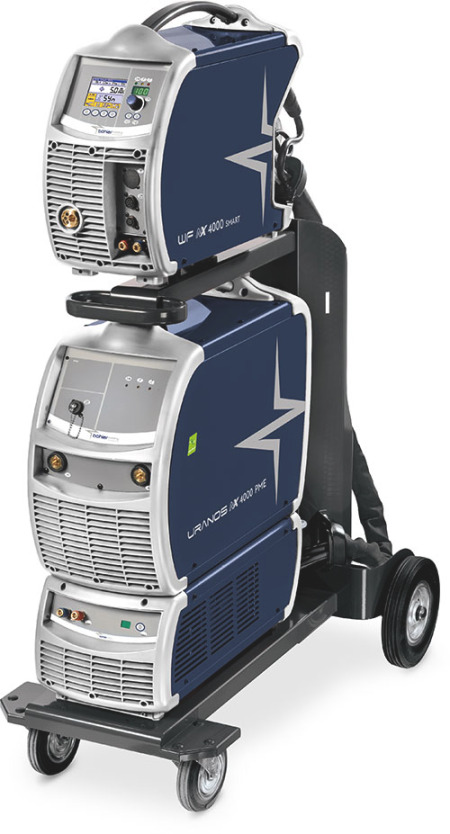

With features such as a full colour display with a highly intuitive user interface, an intelligent power system that ensures the most precise welding arc, or the ability to tailor NX welding machines to specific welding tasks with myNX, Böhler Welding unites the competence and experience of 40 years in welding equipment development.

  • MIG/MAG - Pulsed MIG/MAG  -  TIG DC Lift - MMA
  • Three-phase supply 3x230V – 3x400V
  • greenWave® inverter technology
  • Wide option of wire feeder models
  • 5 proprietary welding processes by Böhler Welding
  • 3.5" Color LCD user panel
  • 400A@60% (40 °C)
  • 36.2 Kg
  • General
    Welding processs MIG/MAG - PULSED MIG/MAG - MMA - TIG DC Lift
    Materials Carbon steels - Stainless Steels - Duplex Steels - Aluminum - Copper - Hardfacing
    Dimensions 620x290x510mm
    Weight  36.2 kg
    Power supply
    Voltage (50/60 Hz) 3x400/230V±15%
    Maximum input power 16.1kVA
    Maximum input current 24.4 A
    Power factor PF 0.95
    Efficiency 88%
    Slow blow line fuse 25/45 A
    Open circuit voltage 73Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 4x4mm2 - 5 m
    Adjustment range 3-400A
    Duty cycle
    MIG/MAG - 40 °C
    60% - 400A
    100% - 360A
    Duty cycle
    MIG/MAG - 25 °C
    100% - 400A
    Ø Wire diameter 1.0-1.2 mm (opz 0.6-1.6)
    Ø Fluxcoredwire 0.9 - 1.6 mm
    Ø Aluminumwire  0.8 -1.6 mm
    Wire speed  0.5 - 22.0 m/min
    N° rolls   4 (2 WF NX 2000)
    Wire spool diameter (WF 3000/ WF 4000) Ø 200/300mm (200 mm WF NX 2000)
    Remote Control compatible yes
    Welding programs 600 (max.)
    Personalized programs 240
    U/D MIG/MAG torch compatible yes
    PUSH PULL torch compatible yes
    • Light job shop fabrication
    • Building sites
    • Shipyards
    • Plants machinery construction
    • Oil refi nery plants construction
    • Machine and apparatus construction
    • Automobile industry
    • Railway industry
    • Nuclear industry
    • Military industry
    • Aeronautics and Aerospace industry
    • Food industry
    • Chemical industry
    • Repair and overhaul
    • Repair and overhaul
    • Workshops
    • Sheet metal working
    • greenWave inverter technology for high energy efficiency and perfect control over all welding phases
    • High power at 100% of duty cycle
    • Heavy duty and enviromental conditions, high service life
    • CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
    • Software based controls can be upgraded as new features become available
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Linear controlled fan on demand
    • Energy-saving inverter technology (built-in P.F.C. - power factor controller)
    • Wire feeder unit (2/4 rolls drive)
    • Wire drive unit fully designed by voestalpine Böhler Welding
    • Full parameters control panel on wire feeder unit
    • Ø 200/300 mm wire spool compatible
    • Full digital and user-friendly LCD graphic display control panel
    • Welding parameters digital display
    • Last job settings auto-storage at switch-off
    • User-defined welding program storage capability (64 free memory locations)
    • Totally programmable user interface
    • Programmable welding operations safety limits
    • Lock-unlock function key protected by password
    • Control of several welding units over Ethernet
    • Totally welding process remote programming and management by PC network
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Synergic setting for optimal stick welding with all types of electrodes
    • Reduced electromagnetic interference with lift start TIG welding
    • 2/4 step operating mode
    • Arc dynamic adjustment
    • Perfect arc ignition (soft start - motor slope)
    • Burn-back and droplet detachment correction
    • Crater filler operating mode
    • Synergic operations from databank (80 pre-set programs)
    • Wire speed (0,5-22,0 m/min), amperage and piece thickness adjustment
    • Spot welding mode
    • Intermittent welding mode
    • Bilevel MIG/MAG
    • Euro adaptor - U/D MIG/MAG torch compatible
    • Digital MIG/MAG torch compatible
    • Push-pull torch device
    • Remote control compatible
    • WU cooling unit compatible
    • Controlled cooling operations
