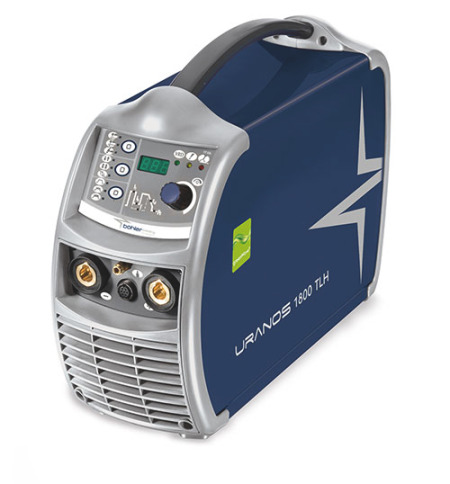

URANOS 1800 TLH is an inverter power source for TIG DC HF and electrode (MMA) welding. Due to the mulitude of functions and technical solutions, this product is designed for high quality and precise welding applications such as in the case of stainless steel.

  • Single-phase 1x230V - 1x115V
  • greenWave® inverter technology
  • Compact and lightweight
  • 3 proprietary welding processes by Böhler Welding
  • 180A@35% (40 °C)
  • 9.4 kg
  • General
    Welding processs TIG DC HF - TIG DC Lift - MMA
    Materials Carbon steels - Stainless Steels - Cast irons - Copper - Titanium
    Dimensions 410x150x330mm
    Weight 9.4 kg
    Power supply
    Voltage (50/60 Hz) 1x230/115V±15%
    Maximum input power 24.0/28.7 A
    Maximum input current 24.0/28.7 A
    Power factor PF 1
    Efficiency 85%
    Slow blow line fuse 16/20 A
    Open circuit voltage 80 / 106 Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 3x2.5mm2 - 2 m
    Adjustment range 3-180A
    Duty cycle
    TIG - 40 °C
    35% - 180A
    60% - 160A
    100% - 140A
    Duty cycle
    TIG - 25 °C
    60% - 110A
    100% - 95A
    U/D TIG Torch compatible
    Digital Torch compatible
    Remote control compatible
    • Light job shop fabrication
    • Building sites
    • Shipyards
    • Cycle industry
    • Nuclear industry
    • Food industry
    • Chemical industry
    • Repair and overhaul
    • Building
    • Plumbing
    • greenWave inverter technology for high energy efficiency and perfect control over all welding phases
    • Heavy duty and enviromental conditions, high service life
    • CANBUS digital communication protocol system (very high speed and high reliability digital communication)
    • Software based controls can be upgraded as new features become available
    • Reduced dimensions and compact construction
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Linear controlled fan on demand
    • Energy-saving inverter technology (built-in P.F.C. - power factor controller)
    • Excellent performances also with long power supply extension cables
    • Full digital and user-friendly control panel
    • Welding parameters digital display
    • Last job settings auto-storage at switch-off
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • 2/4 step operating mode
    • Bi-Level operating mode
    • Spot welding mode
    • Pulsed and fast pulsed operating mode (2500Hz)
    • Synergic post-flow adjustment
    • Easy joining
    • Manual restart or downslope stop functions
    • Current socket (panel) 50/70mm²
    • Predisposition for TIG U/D torch
    • Remote control compatible
