These are extremely compact welding machines with an innovative design and ready for use immediately. They are the ideal solution not only for professional welders but also for apprentices who want to obtain quality welding with extreme ease.

  • Single-phase 1x230V
  • Inverter technology
  • Lightweight and professional
  • Everything you need for TIG in a suitcase
  • 3 proprietary welding processes by Böhler Welding
  • 150A@30% (40 °C)
  • 3.9 kg
  • General
    Welding processs TIG DC HF - TIG DC Lift - MMA
    Materials Carbon steels - Stainless Steels - Cast irons - Copper - Titanium
    Dimensions 260x115x250mm
    Weight  3.9 kg
    Power supply
    Voltage (50/60 Hz) 1x230V±15%
    Maximum input power 6.6 kVA
    Maximum input current 28.7A
    Efficiency 87%
    Slow blow line fuse 16A
    Open circuit voltage 85Vdc
    IP protection rate  IP23S
    Insulation class H
    Power supply cable 3x1.5mm2 - 2 m
    Adjustment range 5A-150A
    Duty cycle
    TIG - 40 °C

    30% - 150A
    60% - 125A
    100% - 110A

    Analog TIG torch compatible yes

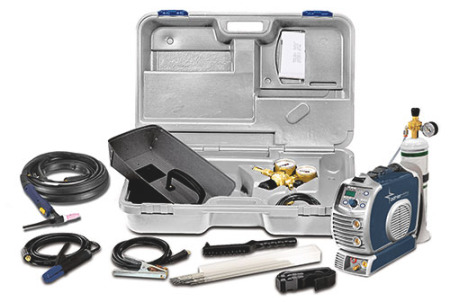

    Suitcase including

    URANOS 1500 TLH / Stick electrode holder / Earth cable / Wire brush and de-slagging hammer / Hand-shield / Extension carrying strap / 20 pcs electrode pack / Gas hose kit / Gas cylinder and cylinder holder / pressure limiter / TIG torch ST 1500S

    • Light job shop fabrication
    • Building sites
    • Cycle industry
    • Food industry
    • Repair and overhaul
    • Vehicle bodywork repair
    • Building
    • Plumbing
    • Installers
    • Stand construction workers
    • Electricians
    • Tinsmiths
    • Advanced inverter technology power source for superior arc performance
    • Heavy duty and enviromental conditions, high service life
    • Reduced dimensions and compact construction
    • High temperature, shockproof, abrasion resistant plastic case
    • Air flow ducting and fully encapsulated PC board to avoid dust contamination
    • Linear controlled fan on demand
    • Excellent performances also with long power supply extension cables
    • Full digital and user-friendly control panel
    • Welding parameters digital display
    • Last job settings auto-storage at switch-off
    • Ideal for stick welding with multiple types of popular electrodes
    • Built-in adjustable arc control features (hot start, arc force, antisticking)
    • Synergic setting for optimal stick welding with all types of electrodes
    • Manual restart or downslope stop functions
    • 2/4 step operating mode
    • Bi-Level operating mode
    • Spot welding mode
    • Pulsed and fast pulsed operating mode (500Hz)
    • Synergic post-fl ow adjustment
    • Current socket (panel) 25mm²
    • Analog TIG torch compatible
