Collaborative Robots

Robot-Supported Welding at its best: CO-BRO®, a perfectly coordinated unit of robot arm, welding system and operating panel.

Böhler Welding’s CO-BRO® is the opportunity to enter in the collaborative robot (Cobot) welding which drastically simplifies all installation and start-up operations (programming, masking, training) and at the same time ensures high productivity even with low volume productions.



Your benefits:

  • Plug and play automation perfectly intergrated welding and movements
  • Resulting in great time saving in programming of the COBOT
  • Ideal for high productivity and efficiency

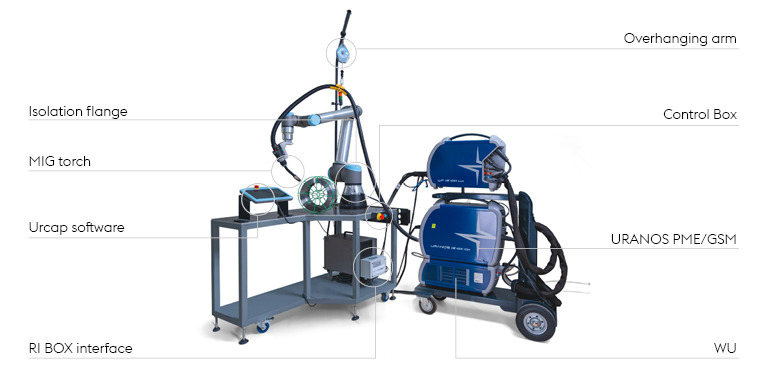

Overview CO-BRO® Components for MIG/MAG

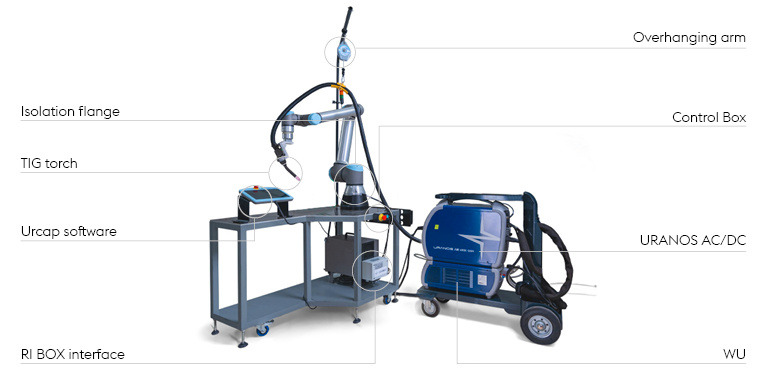

Overview CO-BRO® Components for TIG AC/DC

Collaborative Welding Equipment

The premium welding machines of the URANOS series are equipped with numerous technical features. Böhler Welding CO-BRO® offers ready to use solutions for MIG/MAG and TIG solutions using inverters of the URANOS product line.

What distinguishes URANOS welding machines:

  • Excellent wire feeding properties due to innovative wire feed concept
  • Connection to automation systems and robot systems possible
  • Digital display for easy process selection
  • Cutting edge digital inverter technology
  • Cost-saving energy efficiency (even in demanding continuous operation)
More information

    CO-BRO GUARD

    The CO-BRO GUARDTM is a revolutionary fully enclosed collaborative robotic cell.

    Flexibility, easiness of use, accessibility, best welding performance and max HSE protection set CO-BRO GUARDTM apart from anything else you in the market.

    CO-BRO GUARDTM is a new high-end technology equipment for collaborative robotic MIG-MAG welding. This revolutionary system is based on a fully enclosed cell featuring a comprehensive and user-friendly software interface integrating the Böhler Welding URANOS NX equipment, the collaborative robotic arm and all the accessories. The collaborative robotic concept, full accessibility, easy handling, extremely easy programming, and advanced fume-extraction advanced solutions combine to make the real difference.

    Experience following advantages:

    • Intuitive user interface for easy programming of the robotic arm  – covering the lack of skilled welders and high-level operators ensuring high quality and repeatability at the same time.
    • Delivering the perfect weld seam in combination with our welding processes and the Böhler arc concept
    • The design allows easy handling, full flexibility and perfect integration into the production workflow – and it's also movable with a manual fork-lift
    • Plug-and-play welding station thanks to a central power and utility supply
    • The exclusive GUARD enclosure completely separating the welding from anything else in the workshop.
    • Full access to all operations also while welding thanks to multiple doors and table divider.
    • For fume extraction, ready to be integrated into your low-vacuum system or extraction through a built-in high-vacuum system (optional).

    Main Benefits

    • Maximum ease of use and flexibility when programming, thanks to the touchscreen pad and the movable 4-button wireless keypad, governing both robotics and welding process.

    • Excellent welding performances

      More than just a robot – it brings together the Böhler Welding expertise and the perfect integration of the collaborative robotics with the welding process

      • Special processes enabled
      • Böhler Arc enabled

    • All in one unit

      • Movable with a manual fork lift
      • Opening all sides and from the top
      • Working area can be split in 2, allowing manual operations and collaborative welding and the same time
      • No messy and unsafe wiring and hoses

    • GUARD enclosure completely separating the welding from anything else in the workshop.

      GUARD fumes concept:

      • High-vacuum integrated (optional)
      • Low-vacuum ready

    The CO-BRO GUARD TM is the ideal solution in any workshop where high performance is required even with low-volume production, thanks to simple programming, the collaborative approach which ensures an easier interaction between robot and human, the very simple masking and parts positioning. Operators with just standard ability level can operate CO-BRO GUARD TM and few hours of training are sufficient to completely master the system. Plug  the utilities, place and move this turn-key collaborative robotic cell anywhere in the workshop,  maximizing the efficiency of the production flow. The exclusive GUARD enclosure ensures the maximum HSE protection currently available.

    Technical Data



    Working area LxWxH [mm]

    2.000x1.000x1.400 or

    2x1.000x1000x1.400 (with table divider)

    Max. weight of the parts [kg]

    2.000

    Welding Equipment

    URANOS NX 5000 PME

    Collaborative Robot

    Universal Robot UR10e

    Fume extraction systems

    High-vacuum (extracting torch) system integrated (optional)

    Low-vacuum ready

    Supply Voltage

    220V AC – 50 Hz  - 1000W – collaborative robot

    220V AC 50Hz – 200W – controls

    3x400/230V±15%  50Hz 23.6/24.5 kVA welding EQ

    Other utilities



    Compressed air ready

    Additional screen for weldNet® Management system

    Dimension LxWxH [mm] closed

    2.764x1.792(2.436)x2.460

    Dimension LxWxH [mm] open

    5.520x3.530x2.460

    Weight [kg]

    1.600
