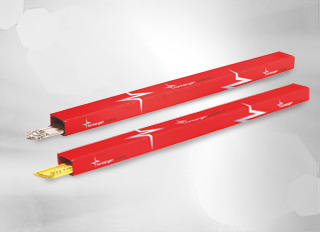

Brazing Rods (Blank & Flux Coated)
Brazing Rods (Blank & Flux Coated) by Fontargen Brazing with environment friendly coating. Available in different diameters, and coating thicknesses, as well as different shapes and finishing.
Our Fontargen Brazing blank and flux-coated brazing rods are perfectly suitable and highly efficient for your brazing application. Flux-coated rods are available in different diameters and coating thicknesses. Blank rods are available in different shapes (square, round, flat) with matt or shiny finishing. Copper-phosphorus blank rods can also be supplied for narrow gaps and/or large surfaces (FreeFlow). EasyForm-quality is best suited for bigger gaps and/or modelling brazing jobs.
Benefits
- Perfect flowing properties for excellent brazing results
- Cadmium and lead-free products
Additional green thinking benefits with our flux coatings
- Boric acid free and borax free
- Partly flexible
- Safe for transportation
- No spalling of the coating
- Wider range of fluxing activity
- Excellent flowing property
- Easy removal of flux residues
- No bothersome fumes or odours while brazing
4 Standard Coating Thicknesses
Examples of our coating thicknesses based on our alloy A320 (ISO 17672-Ag145/ AWS-Bag-36)
| Product Name | Coating |
|---|---|
| AF XXX | Standard coating |
| AF XXX D | Thin coating |
| AF XXX XD | Extra thin coating |
| AF XXX XL | Thick coating |
Brazing Filler Metals
Ag Brazing Rods
| Product Name | DIN 8513 | AWS | EN 1044 | ISO 17672/ DIN 1707-100 | Melting range | Flow properties | Characteristics | Applications |
|---|---|---|---|---|---|---|---|---|
| A 303 | L-AG 205n | AG 206 | Ag 220 | 690 - 810 | +++ | 20% Ag, High ductility, high sculptability, very good gap filling capacity, good corrosion resistance, Matching color when soldering brass, (1) (2) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys | |
| A 311 | L-AG44 | AG 203 | Ag 244 | 675 - 735 | ++++ | 44% Ag, Ternary alloy, Suitable for the use in drink water, High ductility, very good gap filling capacity, good corrision resistance, Suitable for the use in sea water, Matching color when soldering brass, (1) (2) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, Hard metal, for large gap widths, Electrical engineering, brass soldering | |
| A 314 | L-Ag55Sn | AG 103 | Ag 155 | 630 - 660 | ++++++ | 55% Ag, Universal solder, High ductility, Best possible color consistency when soldeirng stainless steel, good corrosion resistance, Suitable for the use in sea water, good color consistency with CrNi, (1) (3) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, White goods, Plate heat exchanges, Food and sanitary facilities, Parts made of CrNi where the temperature should be kept low (no tarnish) | |
| A 347 | L-Ag56Sn | BAg-7 | AG 102 | Ag 156 | 620 - 655 | ++++++ | 56% Ag, Universal solder, High ductility, Best possible color consistency when soldering stainless steel, good corrosion resistance, Suitable for the use in sea water, good color consistency with CrNi, (1) (3) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, White goods, Plate heat exchanges, Food and sanitary facilities, Parts made of CrNi where the temperature should be kept low (no tarnish) |
| A 319 | L-Ag34Sn | AG 106 | Ag 134 | 630 - 730 | ++++ | 34% Ag, High profitability, Versatile, Very good soldering properties, good corrosion resistance, Suitable for the use in drink water, (1) (3) | Alloyed and non-alloyed steel, Ni alloys, Malleable cast iron, Cu alloys, White goods, Food and sanitary facilities |
| A 303 | L-AG 205n | AG 206 | Ag 220 | 690 - 810 | +++ | 20% Ag, High ductility, high sculptability, very good gap filling capacity, good corrosion resistance, Matching color when soldering brass, (1) (2) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys | |
| A 311 | L-AG44 | AG 203 | Ag 244 | 675 - 735 | ++++ | 44% Ag, Ternary alloy, Suitable for the use in drink water, High ductility, very good gap filling capacity, good corrision resistance, Suitable for the use in sea water, Matching color when soldering brass, (1) (2) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, Hard metal, for large gap widths, Electrical engineering, brass soldering | |
| A 314 | L-Ag55Sn | AG 103 | Ag 155 | 630 - 660 | ++++++ | 55% Ag, Universal solder, High ductility, Best possible color consistency when soldeirng stainless steel, good corrosion resistance, Suitable for the use in sea water, good color consistency with CrNi, (1) (3) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, White goods, Plate heat exchanges, Food and sanitary facilities, Parts made of CrNi where the temperature should be kept low (no tarnish) | |
| A 347 | L-Ag56Sn | BAg-7 | AG 102 | Ag 156 | 620 - 655 | ++++++ | 56% Ag, Universal solder, High ductility, Best possible color consistency when soldering stainless steel, good corrosion resistance, Suitable for the use in sea water, good color consistency with CrNi, (1) (3) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, White goods, Plate heat exchanges, Food and sanitary facilities, Parts made of CrNi where the temperature should be kept low (no tarnish) |
| A 319 | L-Ag34Sn | AG 106 | Ag 134 | 630 - 730 | ++++ | 34% Ag, High profitability, Versatile, Very good soldering properties, good corrosion resistance, Suitable for the use in drink water, (1) (3) | Alloyed and non-alloyed steel, Ni alloys, Malleable cast iron, Cu alloys, White goods, Food and sanitary facilities | |
| A 320 | L-Ag345Sn | BAg-36 | AG 104 | Ag 145 | 640 - 680 | +++++ | 45% Ag, Universal solder, Suitable for the use in drink water, Versatile, good soldering properties, high degree of wetting, Suitable for the use in sea water, High ductility, good corrosion resistance, (1) (3) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, White goods, Plate heat exchanges, Food and sanitary facilities, Parts made of CrNi where the temperature should be kept low (no tarnish) |
| A 326 | L-Ag38Sn | BAg-34 | Ag 138 | 650 - 720 | ++++ | 38% Ag, Versatile, Very good soldering properties, High corrosion resistance, (1) (3) | Alloyed and non-alloyed steel, Ni alloys, Malleable cast iron, Cu alloys, White goods, Food and sanitary facilities | |
| A 330 | L-Ag30 | BAg-20 | AG 204 | Ag 230 | 680 - 765 | ++++ | 30% Ag, High ductility, good corrosion resistance, Almost identical colors when soldering brass, (1) (3) | Alloyed and non-alloyed steel, Malleable cast iron, Ni alloys, Cu alloys, For parts without special stress |
| A 340 | L-Ag40Sn | Bag-28 | AG 105 | Ag 140 | 650 - 710 | +++++ | 40% Ag, Universal solder, Versatile, good soldering properties, high degree of wetting, High ductility, good corrosion resistance, Suitable for the use in sea water, (1) (3) | Alloyed and non-alloyed steel, Ni alloys, Malleable cast iron, Cu alloys, White goods, Plate heat exchanges, Food and sanitary facilities |
| A 333 | Ag 230a | 675 - 790 | ++++ | 30% Ag, Very good alternative with reduced silver content, good mechanical quality values, Very high ductility and tensile strength, (1) (3) | Alloyed and non-alloyed steel, Ni alloys, Malleable cast iron, Cu alloys, Hard metal, White goods, Food and sanitary facilities |
CuP Brazing Rods
| Product Name | DIN 8513 | AWS | EN 1044 | ISO 17672/ DIN 1707-100 | Melting range | Flow properties | Characteristics | Applications |
|---|---|---|---|---|---|---|---|---|
| A 3002 | L-Ag2P | CP 105 | CuP 279 | 645 - 825 | ++ | 2% Ag, Suitable for the use in drink water, Phosphorus content (6,3%), for operating temp. between -60°C and 150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Heat exchanger | |
| A 3002 FreeFlow | L-Ag2P | BCuP-6 | CuP 280 | 645 - 788 | +++ | 2% Ag, Phosphorus content (7,0%), thereby lowering the melding temp. and increased flow properties, Ag-Content tolerance narrower +/-0,2%, for operating temp. between -60°C and + 150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Heat exchanger, Return Bends | |
| A 3005 | L-Ag5P | CP 104 | CuP 281a | 645 - 815 | ++ | 5% Ag, Good electrical conductivity, Phosphorus content (6,0%), for operating temp. between -60°C and +150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Repair work, Modeling work | |
| A 3005 EasyForm | L-Ag5P | BCuP-3 | CuP 281a | 645 - 815 | ++ | 5% Ag, Good electrical conductivity, Phosphorus content (6,0%), for operating temp. between -60°C and +150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Repair work, Modeling work | |
| A 3005 FreeFlow | L-Ag5P | BCuP-7 | CuP 282 | 645 - 771 | +++ | 5% Ag, Good electrical conductivity, Phosphorus content (6,7%), thereby lowering the melting temp. Between -60°C and +150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Industrial brazing |
| A 3002 | L-Ag2P | CP 105 | CuP 279 | 645 - 825 | ++ | 2% Ag, Suitable for the use in drink water, Phosphorus content (6,3%), for operating temp. between -60°C and 150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Heat exchanger | |
| A 3002 FreeFlow | L-Ag2P | BCuP-6 | CuP 280 | 645 - 788 | +++ | 2% Ag, Phosphorus content (7,0%), thereby lowering the melding temp. and increased flow properties, Ag-Content tolerance narrower +/-0,2%, for operating temp. between -60°C and + 150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Heat exchanger, Return Bends | |
| A 3005 | L-Ag5P | CP 104 | CuP 281a | 645 - 815 | ++ | 5% Ag, Good electrical conductivity, Phosphorus content (6,0%), for operating temp. between -60°C and +150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Repair work, Modeling work | |
| A 3005 EasyForm | L-Ag5P | BCuP-3 | CuP 281a | 645 - 815 | ++ | 5% Ag, Good electrical conductivity, Phosphorus content (6,0%), for operating temp. between -60°C and +150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Repair work, Modeling work | |
| A 3005 FreeFlow | L-Ag5P | BCuP-7 | CuP 282 | 645 - 771 | +++ | 5% Ag, Good electrical conductivity, Phosphorus content (6,7%), thereby lowering the melting temp. Between -60°C and +150°C (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Installations exposed to vibration and high pressure, Industrial brazing | |
| A 3015 | L-Ag15P | BCuP-5 | CP 102 | CuP 284 | 645 - 800 | ++++ | 15% Ag, Good electrical conductivity, low melting temperature, High ductility even at low temperatures, for operating temp. between -70°C and +150°C. Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Components that are subject to vibrations and thermal fluctuations, E-motors, Collectors, Heat exchanger |
| A 3018 | L-Ag18P | BCuP-8 | CuP 285 | 643 - 666 | ++++++ | 18% Ag, Good electrical conductivity, low melting temperature, High ductility even at low temperatures, for operating temp. between -70°C and +150°C. Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Components that are subject to vibrations and thermal fluctuations, Very suitable for narrow gaps and large wetting areas, Especially when a very low soldering temperature is required | |
| A 2003 EasyForm | L-Cup7 | CP 202 | CuP 180 | 710 - 820 | ++++ | Medium flow behavior, for operating temp. between -60°C and +150 C° (4), Do not use with sulphurous media and Fe- and Ni-based alloys, Phosphorous content (7,0%) | Copper, brass, tin-bronze and gunmetal, the solder can influence the flow, Repair work, Modeling Work, Plumbing | |
| A 2003 FreeFlow | L-Cup7 | CP 202 | CuP 180 | 710 - 820 | +++++ | Increased flow behavior, for operating temp. between -60°C and +150 C° (4), Do not use with sulphurous media and Fe- and Ni-based alloys, Phosphorous content (7,25%) | Copper, brass, tin-bronze and gunmetal, Capillary soldering, Connections with narrow soldering gaps, Industrial brazing | |
| A 2004 | L-CuP6 | CP 203 | CuP 179 | 710 - 890 | +++ | Soldering large gaps, Suitable for the use in drink water, suitable for operating tem. between -60°C and +150 C° (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Suitable for bridging gaps, Repair work, Modeling work, Copper pipe installation, Plumbing | |
| A 2005 | L-CuSnP7 | CP 302 | CuP 386 | 650 - 700 | ++++ | Good color similarity when soldering brass, the solder seam can be galvanized, very low melting temperature, for operating tem. between -60°C and +150 C° (4), Do not use with sulphurous media and Fe- and Ni-based alloys | Copper, brass, tin-bronze and gunmetal, Connections with narrow soldering gaps, Industrial brazing, Plumbing | |
| A 204 | L-CuP8 | CP 201 | CuP 182 | 710 - 770 | ++++++ | Thin-flowing solder with very good flow properties, very capillary active, for operating temp. between -20°C and +150°C, Do not use with sulphurous media and Fe- and Ni-alloys | Copper, brass, tin-bronze and gunmetal, Connections with narrow soldering gaps, Industrial brazing, Plumbing |
XS-Coating without SVHC
Our new XS-Coating without SVHC (Substances of Very High Concern) is the alternative to the existing products on the market with even less flux on board. This product is ideal for applications where post-brazing operations such as cleaning and removing flux residues become essential.
Brazing Rods
| Product Name | EN ISO 17672 | EN 1044 | AWS | DIN 8513 |
|---|---|---|---|---|
| AF319 XS BF | Ag 134 | AG 106 | N/A | L-Ag34Sn |
| AF320 XS BF | Ag 145 | AG 104 | BAg-36 | L-Ag45Sn |
| AF340 XS BF | Ag 140 | AG 105 | BAg-28 | L-Ag40Sn |
| AF314 XS BF | Ag 155 | AG 103 | N/A | L-Ag55Sn |
| AF319 XS BF | Ag 134 | AG 106 | N/A | L-Ag34Sn |
| AF320 XS BF | Ag 145 | AG 104 | BAg-36 | L-Ag45Sn |
| AF340 XS BF | Ag 140 | AG 105 | BAg-28 | L-Ag40Sn |
| AF314 XS BF | Ag 155 | AG 103 | N/A | L-Ag55Sn |
