The SIL 4 certified zentrak OBJECT CONTROLLER POINT is based on EULYNX Baseline 4 architecture. It is ready for integration with modern infrastructure and facilitates the digitalization of legacy interlocking systems and their wayside equipment, paving the way for migration to digital interlocking.
Ensures interoperability and future-proof integration across european rail networks.
Significant reduction in malfunctions, early detection of irregularities. Optional: Use of the solution to replace inspection activities.
Durable aluminium housing with IP65 protection ensures reliable performance from -40°C to +70°C, while plug coupler connectors make installation fast and hassle-free.
No extra hardware needed.

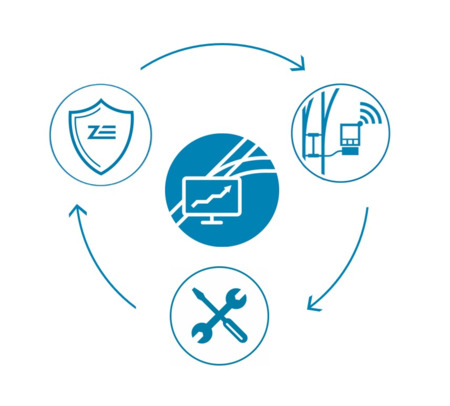

Integrated diagnostics and remote monitoring functions minimise downtime by 24/7 condition monitoring options.
The concept of EULYNX promotes decoupling signaling components according to their lifecycle, enabling wayside assets (points, level crossings, train detection systems, signals) to have their own local control system – the Object Controller.

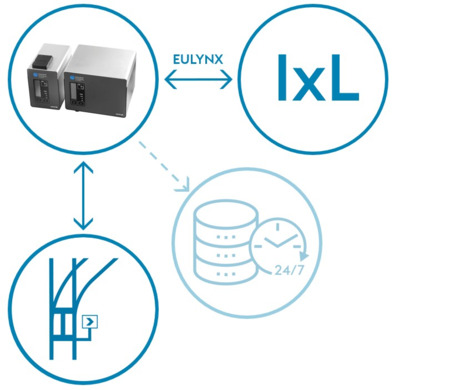

Object Controllers communicate with interlocking systems in a standardized, digital way, making wayside assets independent from specific interlocking suppliers.
Developed from the knowledge and experience of voestalpine Railway Systems engineers, together with point machines and zentrak INFRASTRUCTURE MONITORING, the zentrak OBJECT CONTROLLER POINT offers the ideal solution for your Intelligent Turnout.

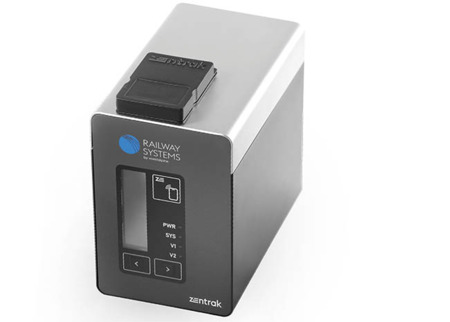

Main Module: Provides the interfaces to interlocking subsystems and power supply and communication for Controller Modules. Near Field Communication (NFC) for displaying diagnostic data on registered mobile devices.

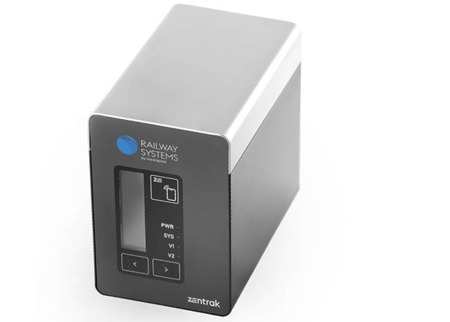

Controller Module: Provides the control interface to the turnout (drives, detectors and sensors).

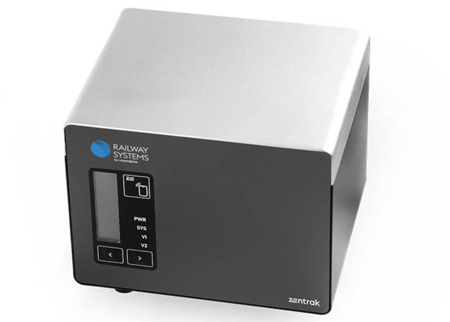

There are 3 versions of the Controller Module:

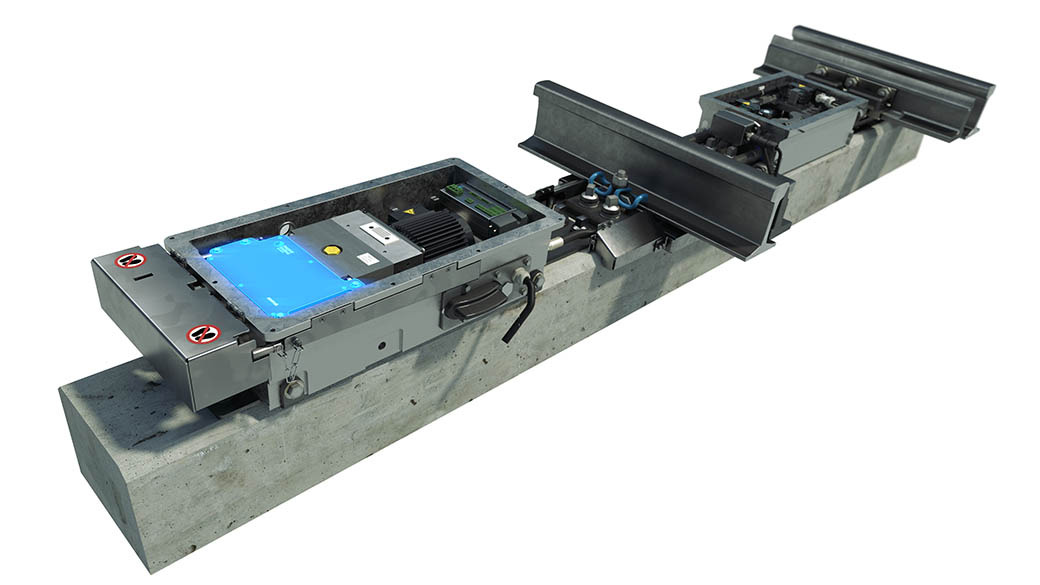

One stop shopping – Complete signaling, locking, detection, and monitoring from one supplier. Customized, embedded within the Point Machine.
