Slab track installation support system Cast Fix

The slab track installation support system Cast Fix is designed for category A and B slab track applications
according EN 13145 standard.

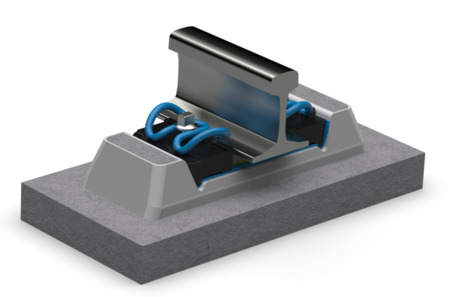

The system is developed to simplify the top-down installation method and to cast a perfectly supported rail seat.
The system ensures a low static stiffness by using resilient pads and is in vertical and lateral direction adjustable. It can be installed either with base plates or as direct fastening system.

Technical aspects of slab track installation support system Cast Fix

Typical field of application; Urban Traffic Metros
Axle load: max. 160kN
Speed: max. 140 km/h
Gauge: variable
Clamping force: 18 kN ÷ 19 kN
Electrical resistance: ≥ 5 kΩ
Regulation vertically and laterally through adjustment shims
Rail inclination: 1:20, 1:40, 1:80 or 1:∞
Rail longitudinal resistance: min. 7 kN
Static stiffness of the system in standard version: up to 22,5 kN/mm (possibility to adjust static stiffness according to the customer needs)
