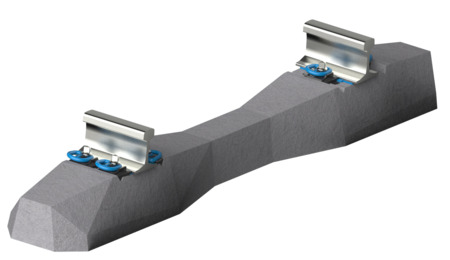

Innovative Fixation System IFS25

The Innovative Fixation System IFS25 is designed for category C and D ballasted track applications according to EN 13481-2 standard.

The system is fully modular and can be equipped with two or four G9 clips per rail seat to increase toe loads and torsional resistance. The shape of the sleeper is designed to minimize the ballast pressure and maximize the track stability.

Technical aspects of Innovative Fixation System IFS25

Typical field of application: Conventional Rail and High Speed
Axle load: max. 250kN
Speed: max. 250 km/h
Gauge: 1435mm
Clamping force: min 9kN per clip
Electrical resistance: ≥ 5 kΩ
Sleeper width: 400 mm
Weight: 400 kg
Length: 2600 mm
Rail inclination: 1:40
