voestalpine Sprues – AM

designed for pure performance

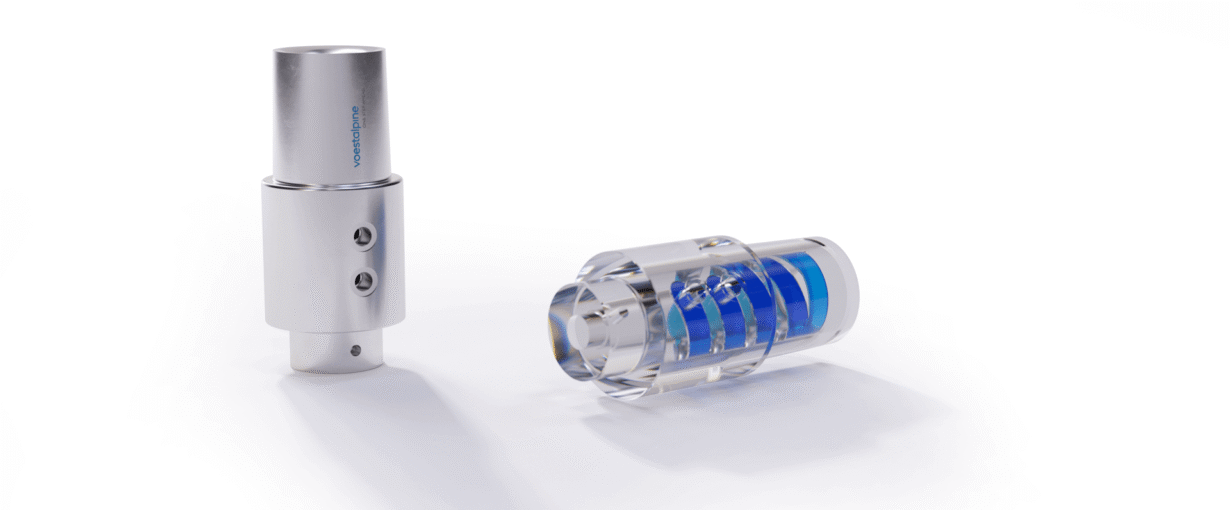

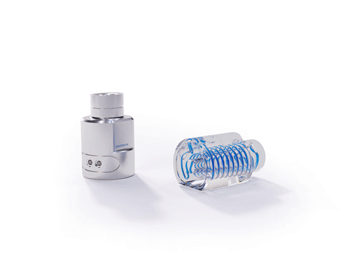

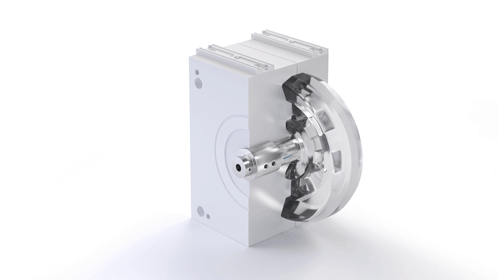

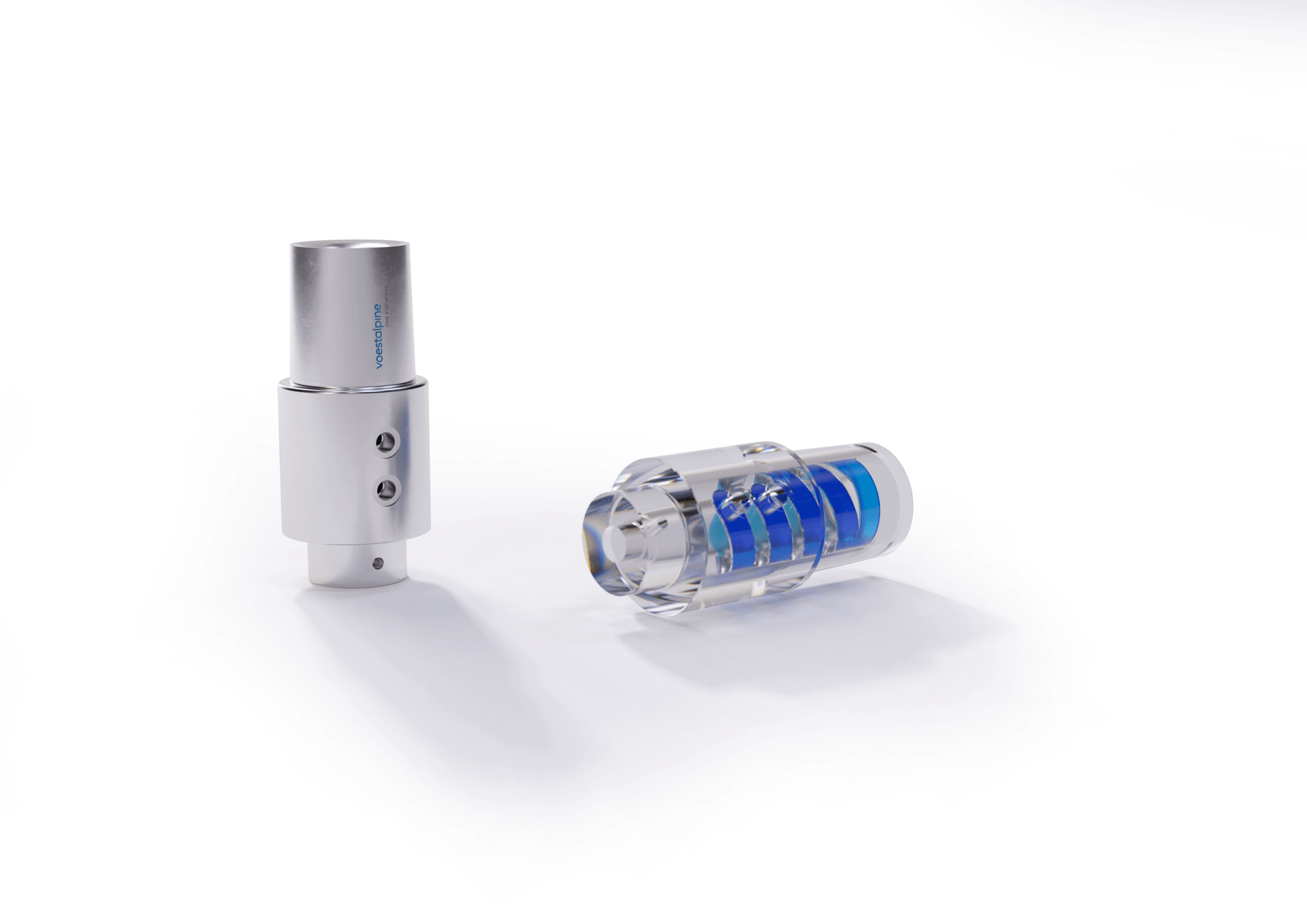

We provide the HPDC industry with ready-to-use AM Sprues, which are mainly used in 3-plate die casting molds. Made from our premium BÖHLER/Uddeholm powders according to our customers’ needs, these AM parts contain our unique conformal-cooling design, providing significant improvement of cycle time, lifetime, and maintenance effort.

  • Cycle time reduction
  • Improved life time
  • Reduced maintenance effort (less cleaning)
  • Stable high quality final casted parts

Technical Data

  • Material: premium materials by BÖHLER/ Uddeholm
  • Hardness Level: 50 – 57 HRC
  • PVD Coating (optional): voestalpine special coatings
  • Cooling: voestalpine tailored conformal cooling

Applications

High Pressure Die Casting

Manufacturing Process

Additive Manufacturing

Technical Data

C Si Mn Cr Mo V
0.50 0.20 0.25 4.50 3.00 0.60

C Si Mn Cr Mo V
0.35 0.20 0.50 5.00 2.30 0.60

Downloads

Datasheet Sprues AM EN
PDF | 484 KB

Contact voestalpine High Performance Metals Canada for further information
