SCANDIE steel rules. A brand with outstanding possibilities. SCANDIE is a leading manufacturer of high quality strip steel for die-making in the packaging industry and focuses on supporting our customers with effective solutions. We offer steel rules for any die-cutting operation and help diemakers and converters improve their processes in difficult applications.
Special Rules
Click to enlarge.
Creasing Rules
With our wide range of creasing rules manufactured in strict compliance with international standards especially in regards to
height and thickness tolerance, our creasing rules achieve perfect folding of solid and corrugated board in diecutting. Following types are available:
SR (Singel Round), DR (Double Round), SRF (Single Round Fine), SH (Laser Crease Square Head), RH (Laser Crease Round Head)
height and thickness tolerance, our creasing rules achieve perfect folding of solid and corrugated board in diecutting. Following types are available:
SR (Singel Round), DR (Double Round), SRF (Single Round Fine), SH (Laser Crease Square Head), RH (Laser Crease Round Head)
| SCANDIE tempered | SCANDIE 400 | |
| Body hardness | 380 HV | 380 HV |
| Height | 20,50 - 24,00 mm | 20,50 - 24,00 mm |
| Thickness | 2pt, 3pt | 4pt |
Click to enlarge.

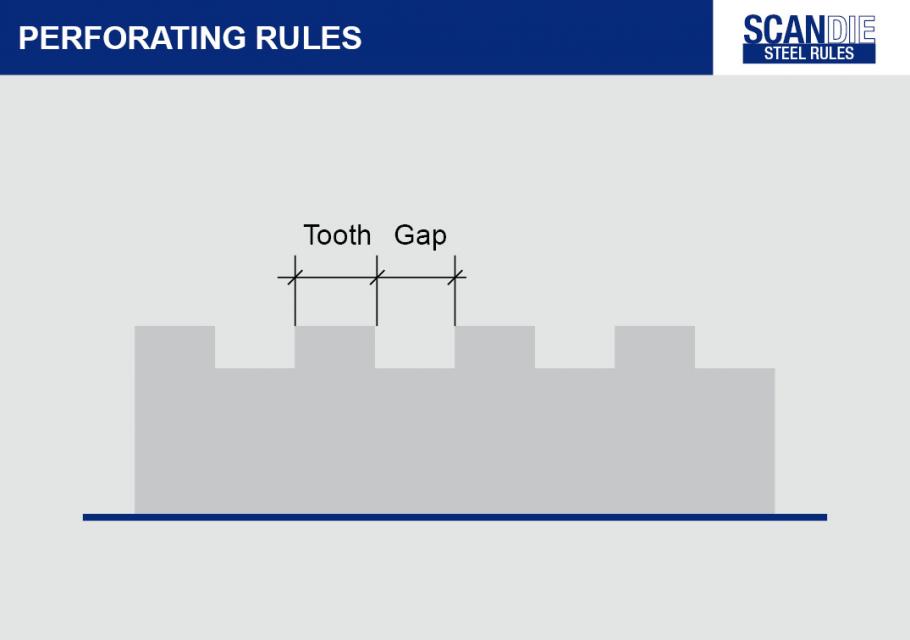

Perforating Rules
Wide range of tooth/gap combinations in best quality for all kinds of packaging requirements.
| SCANDIE 450 | |
| Body hardness | 450 HV |
| Height | 21,00 - 25,40 mm |
| Thickness | 2pt, 3pt, 4pt |
| Bevel type | CB |
| Spacing | Tooth / Gap |
Click to enlarge.

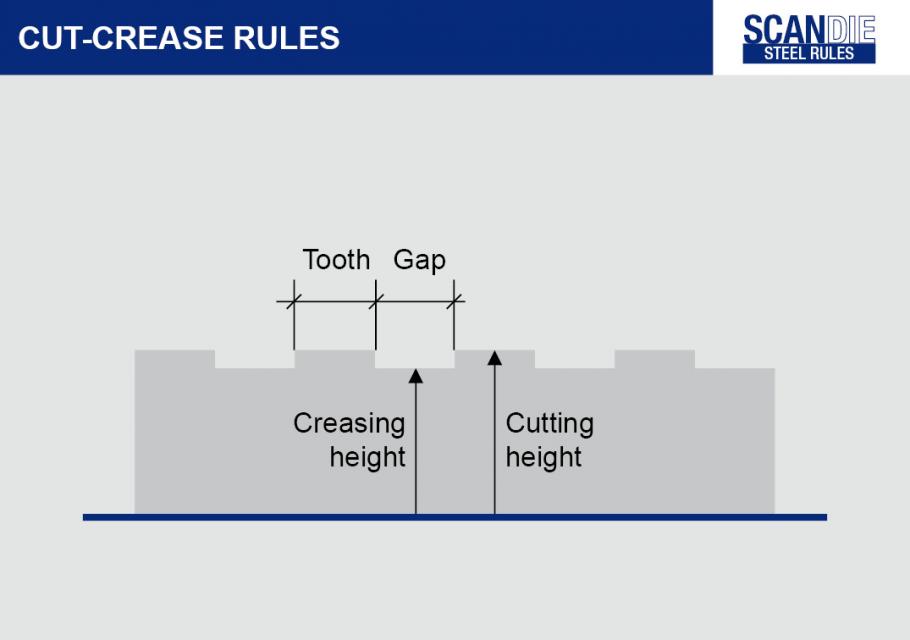

Cut-Crease Rules
Highest quality of flat machined crease sections and different variations for easier folding of solid board and corrugated board.
| SCANDIE 450 | |
| Body hardness | 450 HV |
| Height | Cutting height Creasing height |
| Thickness | 2pt, 3pt, 4pt |
| Bevel type | CB |
| Spacing | Tooth / Gap |
Click to enlarge.

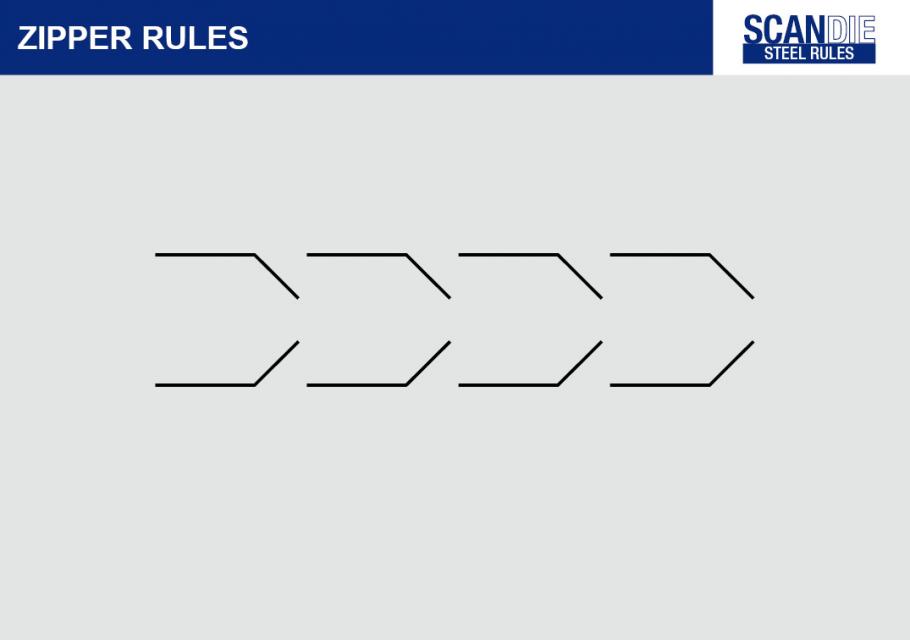

Zipper Rules
The ideal solution for shelf ready packaging.
| SCANDIE 450 | |
| Body hardness | 450 HV |
| Height | 22,00 - 25,40 mm |
| Thickness | 2pt, 3pt |
| Bevel type | CB |
| Tooth spacing | 6 - 12 mm |
Click to enlarge.

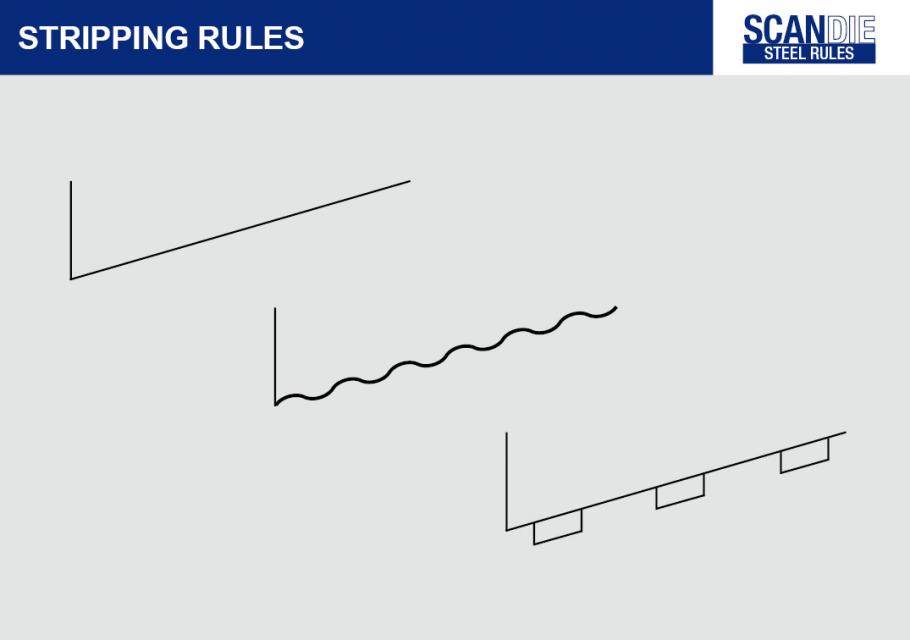

Stripping Rules
The best option to eject waste after the diecutting process.
| SCANDIE 400 | |
| Body hardness | 380 HV |
| Height | 30 -55 mm |
| Thickness | 3pt |
| Executions | - standard, flat - waved - flat with teeth |
