SCANDIE steel rules. A brand with outstanding possibilities. SCANDIE is a leading manufacturer of high quality strip steel for die-making in the packaging industry and focuses on supporting our customers with effective solutions. We offer steel rules for any die-cutting operation and help diemakers and converters improve their processes in difficult applications.
Product Information
Click to enlarge.

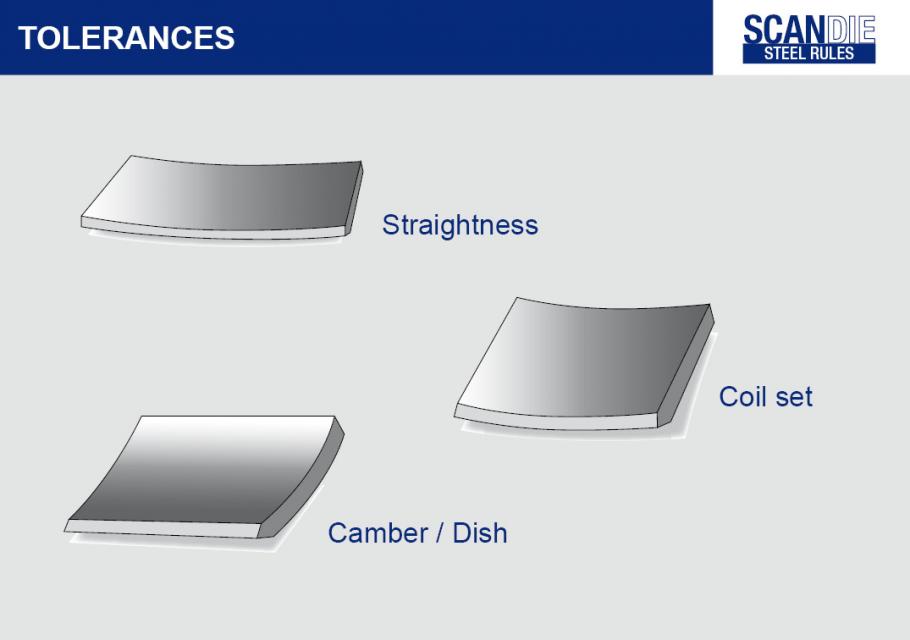

Tolerances
SCANDIE steel rules are manufactured and tested in Europe using the latest state-of-the-art equipment. All our products meet the tolerances and demands defined by the European Diecutting Association (ESU).
Product Tolerance
Thickness Tolerance
Product Tolerance
| Height < 35 mm | +/- 0,020 mm |
| Height ≥ 35 mm | +/- 0,030 mm |
| Straightness | max. 0,5 mm / 1 m length |
| Camber / Dish | max. 0,10% of height |
| Coil set | max. 5 mm / 1 m length (for cut length only) |
Thickness Tolerance
| Thickness in mm | Thickness in pt | Tolerance in mm |
| 0,45 | 1,3 | +/- 0,012 |
| 0,53 | 1,5 | +/- 0,014 |
| 0,71 | 2 | +/- 0,015 |
| 1,05 | 3 | +/- 0,020 |
| 1,42 | 4 | +/- 0,028 |
Click to enlarge.

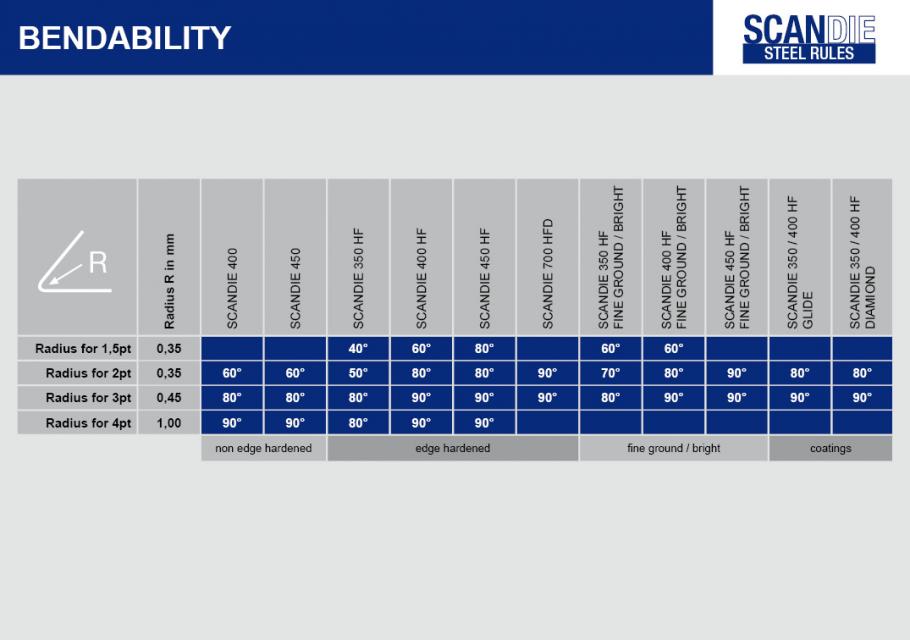

Bendability
Through the use of the best possible raw materials and state-of-the-art production methods, SCANDIE is able to supply steel rules with excellent and consistent bending properties – essential for processing on automatic bending machines. This enables our customers to make dies of outstanding quality and superior diecutting properties. Our target is to combine the highest product standards on the one hand with constant and recurring quality on the other hand in all SCANDIE rules.
Click to enlarge.
Forms of Delivery
SCANDIE steel rules are packed in suitable corrugated boxes for straight length and coils for easy use and safe transport and storage.
- Straight cut length pieces are as standard 1 meter long.

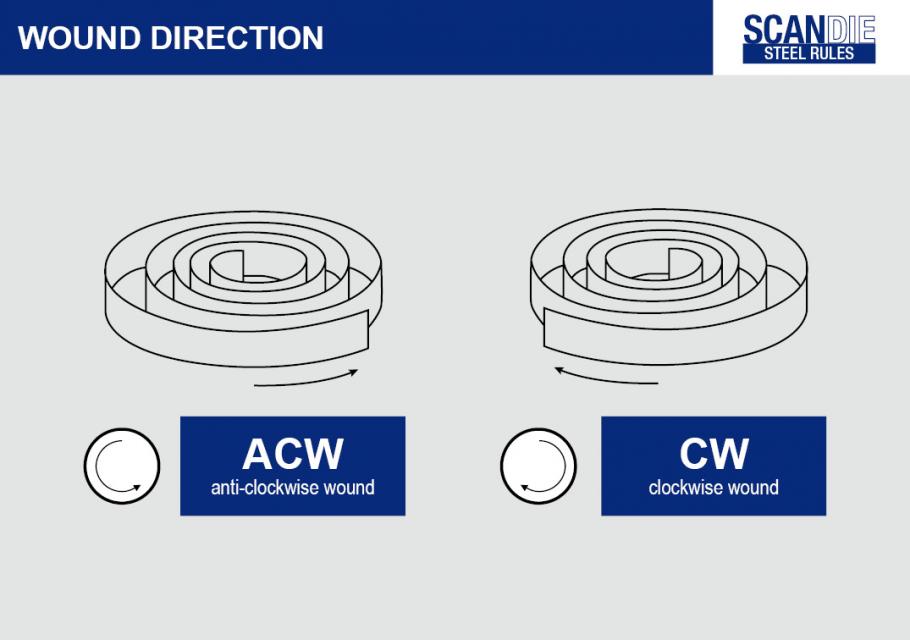

- Coils are available in anti-clockwise and clockwise wound direction.
