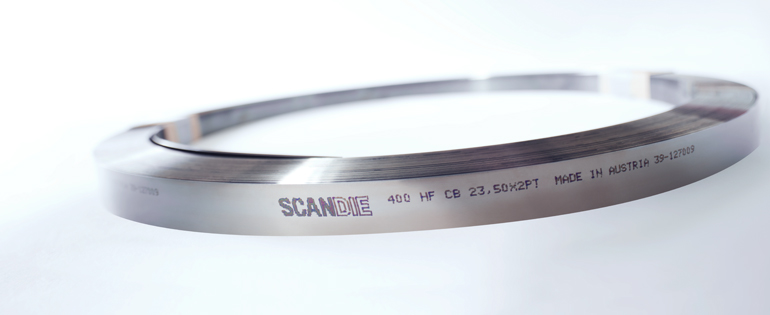

SCANDIE steel rules. A brand with outstanding possibilities. SCANDIE is a leading manufacturer of high quality strip steel for die-making in the packaging industry and focuses on supporting our customers with effective solutions. We offer steel rules for any die-cutting operation and help diemakers and converters improve their processes in difficult applications.
Cutting Rules
Click to enlarge.
Non Edge Hardened
Suitable for short and medium die-cutting runs of solid board and corrugated board. The hard body gives good stability, whilst the surface decarburization ensures excellent bendability.
| SCANDIE 400 | SCANDIE 450 | |
| Body hardness | 380 HV | 450 HV |
| Height | 22 - 100 mm | 22 - 100 mm |
| Thickness | 2pt, 3pt, 4pt | 2pt, 3pt, 4pt |
| Bevel type | CB, SB, LCB, LSB | CB, SB, LCB, LSB |
| Edge angle | 42°, 52° | 42°, 52° |
Click to enlarge.

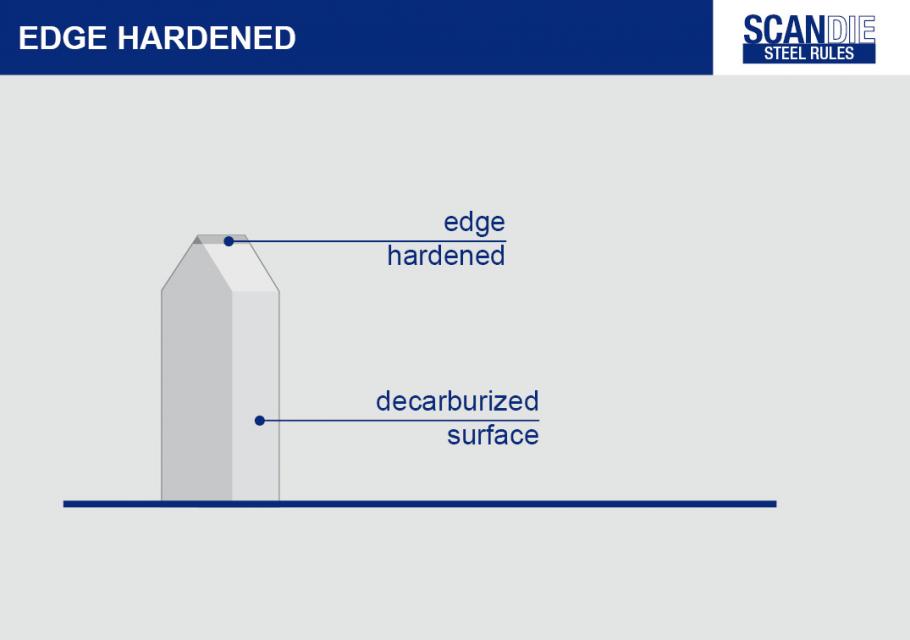

Edge Hardened
The cutting edges of these rules are high frequency hardened and ensure longest lifetime in die-cutting. The soft body permits tight bends, while rules with a higher body hardness provide highest stability during die-cutting.
| SCANDIE 350 HF | SCANDIE 400 HF | SCANDIE 450 HF | SCANDIE 500 HF | |
| Body hardness | 340 HV | 380 HV | 450 HV | 500 HV |
| Edge hardness | 650 HV | 650 HV | 650 HV | 650 HV |
| Height | 22 - 50 mm | 22 - 50 mm | 22 - 100 mm | 22 - 100 mm |
| Thickness | 2pt, 3pt, 4pt | 2pt, 3pt, 4pt | 2pt, 3pt, 4pt | 2pt, 3pt, 4pt |
| Bevel Type | CB, SB, LCB, LSB | CB, SB, LCB, LSB | CB, SB, LCB, LSB | CB, SB, LCB, LSB |
| Edge angle | 42°, 52° | 42°, 52° | 42°, 52° | 42°, 52° |
Click to enlarge.
Deep Edge Hardened
This cutting rule combines deep hardened, extra hard rule tip with medium hard body. This combination ensures rule durability, stability and good level of bendability. Therefore it is perfectly suitable to cut rigid and abrasive materials.
| SCANDIE 700 HFD | |
| Body hardness | 400 HV |
| Edge hardness | 700 HV |
| Hardening depth | plus 50% |
| Height | 22 - 50 mm |
| Thickness | 2pt, 3pt |
| Bevel type | CB, SB, LCB, LSB |
| Edge angle | 42°, 52° |
Click to enlarge.

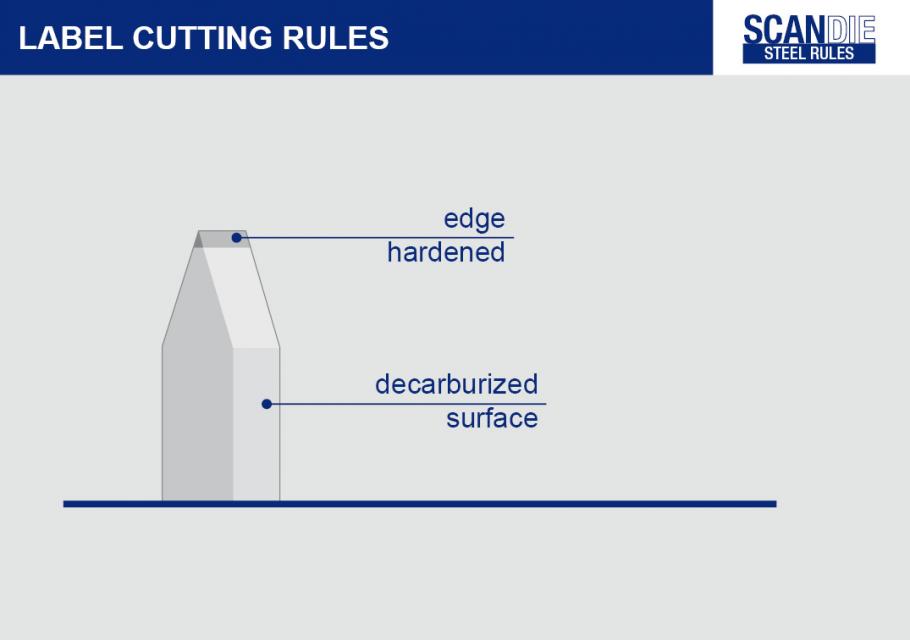

Label Cutting Rules
These rules have as a standard a fine ground edge for die-cutting all kind of labels. Offered in edge hardened versions to achieve longest lifetime and best cutting results.
| SCANDIE 350 HF | SCANDIE 400 HF | SCANDIE 450 HF | |
| Body hardness | 340 HV | 380 HV | 450 HV |
| Edge hardness | 650 HV | 650 HV | 650 HV |
| Height | 8 - 12 mm | 8 - 12 mm | 8 - 12 mm |
| Thickness | 1.3pt, 1,5pt | 1.3pt, 1,5pt | 1.3pt, 1,5pt |
| Bevel type | CB | CB | CB |
| Edge angle | 42° | 42° | 42° |
