Enhancing die casting efficiency with voestalpine Fin Filters and Chill Blocks
At a glance
Discover how voestalpine’s Engineered Products—such as Fin Filters and Chill Blocks—set new standards for die casting efficiency, reliability, and cost-effectiveness. Developed from premium materials by Uddeholm and Böhler/Uddeholm, these solutions are designed to work in combination for reduced maintenance effort, outstanding venting performance, and long-term durability in harsh foundry conditions.
Why vacuum system performance matters
If die-cast components are heat treated with solution annealing, vacuum support is necessary, otherwise blistering will occur. Entrapped air and gases during die casting can lead to defects such as porosity, cold flow, and sink marks. Traditional filter systems often clog with flitter burs and other substances (e.g. residual release agents), resulting in unreliable vacuum measurements and costly downtime. The voestalpine Fin Filter addresses these issues, as outlined below.
voestalpine Fin Filter: designed to enhance die casting performance

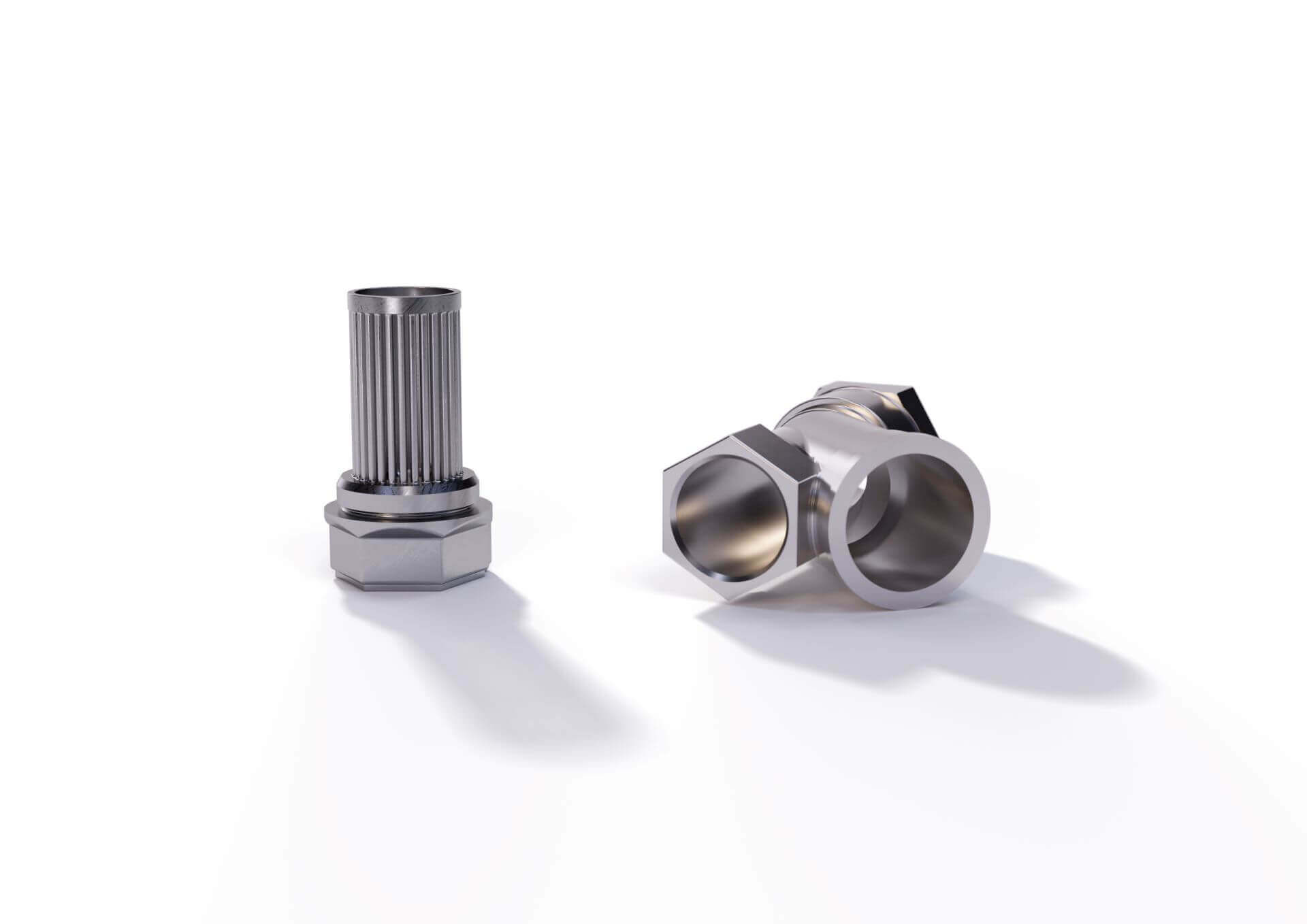

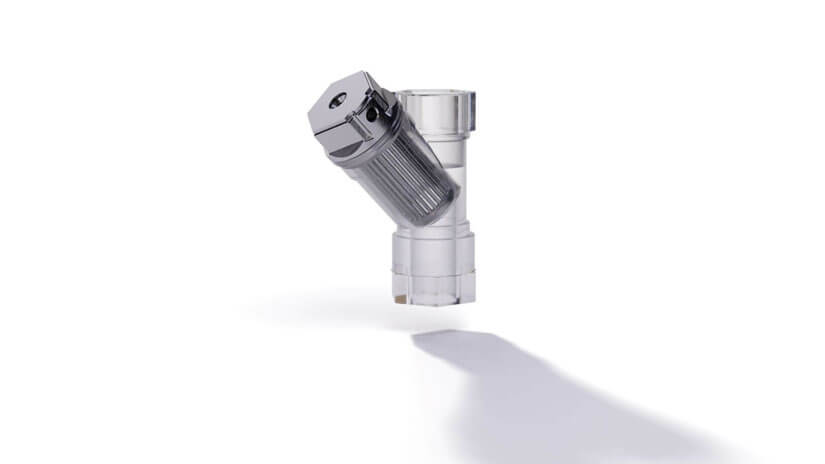

voestalpine Fin Filters for die casting applications are created from premium materials by Uddeholm. The Fin Filter is a high-performance filtration system that stands out for its efficiency and durability. It is additively manufactured and designed for maintenance-free operation, with an easy blow-out feature that can be performed either manually or automatically by a vacuum unit after each cycle.
Made from high-quality stainless steel, the filter is exceptionally long-lasting and resistant to wear. Its innovative design prevents clogging, ensuring more consistent and accurate vacuum values. Additionally, the Fin Filter is a cost-effective solution, providing significant savings. For efficient and uninterrupted degassing, we recommend combining our Fin Filters with voestalpine Chill Blocks.
voestalpine Fin Filter industrial performance comparison
- Reduced maintenance and cleaning effort
- More consistent and accurate vacuum values
- Reduced downtime
- Increased lifetime
Find out more about the voestalpine Fin Filter here

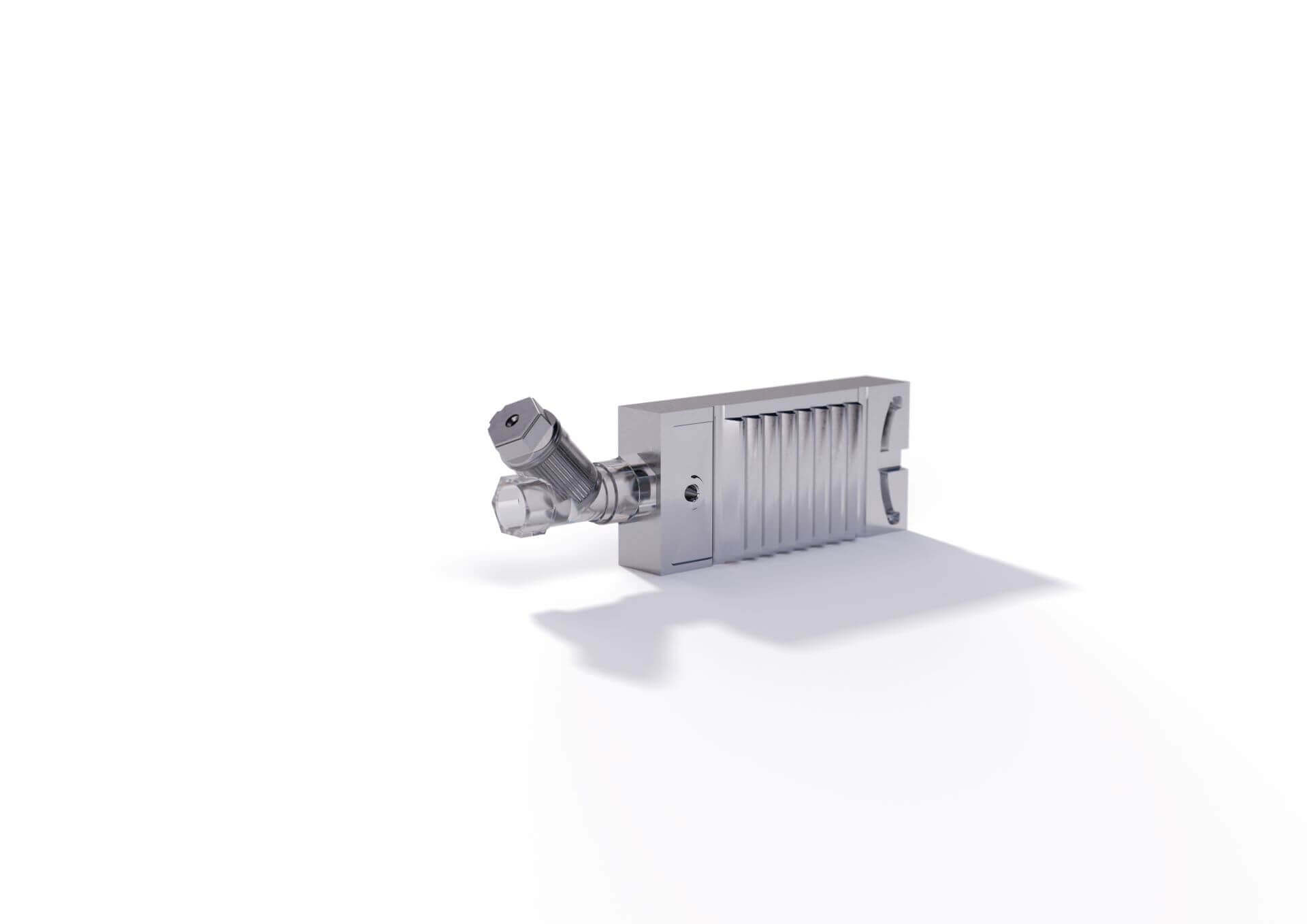

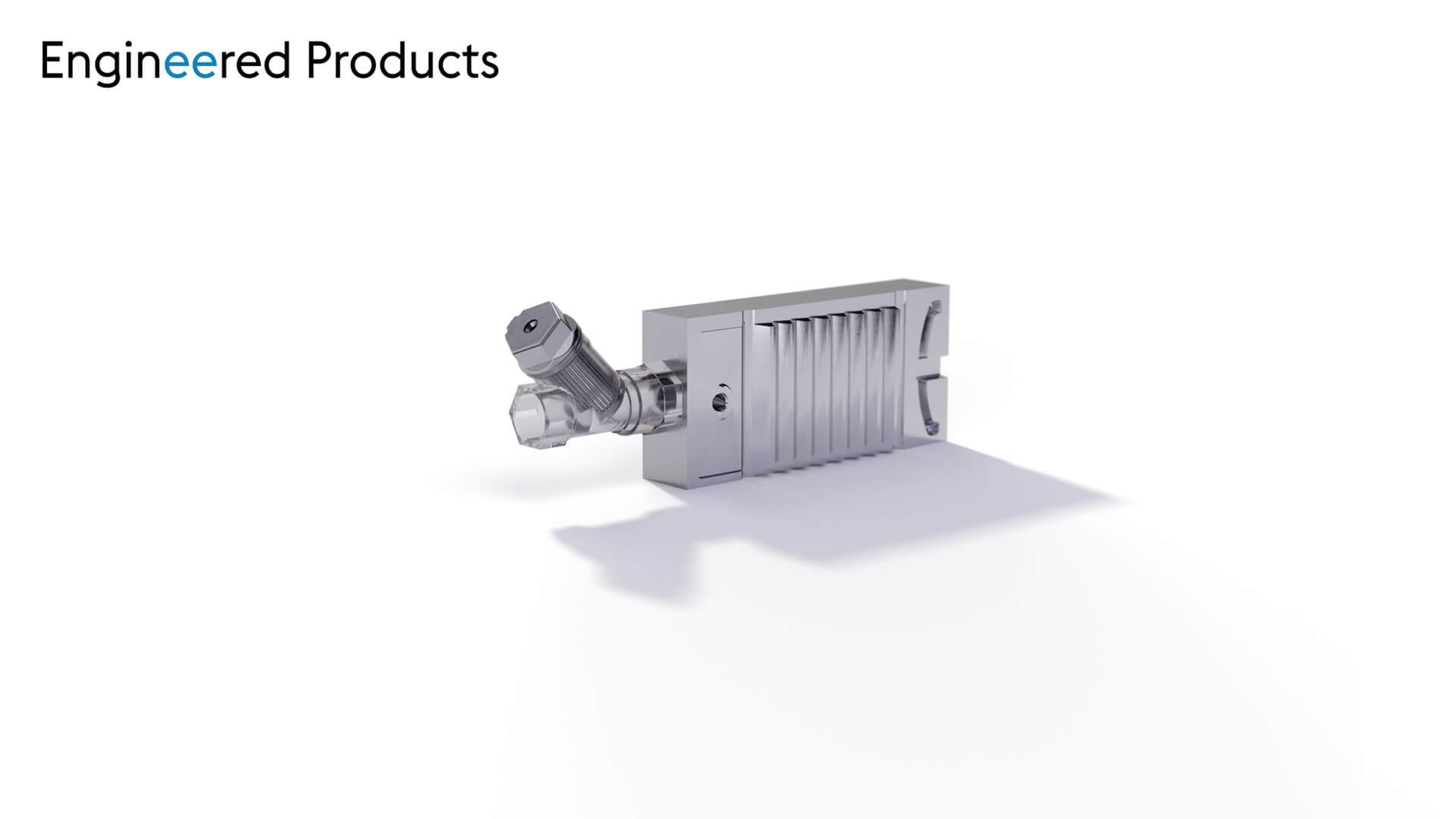

The perfect combination: voestalpine Fin Filters and Chill Blocks
voestalpine Fin Filters work in perfect combination with our Chill Blocks. Together, these solutions deliver the highest venting performance and efficient, uninterrupted degassing. They ensure consistent and accurate vacuum values and provide the durability required for harsh foundry conditions.

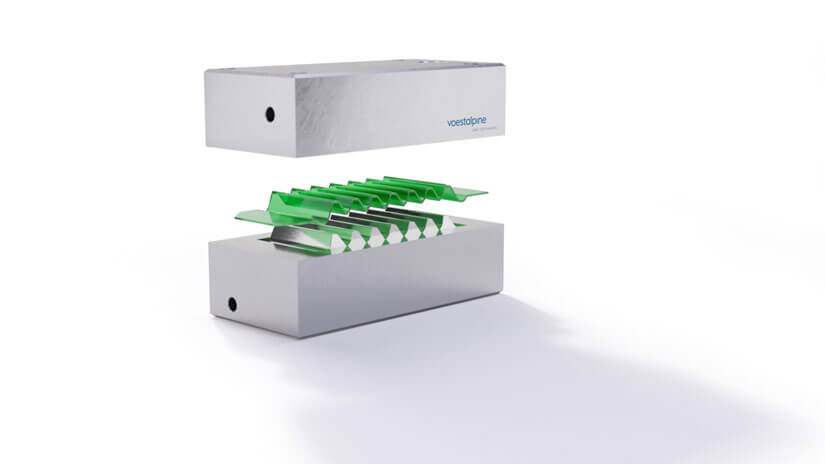

Conventionally manufactured from premium materials by BÖHLER/Uddeholm, the voestalpine Chill Block provides the highest venting performance with maximum process reliability.
The patented wave design allows a gap size of up to 1.3 mm, significantly increasing the cross-sectional area for die evacuation compared to standard systems. This larger gap allows for higher process reliability and a reduction in maintenance and cleaning effort. Furthermore, ejection forces are strongly reduced, leading to easy ejection and less bonding in the venting area. These design and performance advantages enable a more reliable filling process, more consistent casting quality, and less maintenance effort.
voestalpine Chill Block industrial performance comparison
- Patented wave design
- Reduced maintenance and cleaning effort
- Attractive costs compared to Cu-W blocks
- Best venting properties (venting gap up to 1.3 mm)
- Extremely long lifetime due to outstanding high-temperature wear resistance
Find out more about the voestalpine Chill Blocks here!
Ready for your casting challenges
In today’s high-pressure die casting industry, improving OEE is essential. voestalpine Engineered Products—Fin Filters and Chill Blocks—are designed to decrease cycle time, scrap rate, downtime, and maintenance effort, thereby increasing productivity and process reliability.
Contact our experts to learn how voestalpine solutions can improve your casting processes.
