MedTech coatings

A surgical instrument must not only cut – it must also remain sharp after repeated sterilization cycles.

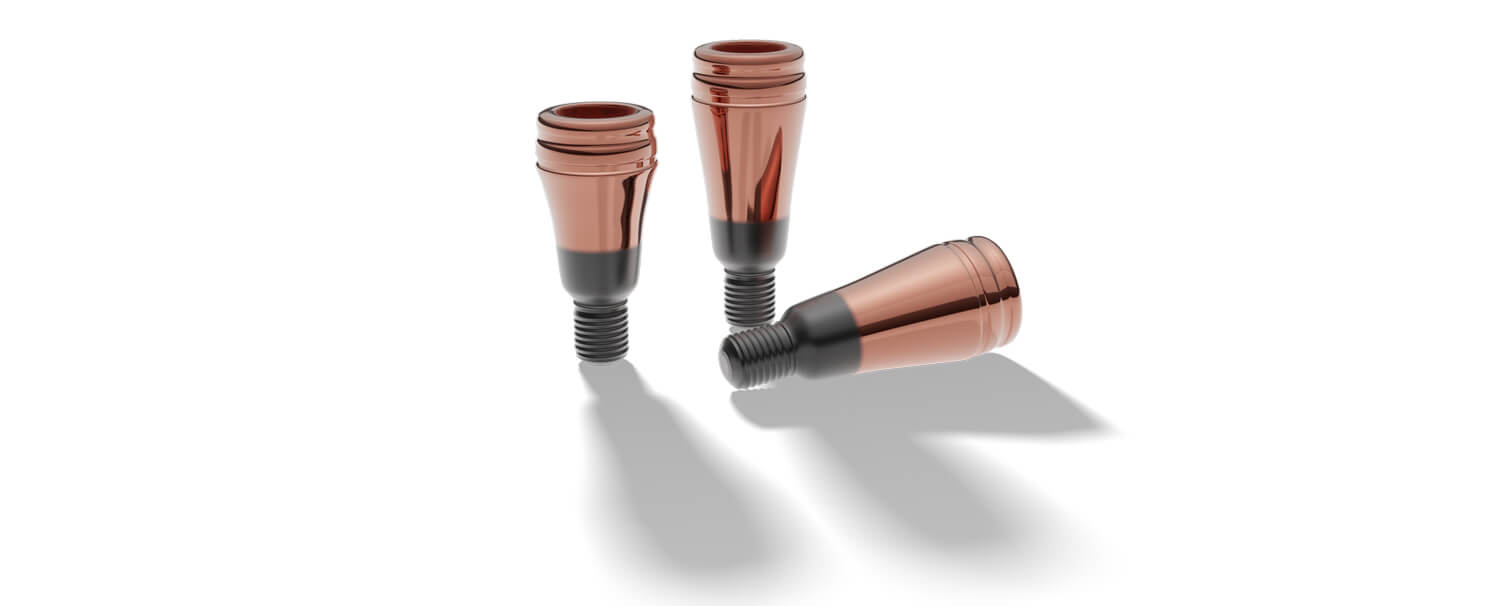

A dental implant abutment must not only fit – it must also be easy to insert, prevent screw breakage, and be invisible to the patient.
A bone saw must not only move – it must glide smoothly, without lubricant, without failure.
We develop MedTech coatings, PVD and DLC, that solve your technical, regulatory, and application-specific challenges.

Our coating portfolio in the MedTech Industry

voestalpine Coating Solution	Biocompatibility	Food Contact Conformity	Hardness (HV)	Coefficient of Friction	Layer Thickness (µm)	Color	Color
eifeler-Med TiN	ISO 10993	EC 1935 / 2004	2,300 ±500	0.6	1-4	gold

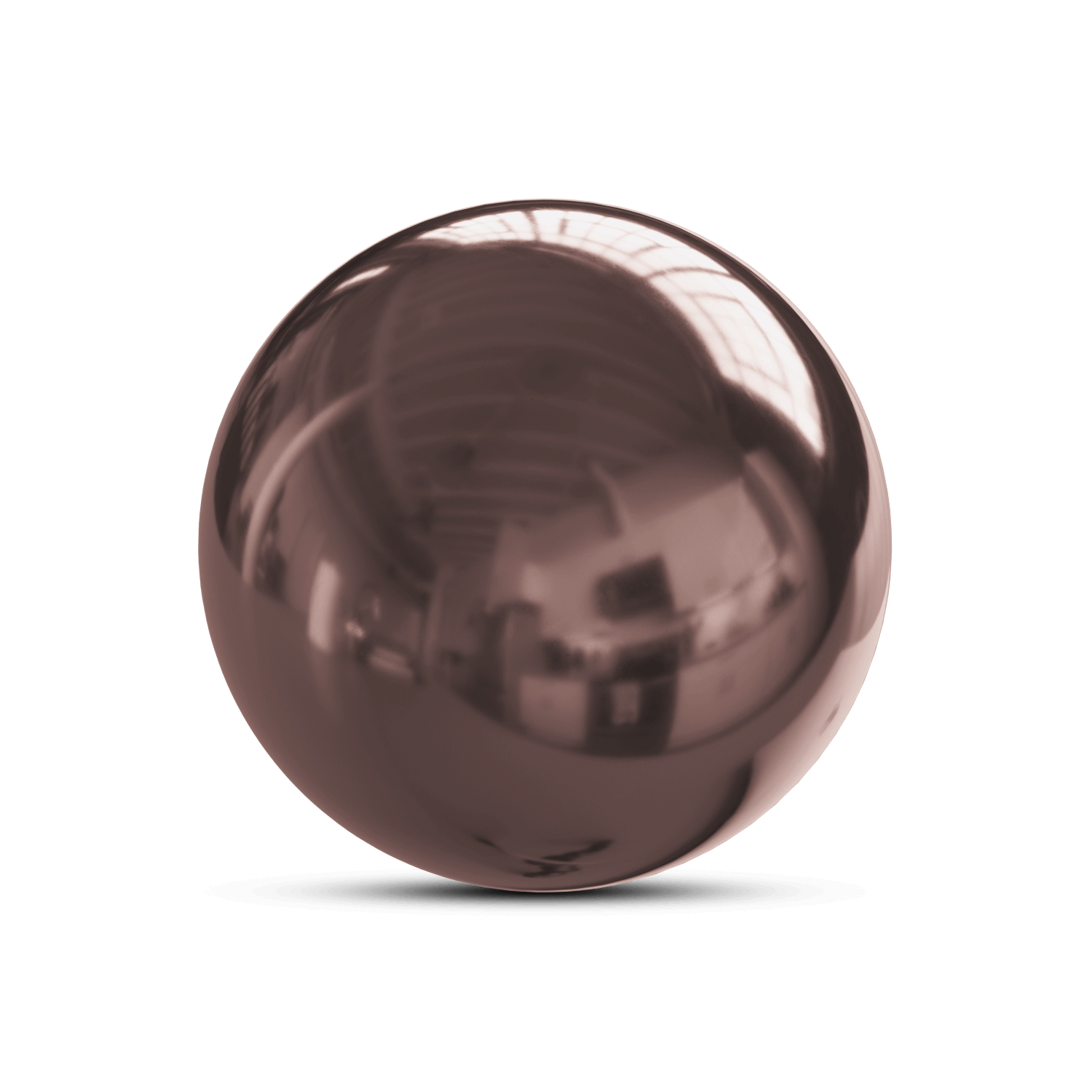

eifeler-Med TiCN	ISO 10993	EC 1935 / 2004	3,500 ±500	0.2	1-4	silver gray
eifeler-Med AITiN	ISO 10993	EC 1935 / 2004	3,300 ±300	0.7	2-5	anthracite

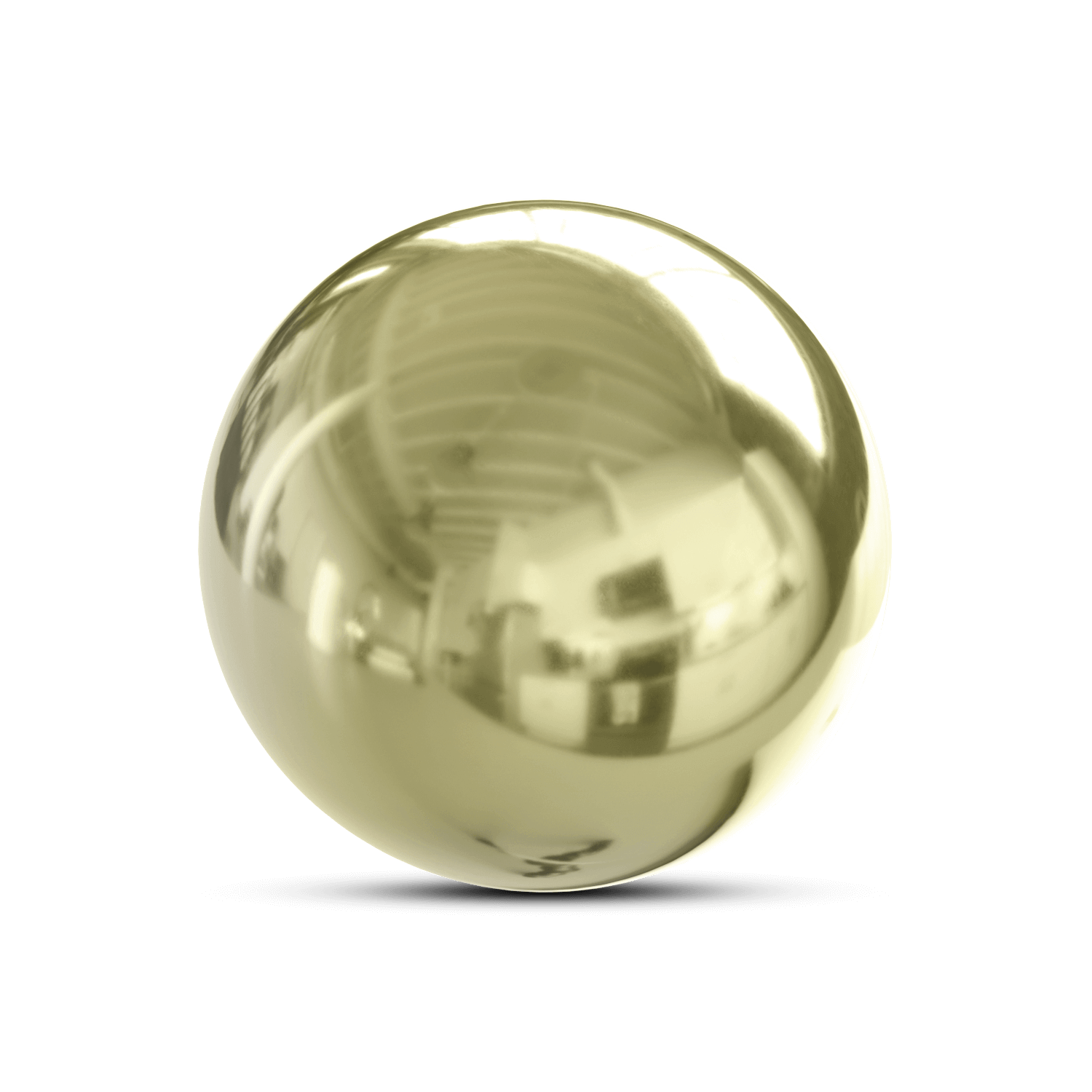

eifeler-Med ZrN	ISO 10993	EC 1935 / 2004	2,800 ±300	0.5	1-4	light yellow

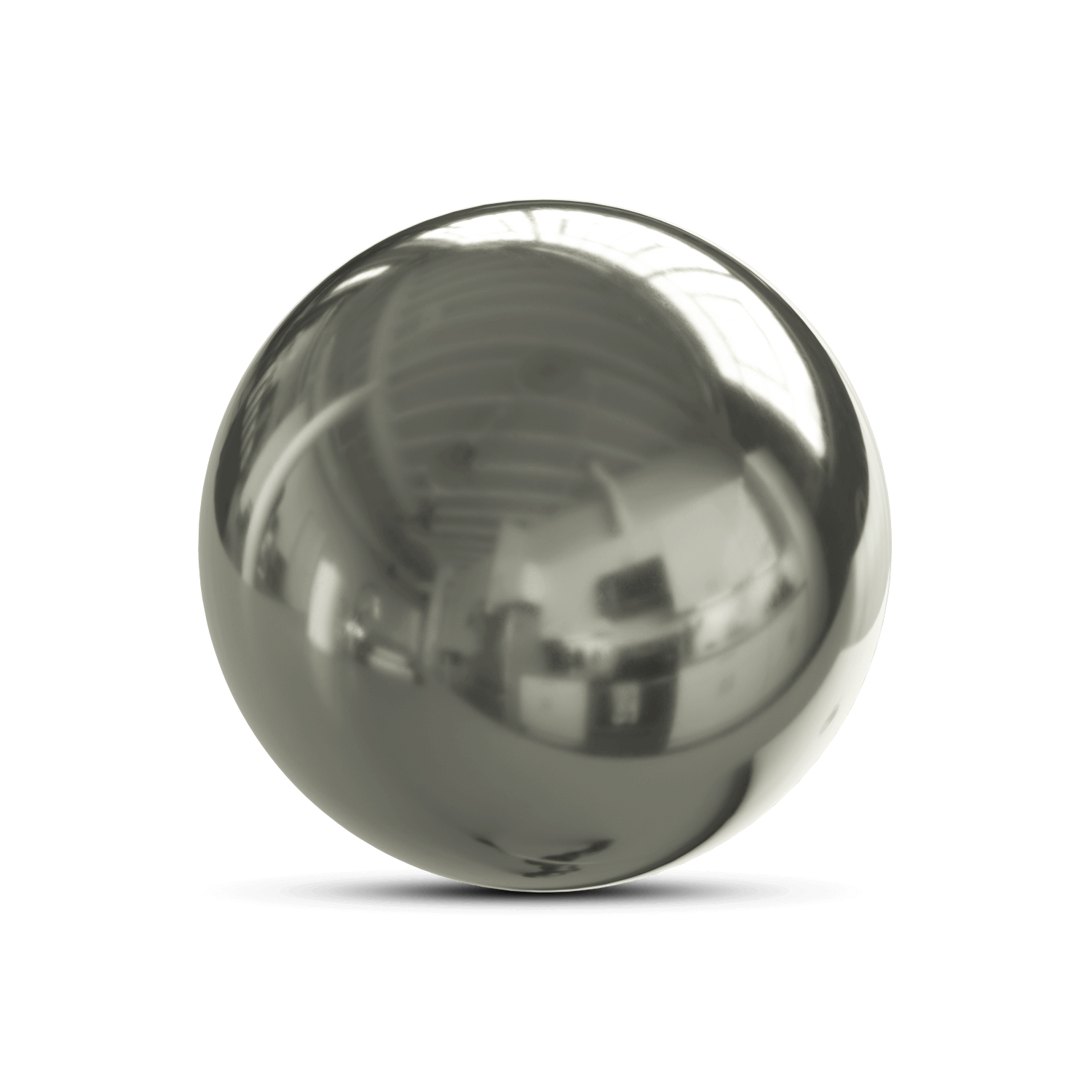

eifeler-Med CrN	ISO 10993	EC 1935 / 2004	2,000 ±600	0.3 – 1.4	1-6	slate gray
eifeler-Med ZrCN	ISO 10993	–	3,100 ±300	0.5	1-4	silver brown
SUCASLIDE®	ISO 10993	–	1,000 ±200	0.05 – 0.1	0.5-2.5	black

Our global footprint in MedTech coatings

• Germany (4x): eifeler – Düsseldorf, Ettlingen, Schnaittach, Salzgitter
• Switzerland: eifeler – Dulliken
• France (2x): eifeler France – Henriville, Allonnes
• Poland: Böhler-Uddeholm – Myslowice
• Hungary: voestalpine HPM – Dunaharaszti
• Denmark: voestalpine HPM – Kolding
• USA (6x): eifeler – Illinois, Michigan, Mississippi, Ohio, Tennesse, California
• Canada: voestalpine HPM – Mississauga
• Mexico (2x): voestalpine HPM – Querétaro, Monterrey
• China (2x): ASSAB Tooling – Shanghai, Bejing
• Taiwan: Assab Steels – Nantou City
• India: Böhler-Uddeholm – Pune
• Turkey: voestalpine HPM – Kocaeli

Brochures in the MedTech Industry
