voestalpine Sprues – AM


designed for pure performance

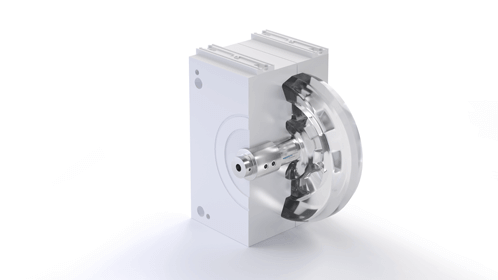

We provide the HPDC industry with ready-to-use AM Sprues, which are mainly used in 3-plate die casting molds. Made from our premium BÖHLER/Uddeholm powders according to our customers’ needs, these AM parts contain our unique conformal-cooling design, providing significant improvement of cycle time, lifetime, and maintenance effort.

Customer Benefits
  • Cycle time reduction
  • Improved life time
  • Reduced maintenance effort (less cleaning)
  • Stable high quality final casted parts
Product Features

Technical Data

Material premium materials by BÖHLER/ Uddeholm
Hardness Level 50 – 57 HRC
PVD Coating (optional) voestalpine special coatings

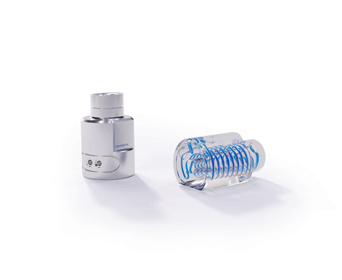

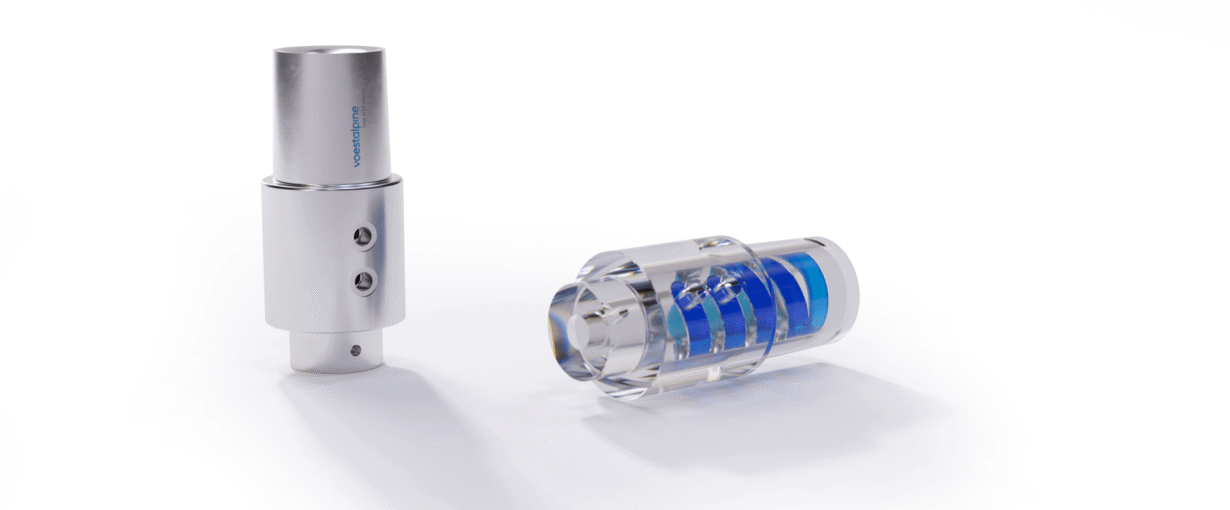

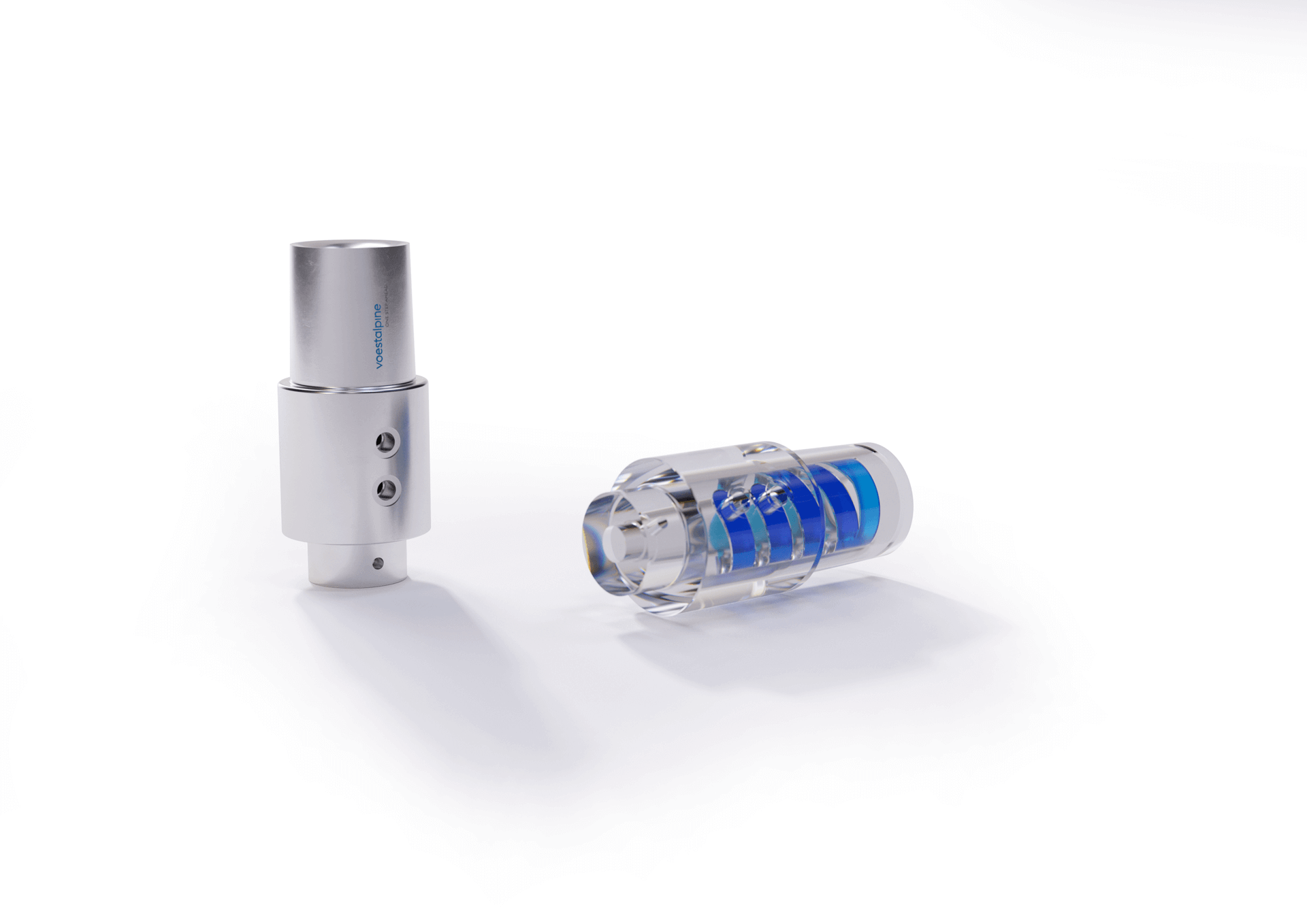

Cooling voestalpine tailored conformal cooling


Die Casting

Manufacturing Process

Additive Manufacturing

Technical Data

Chemical Analysis

C Si Mn Cr Mo V
0.50 0.20 0.25 4.50 3.00 0.60

C Si Mn Ni Mo Co Ti
≤0.03 ≤0.10 ≤0.15 18.00 4.90 9.30 1.10
