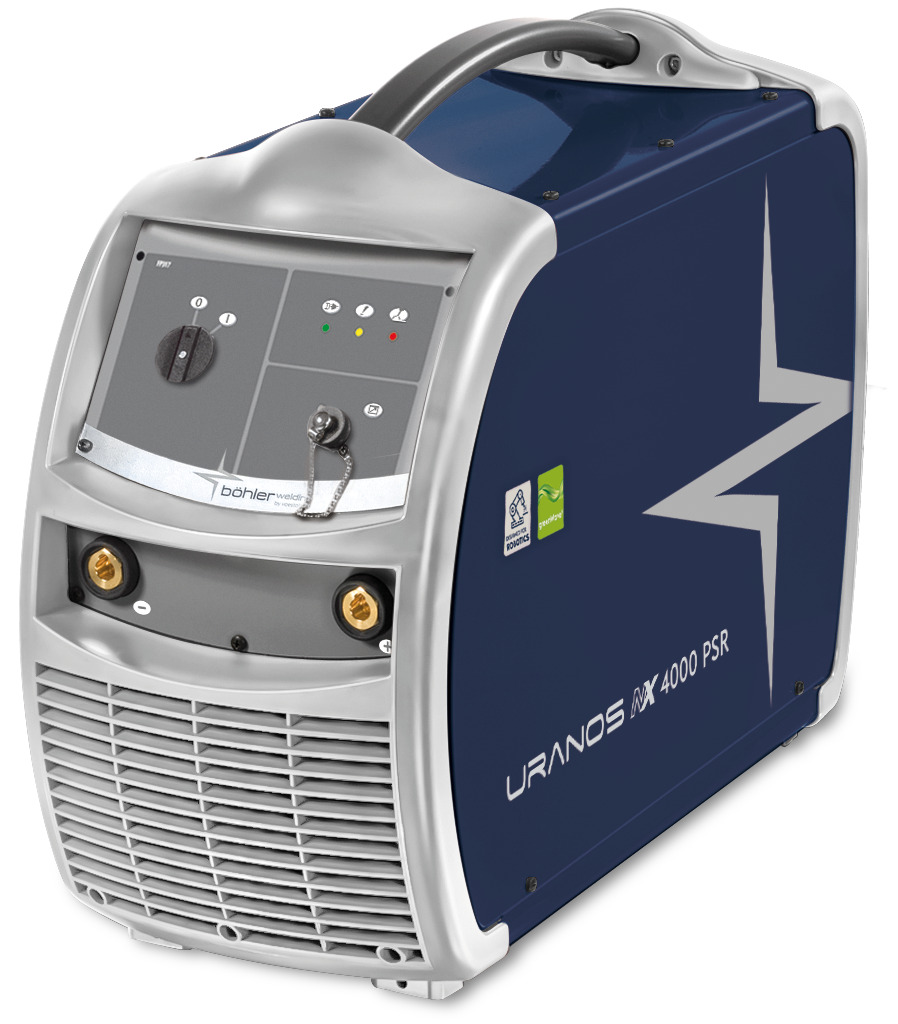

An intelligent power system that ensures the most precise welding arc and the ability to tailor the robotic welding to specific welding tasks. URANOS NX PSR unites the highest productivity with the most outstanding welding quality.
|
General |
|
|---|---|
|
Welding processs |
MIG/MAG - PULSED MIG/MAG |
|
Materials |
Carbon steels - Stainless Steels - Duplex Steels – Hardfacing |
|
Dimensions |
690x290x510mm |
|
Weight |
35.2 kg |
|
Power supply |
|
|
Voltage (50/60 Hz) |
3x400 ±15% |
|
Maximum input power |
16.9kVA |
|
Maximum input current |
24.4 A |
|
Power factor PF |
0.95 |
|
Efficiency |
88% |
|
Slow blow line fuse |
25 A |
|
Open circuit voltage |
73Vdc |
|
IP protection rate |
IP23S |
|
Insulation class |
H |
|
Power supply cable |
4x4mm2 - 5 m |
|
Welding |
|
|
Adjustment range |
3-400A |
|
Duty cycle |
60% - 400A |
|
Remote Control compatible |
yes |
|
Welding programs |
600 (max.) |
|
Personalized programs |
240 |
| Cooling Units |
|---|
| Wire feeders |
|---|
| Remote Controls |
|---|
| Trolleys |
|---|
