voestalpine Chill Blocks

Chill block

designed for pure performance

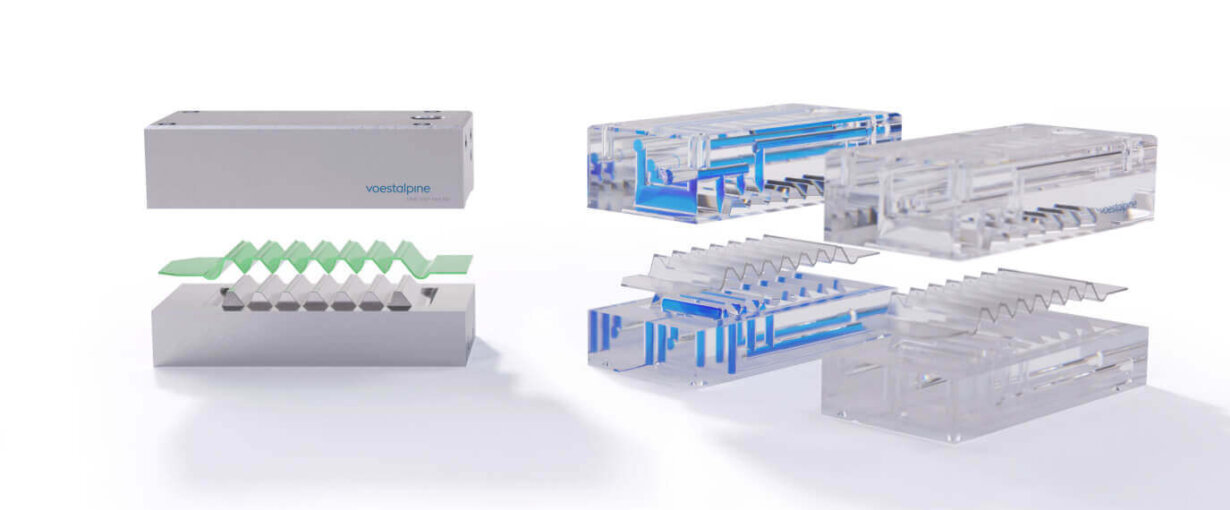

With voestalpine forced venting Chill Blocks, we combine first-class material know-how with our tailor-made solutions for every application requirement. The patented voestalpine wave design allows a large gap size (up to 1.3mm), which enables a consistently high venting performance. During the opening process, the special wave geometry leads to a self-deformation in the forced venting area, thereby lowering the removal forces and providing high process reliability.

Thanks to its robust steel design, this innovative solution is ideally suited for harsh foundry condition. Furthermore, low downtimes and less maintenance effort increases the OEE for our customers, which leads directly to improved productivity.

Configure & Buy
Customer Benefits
  • Special wave design
  • Reduced maintenance effort
  • Attractive costs compared to Cu-W blocks
  • Higher venting properties (venting gap up to 1.3mm)
  • Extremely long life time due to premium hot temperature wear resistance
Product Features

Technical Data

Material premium materials by BÖHLER/Uddeholm
Hardness Level up to 50 HRC

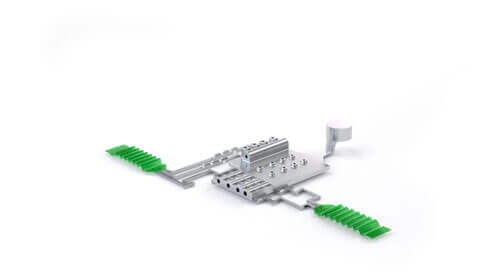

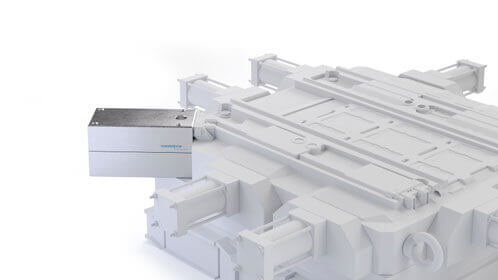

Applications

Die Casting

Manufacturing Process

Conventional

Technical Data

Chemical Analysis

C Si Mn Cr Mo V
0.50 0.20 0.25 4.50 3.00 0.60

C Si Mn Cr Mo V
0.38 0.30 0.50 5.00 2.30 0.60
