voestalpine Inserts for Test Tubes

designed for pure performance

test-tubespng

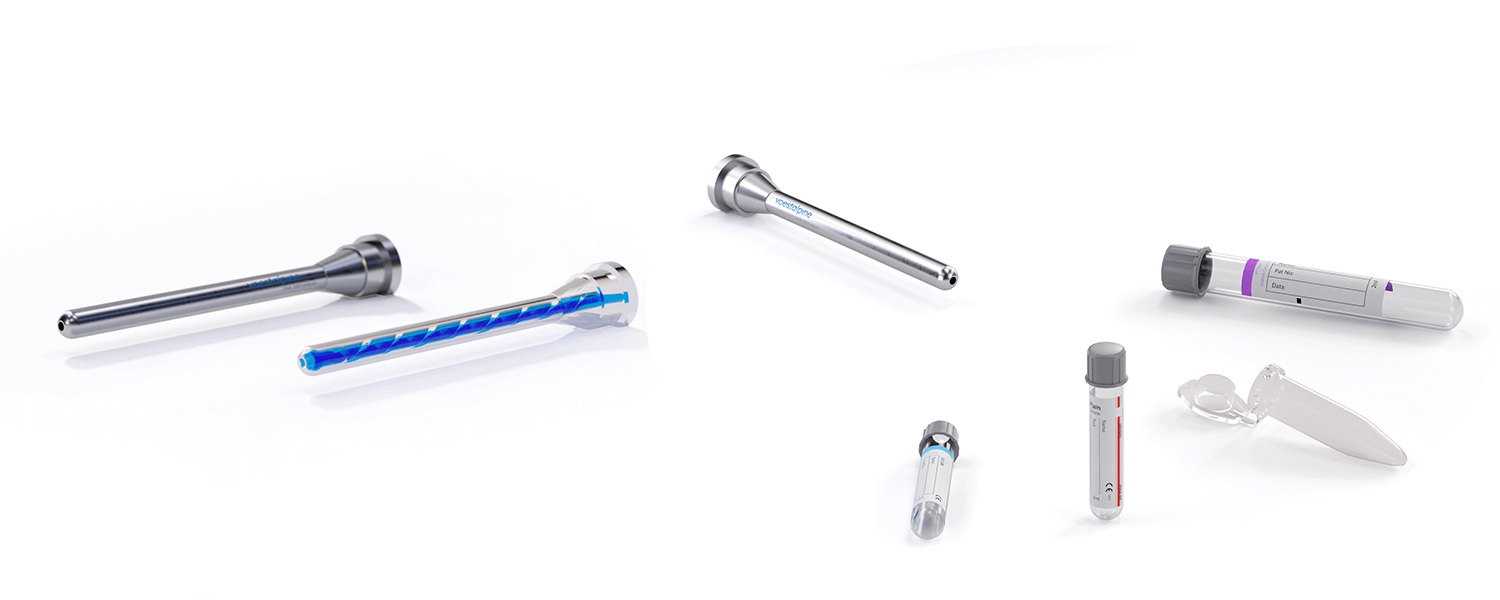

Our AM Inserts for Test Tubes have optimized conformal cooling solutions, enabling our customers to run a stable and highly efficient production with a minimized cost per plastic part produced.

Our inserts reduce the overall cycle time by up to 30% compared to conventionally manufactured drilled cooling channels. Improved part tolerances are also achieved through homogeneous and conformal cooling design, leading to decreased scrap rates.

Many globally active plastic injection molding companies in various industries have confirmed the premium functionality and profitability of our corrosion-resistant AM Inserts for Test Tubes.



General Information

  • Improved cycle time up to 30% –> increased productivity
  • Improved part tolerances –> reduced scrap rate
  • High gloss polishability –> state of the art surface quality (similar to 1.2083)
  • Higher wear resistance –> lifetime increase compared to copper beryllium inserts
  • Corrosion resistant material –> improved crack resistance

Technical Data

  • Material: premium materials by BÖHLER/Uddeholm
  • Hardness Level: 49 – 53 HRC
  • PVD Coating (optional): voestalpine special coatings
  • Cooling: voestalpine tailored conformal cooling

Applications

Injection Moulding

Manufacturing Process

Additive Manufacturing

Technical Data

C Si Mn Cr Ni Mo Al
0.03 0.30 0.30 12.00 9.20 1.40 1.60

C Cr Ni Mo Al Ti
<0.02 12.20 10.00 1.00 0.60 1.00

Downloads

Datasheet Inserts for Test Tubes EN
PDF | 329 KB
