Return to overview

Agricultural engineering

VTS®-edgeTubes the products of choice for agricultural engineering.

The seamless, hot-rolled, square and rectangular hollow sections from voestalpine Tubulars are ideally suited for use in agricultural engineering due to their product properties. They complement the portfolio of our circular hollow sections perfectly.

Agricultural engineering

Fields of application:


Self-propelled machines, e.g.:

  • Machines for crop protection and forestry technology
  • Harvester

Cultivation machinery, e.g.:

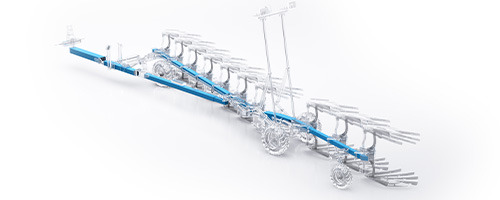

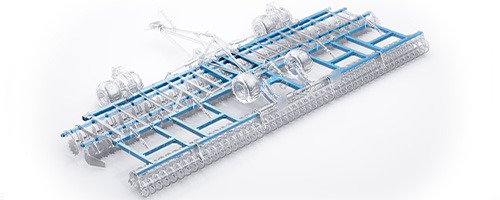

  • Machines for soil cultivation, such as plows, disk harrows or grubber
  • Seeding machinery

Tractors, e.g.:

  • Roll-Over-Protective-Structure (ROPS)

Technical Data
Corner radius

Ra ≤ 1,6 x T across the entire product range, tighter radius up to ≤ 1 x T upon request (depending on dimension & wall thickness), specified radius and tolerances possible upon agreement
Standards DIN EN 10210-1, -2, -3, ASTM A501/A501M, CE-marking
Dimensions Square 40 x 40 mm to 170 x 170 mm 11/2 x 11/2 inch to 65/8 x 65/8 inch
Rectangular 50 x 30 mm to 200 x 100 mm 2 x 21/2 inch to 8 x 4 inch
Wall thickness 5,000 mm to 14,000 mm, 16 to 46 ft
Lengths up to 25 mm (>25 mm upon request), up to 1 inch (>1 inch upon request)
Steel grades

S235 to S890 according to DIN EN or Grade A, B, C according to ASTM,VTS-500 and further tailor-made customer specifications upon request

Product characteristics and benefits:

Seamless, hot-rolled hollow sections with homogeneous structure also in the corner areas

  • Great processing opportunities due to lower residual stress
  • Increased resistance against oscillation loads and vibrations
  • Long-lasting and sustainable

Improved straightness, twisting and corner radius compared to the standard requirements

  • Advantages by reduced deformation during direct and further processing

Tighter corner radius guarantees:

  • A higher section modulus with increased safety for the end user
  • Higher load-bearing capacity, larger spans
  • Larger connecting area for connections to attachment parts and components
  • Increased efficiency for welding applications

Higher and high-strength steel grades

  • For more resilience
  • Saving weight
  • Over the entire product range
  • Weldability tests possible
  • VTS-500 as ideal solution for demanding agricultural products
  • The ideal steel grade for each application

Exceptional range of dimensions

  • Wall thickness up to 25 mm for extreme loads
  • Dimension infinitely adjustable
  • Optical advantages
  • No weld seam due to hot-rolling process
  • Excellent surface structure
  • Tighter corner radius

You want to know more?

If you have any questions about our VTS®-edgeTubes, feel free to contact us. Our experts will do their best to respond to your inquiries and concerns as quickly and thoroughly as possible.
