DIVERSITY WITH PROFILE FOR NUMEROUS INDUSTRIES

voestalpine BÖHLER Profil is the international expert in the field of high-quality steel profiles, which not only impress with the best material properties, but also realise enormous savings potential in further processing. There are numerous development partnerships with companies from a wide range of industries in which the standards of tomorrow are being created.

U-Boot

Profiles for boat building

Shipyards in special boat construction rightly place the highest technical demands in order to meet the challenges of extreme situations. voestalpine BÖHLER Profil develops and produces highly functional special profiles and is a supplier to the world’s most renowned shipyards.

Application examples:

  • Special profiles for hull construction
  • Special profiles made from non-magnetic austenitic steel

Profiles for machinery and plant engineering

A sector with the highest demands on intelligent high-tech materials and profiles. The required properties reflect the entire range of applications. Wherever top technological performance is required, special profiles from voestalpine BÖHLER Profil are used.

Application examples:

  • Special profiles for the production of throwing blades in sandblasting systems
  • Special profiles for the production of components in sheet metal bending machines
  • Special profiles made from tool steel, profiles made from high-speed steel
Textilmaschine
Textilmaschine

Profiles for the textile industry

Whether fashionable outerwear, functional sportswear or home textiles – today’s textiles also have to meet increasingly stringent requirements. Knitting is a tried and tested method of producing fabrics for the manufacture of various textiles. Circular and flat knitting machines produce either complete garments or knitted fabrics that are later processed further.

Application examples:

  • Special profiles for the production of components in circular knitting machines
  • Special profiles for the production of components in flat knitting machines

Application

BÖHLER Grade

DIN

UNS

EN

ASTM

AISI

Other

Mechanical and plant engineering

K100

K107

K110

K245

K455

K720

W302

W320

M130

M238

M303

A200

A300

N685

N695

P503

1.2080

1.2436

1.2379

1.2101

1.2550

1.2842

1.2344

1.2365

1.2764

1.2738

~ 1.2316

1.4404

1.4571

1.4112

1.3544

1.3974

–

–

–

–

–

–

T20813

T20810

–

–

–

–

–

S44003

S44004

–

X210Cr12

X210CrW12 X153CrMoV12

62SiMnCr4

60WCrV7

90MnCrV8

X40CrMoV5-1

32CrMoV12-28

X19NiCrMo4

40CrMnNiMo8-6-4

X36CrMo17

X2CrNiMo17-12-2

X6CrNiMoTi17-12-2

X90CrMoV18

X105CrMo17

X2CrNiMoNNb23-17-6-3

–

–

–

–

–

–

–

–

–

–

–

–

–

–

–

~ F49

~ D3

~ D6

D2

–

~ S1

–

H13

~ H10

–

~P20

–

316L

16Ti

~ 440B

440C

–

Boat building

P501

1.3964

S20910

X2CrNiMoNNb21-16-5-3

~ XM-19

Textile machine construction

K100

K400

K459

K505

1.2080

1.2562

–

1.2063

X210Cr12

142WV13

–

145Cr6

~ D3

~ F2-

–

–

~JIS SKD1

~JIS SKS 11

Conveyor system construction

K700

1.3401

X120Mn12

Other materials available

PROFILES FOR CONVEYOR SYSTEM CONSTRUCTION

Whether for the bulk goods industry, for waste incineration plants or the wood processing industry, voestalpine BÖHLER Profil supplies grooved flat profiles as chain guides in very small quantities from 100 kg and also realises integrated logistics concepts for extensive annual requirements.


Application example:

  • grooved flat profiles for chain guides
Förderanlagenbau

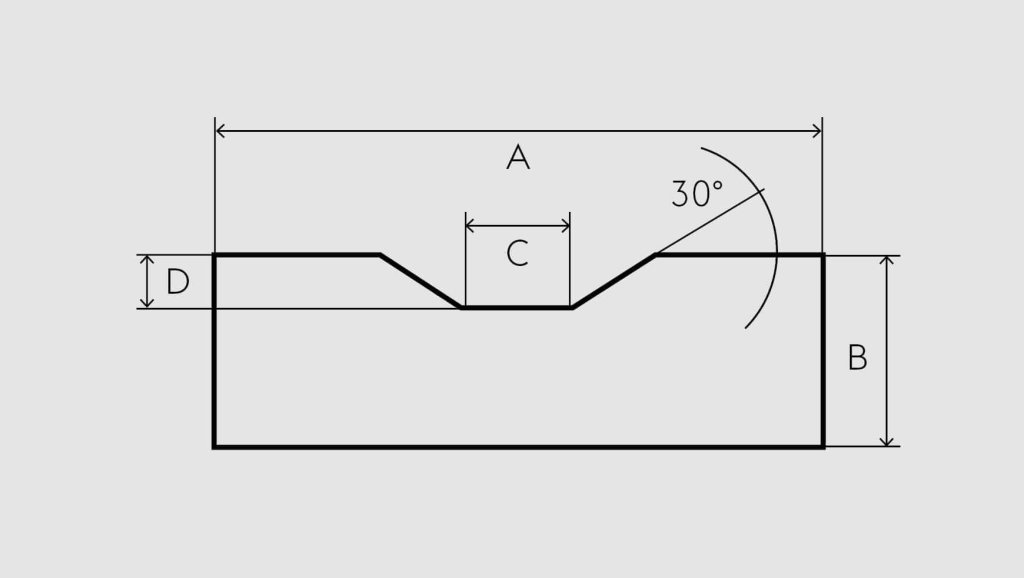

Zeichnung Manganschiene

Grooved flat profile dimensions in stock

Fixed length 3,050 mm (+ 200 / -0 mm), delivery status cancelled

We also offer you the option of producing grooved flat profiles according to your individual requirements (cross-section up to max. 4,000 mm2, bar lengths up to max. 6 m)

A (mm)

B (mm)

C (mm)

D (mm)

Drawing number

kg/m

25

35

40

40

50

50

60

60

70

70

10

10

10

20

10

20

10

20

10

20

5

5

5

5

5

5

6

6

15

15

2

2

2

2

2

2

3

3

3

3

3482

1227

3486

3500

1123

1138

3501

3502

2954

1447
1,96

2,75

3,14

6,28

3,93

7,85

4,71

9,42

5,50

10,99

PROFILES FOR THE ENERGY INDUSTRY

Profiles from voestalpine BÖHLER Profil can be found in turbine blades (guide vanes and rotor blades) of gas and steam turbines as well as in generator components and, if required, are also made of heat-resistant and high-temperature steels.

The near-net-shape production of the product solutions from a wide variety of materials that precisely meet the individual requirements make profiles from voestalpine BÖHLER Profil a unique overall package of product and material in thermal power stations, among other things. The focus is always on the special requirements of the finished component with regard to mechanical, chemical and thermal loads.

  • Special profiles for the production of components (such as compressors and guide and rotor blades) in gas and steam turbines
  • Special profiles for the production of components in generators
  • Special profiles made from heat-resistant and high-temperature steels

BÖHLER Grade

Market Grade

DIN

UNS

EN

AMS

ASTM

T200

T262

T550

T552

T602

T651

T655

P501

P550

P572

W100

A288

–

–

Jethete

–

–

–

–

–

–

–

1.4943, 1.4944, 1.4980

1.4986

1.4922, 1.4923, 1.4926, 1.4934

1.4933, 1.4938, 1.4939

1.4120, ~ 1.4921

1.4021

1.4006

1.3964

1.3813

1.3805

1.2581

S66286

–

–

S64152

–

–

–

S20910

–

–

–

X4NiCrTi25-15, X5NiCrTi26-15

X8CrNiMoBNb16-16

X20CrMoV12-1, X22CrMoV12-1, X21CrMoV12-1

X11CrNiMo12, X12CrNiMo12

X19CrMo12-1

–

X12Cr13

X2CrNiMoNNb21-16-5-3

X40MnCrN19

X35Mn18

X30WCrV9-3

5731, 5732

–

–

5719

–

–

–

–

–

–

–

–

–

–

–

–

–

–

≈ XM-19

–

–

–

Other materials available
