voestalpine Distributor Rings – Conventional

designed for pure performance

Our distributor rings for high pressure die casting applications are created from premium materials by BÖHLER/Uddeholm. The finished products include heat treatment and are available with or without eifeler PVD coating.

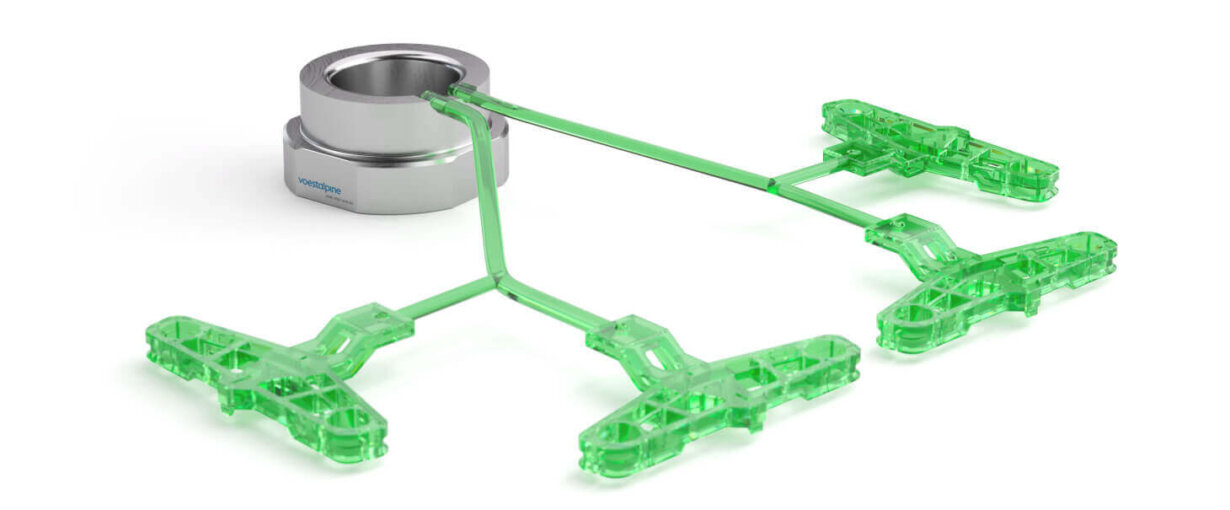

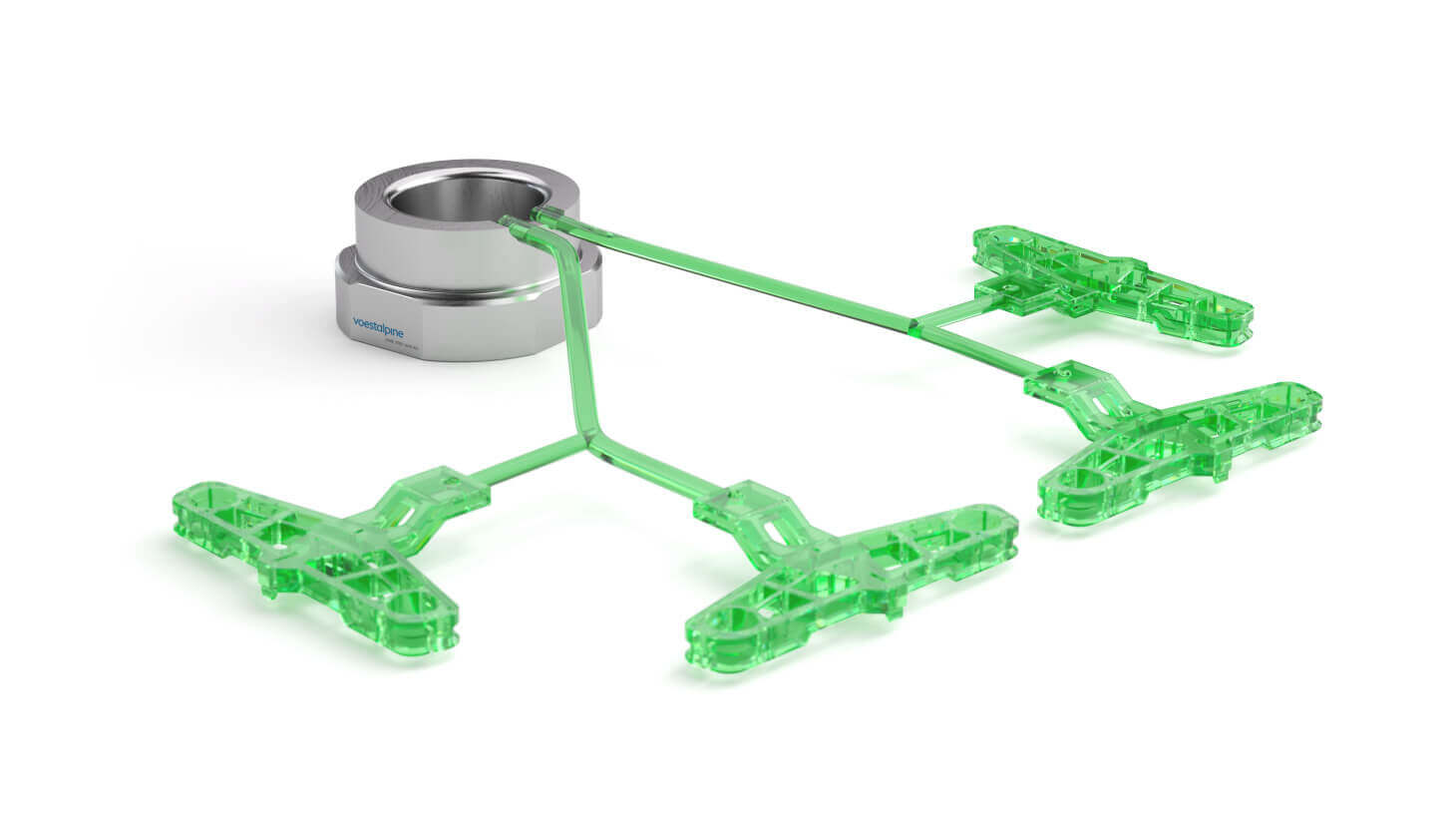

Our ready-to-use distributor rings are mainly used in two-plate die casting molds. This solution offers high temperature wear resistance, excellent ductility (cross crack resistance), good temper back resistance and soldering reduction (with eifeler PVD coating). Reduced down-time and maintenance efforts, increases the OEE for our customer, which directly results in increased productivity.

Customer Benefits

Outstanding hot wear resistance
Premium temper back resistance
High ductility (safety against cracks)
High soldering resistance (with PVD coating)
High thermal conductivity

Product Features

Technical Data

Material	premium materials by BÖHLER/Uddeholm
Hardness Level	48 – 56 HRC
Cooling	With or without conventional cooling

Applications

Die Casting

Manufacturing Process

Conventional

Technical Data

Chemical Analysis

C	Si	Mn	Cr	Mo	V
0.50	0.20	0.25	4.50	3.00	0.60

C	Si	Mn	Cr	Mo	V
0.38	0.30	0.75	2.60	2.25	0.90

Downloads

Datasheet Distributor Rings Conventional EN
