voestalpine Sprues – AM

designed for pure performance

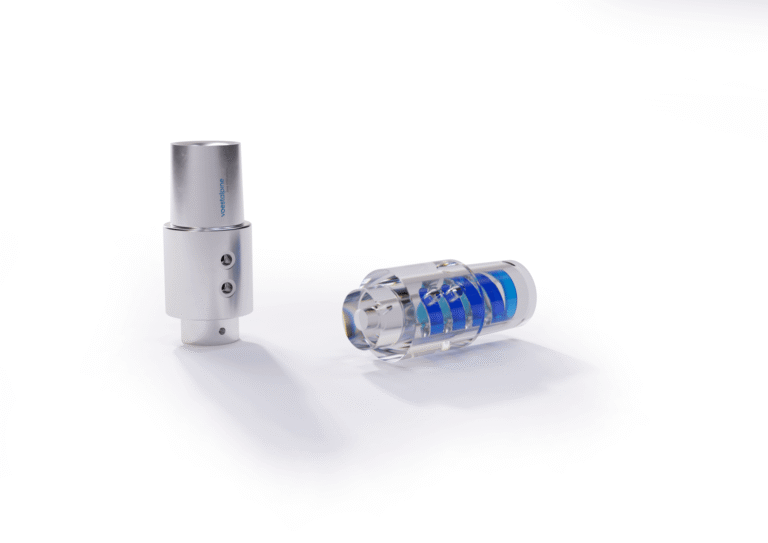

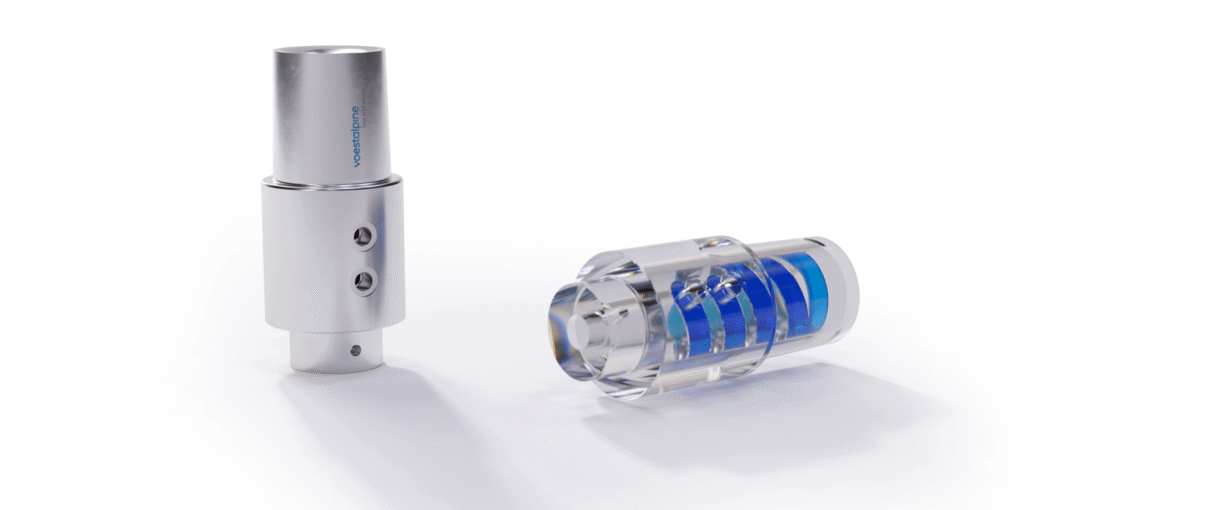

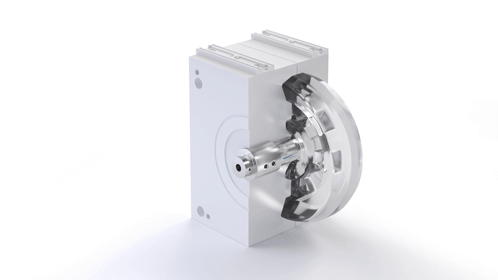

voestalpine AM Sprues for die-casting applications are produced with premium materials by BÖHLER/Uddeholm. Used mainly in three-plate die casting molds, these finished products include voestalpine heat treatment, final machining, eifeler PVD coating, and customized conformal cooling.

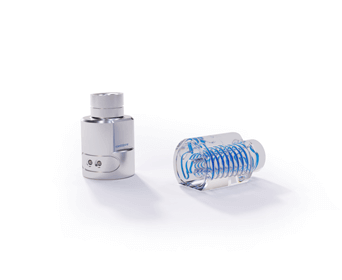

Our additively manufactured (AM) sprues offer outstanding high-temperature wear resistance, excellent ductility (gross crack resistance), premium tempering resistance, significant soldering reduction, high heat-checking resistance, as well as high thermal conductivity. AM versions are further enhanced with our customized high-performance conformal cooling design to attain the highest efficiency in die temperature control. These superior properties enable reduced downtime, maintenance effort and cycle time, thereby substantially increasing OEE.



Configure & Buy

  • Reduced cycle time
  • Reduced scrap rate
  • Increased lifetime
  • Reduced maintenance effort
  • Reduced fluctuations in casting quality

Main Properties

  • Outstanding high-temperature wear resistance
  • Premium tempering resistance
  • Excellent ductility (safety against cracks)
  • High soldering resistance
  • High thermal conductivity

Technical Data

Material premium materials by BÖHLER/ Uddeholm
Hardness Level 50 – 57 HRC
PVD Coating (optional) voestalpine special coatings
Cooling voestalpine tailored conformal cooling

Applications

Die Casting

Manufacturing Process

Additive Manufacturing

Technical Data

C Si Mn Cr Mo V
0.50 0.20 0.25 4.50 3.00 0.60

C Si Mn Cr Mo V
0.35 0.20 0.50 5.00 2.30 0.60

Downloads

Datasheet Sprues AM EN
