voestalpine Inserts for Syringes

designed for pure performance

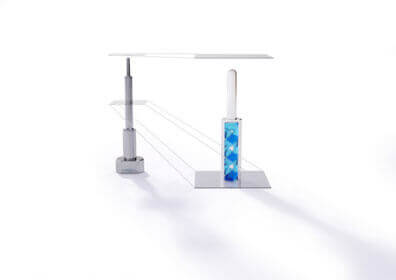

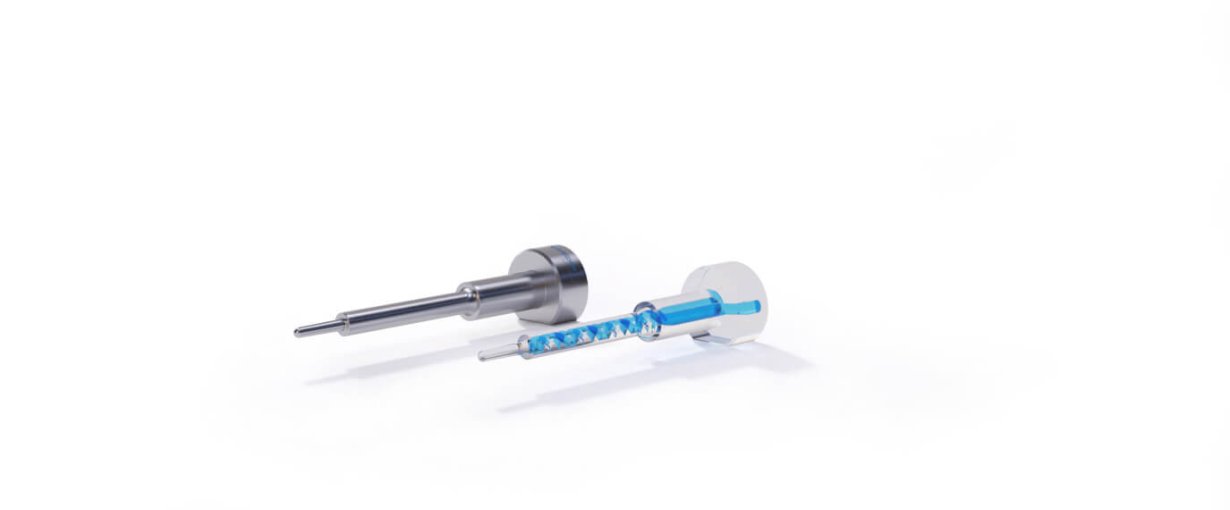

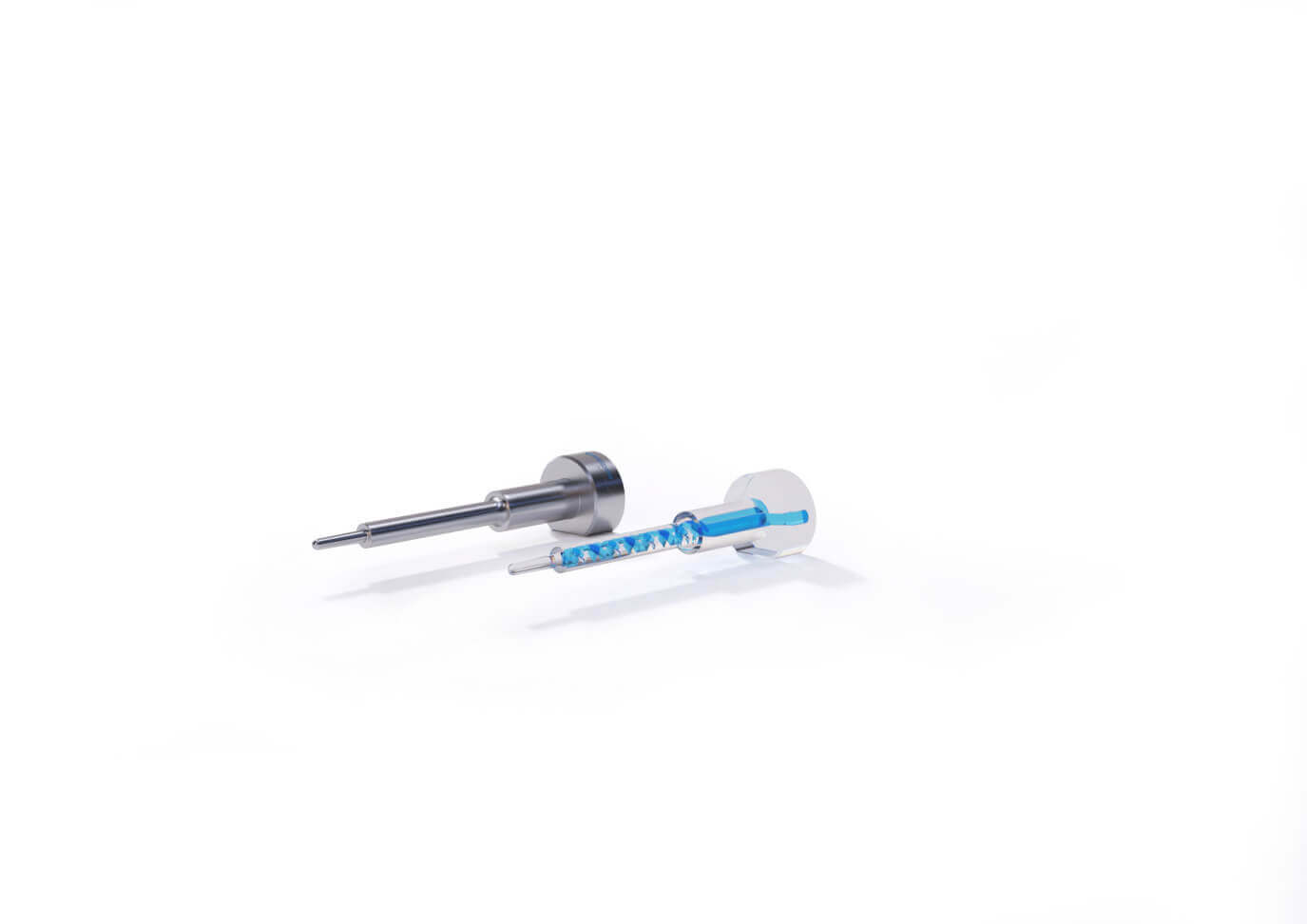

Our AM Inserts for Syringes have optimized conformal cooling solutions, enabling our customers to run a stable and highly efficient production with a minimized cost per plastic part produced.

Our inserts offer a refined production process, reducing the overall cycle time by up to 15% compared to sprinkler cooling. Improved part tolerances are also achieved through homogeneous and conformal cooling design, leading to a reduced scrap rate. The polishability requirements (similar to 1.2083) are achieved for 100% of the produced inserts.

Many syringe producers have tested our AM solutions and confirmed the increased profitability by using our corrosion-resistant AM Inserts for Syringes.



Configure & Buy

  • Improved cycle time up to 15% –> increased productivity
  • Improved part tolerances –> reduced scrap rate
  • High gloss polishability –> state of the art surface quality (similar to 1.2083)
  • Corrosion resistant material –> improved crack resistance

Technical Data

Material premium materials by BÖHLER/Uddeholm
Hardness Level 49 – 53 HRC
PVD Coating (optional) voestalpine special coatings
Cooling voestalpine tailored conformal cooling

Applications

Plastic Injection Molding

Manufacturing Process

Additive Manufacturing

Technical Data

C Si Mn Cr Ni Mo Al
0.03 0.30 0.30 12.00 9.20 1.40 1.60

C Cr Ni Mo Al Ti
<0.02 12.20 10.00 1.00 0.60 1.00

Downloads

Datasheet Inserts for Syringes EN
