UniAS wheel sensor

State of the Art Detection Systems

Reliable Detection
for Your Application

We  offer different types of wheel sensor depending on your local requirements and given needs. Special focus has been given on below features, ensuring its suitability for all rail bound applications:

  • easy and fast mounting
  • highest resitance against any electrical disturbance
  • outstanding temperature stability
  • Ingression Protection (IP68)
  • no electronics in trackside connection box

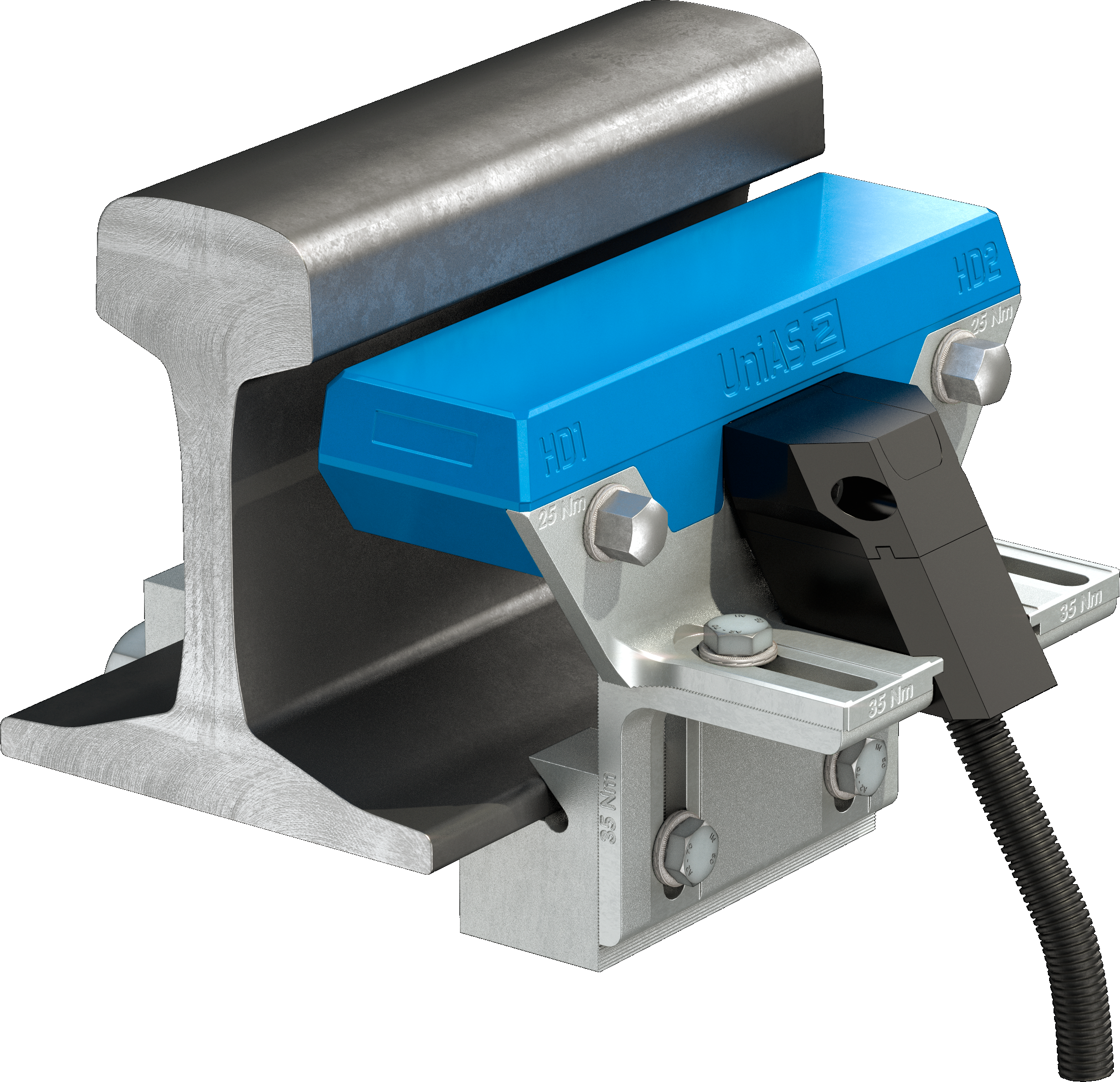

UniAS[2] Wheel Sensor
the Heart of Axle Counting System

The UniAS[2] Wheel Sensor is a SIL4-approved solution developed from decades of industry experience. Incorporating cutting-edge technology,
it ensures exceptional reliability
and maximum availability in demanding environments.


Designed for ease of use, the sensor features a pluggable cable
and an innovative, no-drill mounting system, easily adjustable for quick installation and maintenance.

20 mA Analog Signal

  • Enhanced interference immunity on cable section
  • More flexibility for switching thresholds adjustments

Variable Signal Amplification

  • Interfering signals will not be amplified
  • Amplification for desired signal only

Enhanced Temperature Stability

  • Each wheel sensor is tested from -40°C up to +85°C in our climatic chamber before leaving our factory

Mounting

  • Easy mounting without drilling
  • Rail clamp optimized against vibrations and shocks
  • Suitable for almost all rail profiles
  • Grooved rail installation methods available upon request

Pluggable Cable

  • Advantage for mounting and service activities
  • IP68 certified
  • Pluggable cable on wheel sensor and connection box side available uppon request

Auxilary Information provided by the Wheel Sensor

  • Serial number
  • Information about temperature
  • And many more

Cable Outlet & Color Selectable

  • Depending on the application and customer requirements
  • Colors depending on your local needs
