Scaling Heat Treatment for Gigacasting: Processing Large Structural Dies up to 15 Tons

The automotive industry is undergoing a fundamental shift as premium manufacturers rapidly adopt Megacasting and Gigacasting technologies to streamline production. This shift has led to a substantial increase in tooling size, with die weights now commonly exceeding several tons. As a result, the demands placed on die casting tooling have increased. Large-scale structural components require massive, complex dies that must endure  thermal shock, high mechanical loads, and short cycle times without cracking or losing dimensional accuracy.

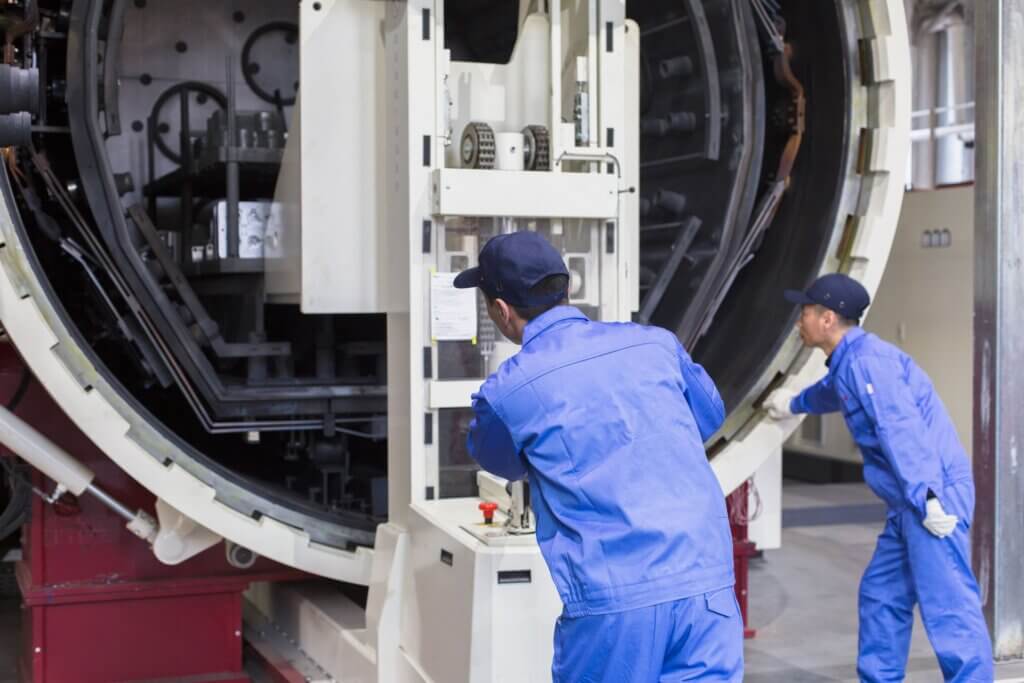

At voestalpine, our focus is on developing heat treatment capabilities that meet the evolving requirements of large-scale die casting tooling. While the market adapts to processing larger tooling components, our high-capacity vacuum heat treatment facilities are designed to process die tools with weights of up to 15 tons, supporting consistent quality across large geometries.

The Challenge of Scale: Why Advanced Heat Treatment Matters

When dealing with massive tooling geometries ranging from 7.5 to 15 tons, conventional heat treatment processes reach their practical limits, particularly in maintaining uniform cooling across complex geometries. Varying cross-sections and extreme thicknesses are highly susceptible to uneven cooling, resulting in internal stresses, and severe component distortion.

Achieving a uniform microstructure across a 15-ton block of premium tool steel requires careful control of thermal power, atmospheric conditions, and quenching behaviour. At this scale, even small variations in cooling rates or temperature distribution can lead to microstructural inconsistencies that affect component performance.

The voestalpine Advantage at a Glance

Engineering the Future of Large-Scale Tooling

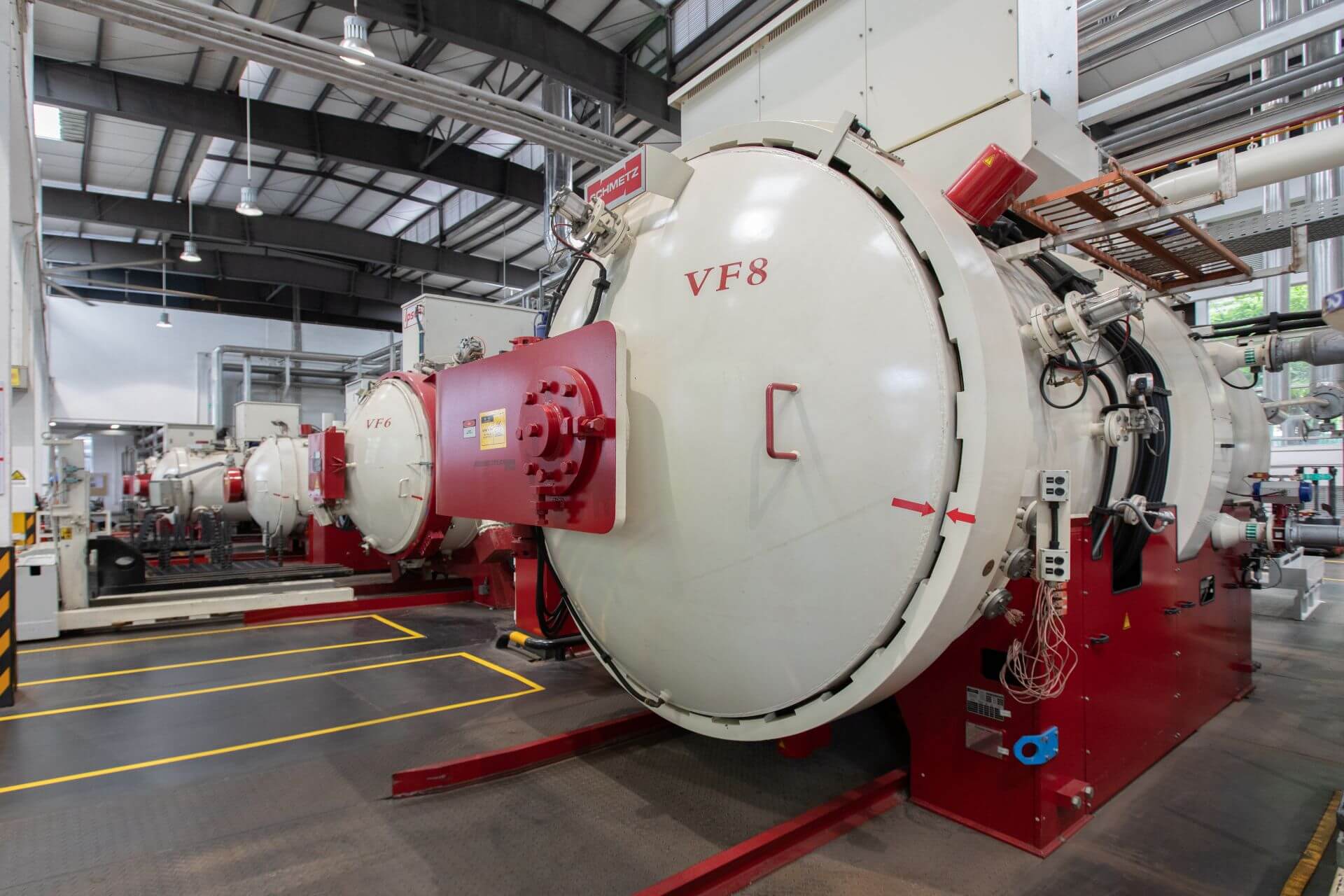

Our state-of-the-art vacuum hardening infrastructure is purpose-built to maximize the lifetime and performance of high-performance die casting dies:

• High-Capacity Processing: With a payload capability handling batches from 7.5 up to 15 tons, we process the largest, most complex tooling segments required for modern structural gigacasting.
• Precision-Engineered Gas Quenching: Our cooling dynamics are designed to ensure uniform heat extraction even at the core of massive blocks. This helps to minimize distortion, reduce post-heat-treatment machining time, and maximize structural reliability.
• A Complete Material & Process Synergy: Exceptional heat treatment is only part of the solution. By pairing our specialized thermal processing with voestalpine’s premium tool steels, we ensure maximum toughness, superior heat checking resistance, and unparalleled production longevity.

Decades of Experience with Large Moulds & Automotive Leaders

We understand that handling massive, high-value tooling requires a high level of reliability. Our reputation is built on extensive experience in the heat treatment of large-scale moulds, ensuring that complex geometries retain their structural integrity through every phase of the process.

This technical expertise is why we are trusted by the world’s leading automotive manufacturers. We understand the rigorous quality, repeatability, and performance standards required by top OEMs, delivering the reliability and precision required for large-scale automotive production.

Consistent Performance at Scale

As gigacasting continues to drive the production of larger and more complex structural components, heat treatment becomes a critical step in ensuring consistent performance and dimensional stability. Scaling these processes while maintaining control over microstructure and distortion is essential to meet the evolving demands of modern die casting applications.

Contact our Heat Treatment Experts

Ready to find out more about heat treament for your next projects? Contact our experts today!
