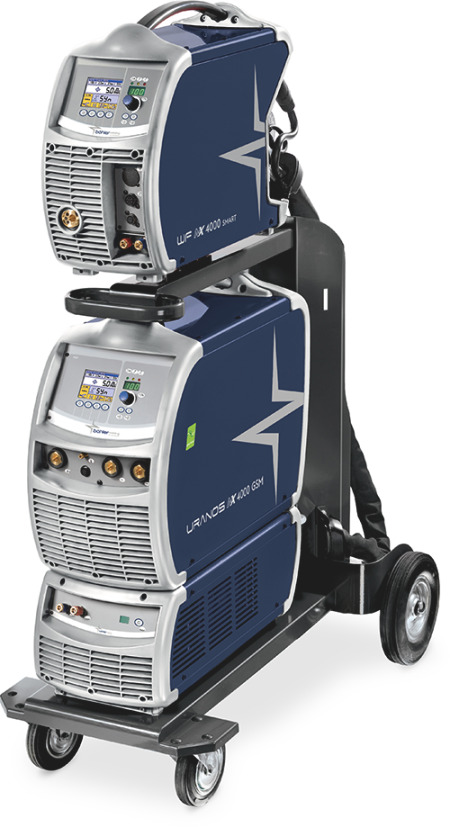

The URANOS NX 4000 GSM is a power source which combines the high technology of digital control with great simplicity of use to give accurate high quality welding as a result. It is capable of meeting the welding requirements of any field of application. The wealth of technological functions and solutions make it a valued product in all application areas where accurate and high quality welding is required.
| General | |
|---|---|
| Welding processs | MIG/MAG - PULSED MIG/MAG - MMA - TIG DC HF |
| Materials | Carbon steels - Stainless Steels - Duplex Steels Aluminum - Copper - Hardfacing |
| Dimensions |
690x290x510mm |
| Weight | 36.5 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400/230V±15% |
| Maximum input power | 16.1/16.5 kVA |
| Maximum input current | 24.4/43.7 A |
| Power factor PF | 0.95 |
| Efficiency | 88% |
| Slow blow line fuse | 25/45 A |
| Open circuit voltage | 73Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x4mm2 - 5 m |
| Welding | |
| Adjustment range | 3-400A |
| Duty cycle MIG/MAG - 40 °C |
60% - 400A 100% - 360A |
|
Duty cycle
MIG/MAG - 25 °C
|
|
| Ø Wire diameter | 1.0-1.2 mm (opz 0.6-1.6) |
| Ø Fluxcoredwire | 1.2 - 1.6 mm |
| Ø Aluminumwire | 0.8 -1.6 mm |
| Wire speed | 0.5 - 22.0 m/min |
| N° rolls | 4 (2 WF NX 2000) |
| Wire spool diameter | Ø 200/300mm (200 mm WF NX 2000 |
| Welding programs | 600 |
| Personalized programs | 240 |
| U/D TIG Torch compatible | yes |
| U/D MIG/MAG torch compatible | yes |
| PUSH PULL torch compatible | yes |
| Remote Control compatible | yes |
| Torches |
|---|
| Cooling Units |
|---|
| Wire Feeders |
|---|
| Trolleys |
|---|
| Remote Controls |
|---|
| Other Accessories |
|---|
