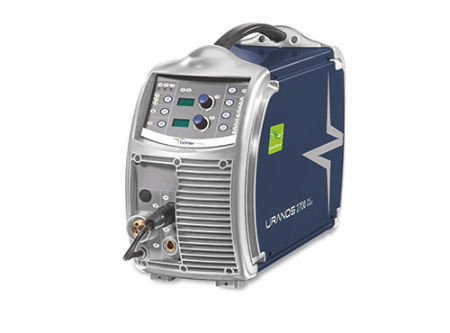

URANOS 2700 SMC

The URANOS 2700 SMC ist the perfect welding power source for simple, reliable and modern wire fed welding. It is particularly suited to the continuous processes typical of light metal fabrication, shipbuilding, car repairand mechanical workshops in general.

MIG/MAG - MMA
Three-phase 3x230V-3x400V
greenWave^®inverter technology
Built-in wire feeder unit
Synergic programs

Customers like it because:

Documents

Data Sheet

General
Welding processs	MIG/MAG - MMA - TIG DC Lift
Materials	Carbon steels - Stainless Steels - Aluminum - Copper
Dimensions	620x270x460mm
Weight	23.7 kg
Power supply
Voltage (50/60 Hz)	3x400/230V±15%
Maximum input power	9.1/9.1 kVA
Maximum input current	13.1/22.8 A
Power factor PF	0.94/0.96
Efficiency	85/86 %
Slow blow line fuse	16/20 A
Open circuit voltage	92Vdc
IP protection rate	IP23S
Insulation class	H
Power supply cable	4x2.5mm² - 5 m
Welding
Adjustment range	3A-270A
Duty cycle MIG/MAG - 40 °C	45% - 270A 60% - 250A 100% - 230A
Duty cycle MIG/MAG - 25 °C	100% - 270A
Ø Wire diameter	1.0 -1.2 mm (opz .0.8-1.2)
Ø Fluxcoredwire	1.2 -1.6 mm
Ø Aluminumwire	0.8 -1.2 mm
Wire speed	0.5 - 22.0 m/min
N° rolls	2 (4 opz)
Wire spool diameter	Ø 200/300mm
Remote Control compatible	yes

	2700 SMART	2700 EXCLUSIVE
Synergic program	16	31
Welding program memory location	-	64
U/D MIG/MAG torch compatible	-	yes
PUSH PULL torch compatible	-	yes

Applications
- Light job shop fabrication
- Building sites
- Shipyards
- Automobile industry
- Railway industry
- Repair and overhaul
- Workshops
- Sheet metal working
Technicalities
- greenWave inverter technology for high energy efficiency and perfect control over all welding phases
- Heavy duty and enviromental conditions, high service life
- CAN fieldbus digital communication protocol system (very high speed and high reliability digital communication)
- Software based controls can be upgraded as new features become available
- High temperature, shockproof, abrasion resistant plastic case
- Air flow ducting and fully encapsulated PC board to avoid dust contamination
- Linear controlled fan on demand
- Energy-saving inverter technology (built-in P.F.C. - power factor controller)
- Built-in wire feeder unit (2/4 rolls drive)
- Wire drive unit fully designed by voestalpine Böhler Welding
- Ø 200/300 mm wire spool compatible
- Welding polarity switch device
- Full digital and user-friendly control panel
- Welding parameters digital display
- Last job settings auto-storage at switch-off
- Lock-unlock function key protected by password
- Ideal for stick welding with multiple types of popular electrodes
- Built-in adjustable arc control features (hot start, arc force, antisticking)
- Synergic setting for optimal stick welding with all types of electrodes
- Reduced electromagnetic interference with lift start TIG welding
- 2/4 step operating mode
- Arc dynamic adjustment
- Perfect arc ignition (soft start - motor slope)
- Burn-back and droplet detachment correction
- Synergic operations from databank (16 pre-set programs)/(URANOS 2700 SMC SMART)
- Wire speed (0,5-22,0 m/min)
- Spot welding mode
- Intermittent welding mode
- Bilevel MIG/MAG (Uranos 2700 SMC Smart)
- Remote control compatible
- WU cooling unit compatible
- Controlled cooling operations
