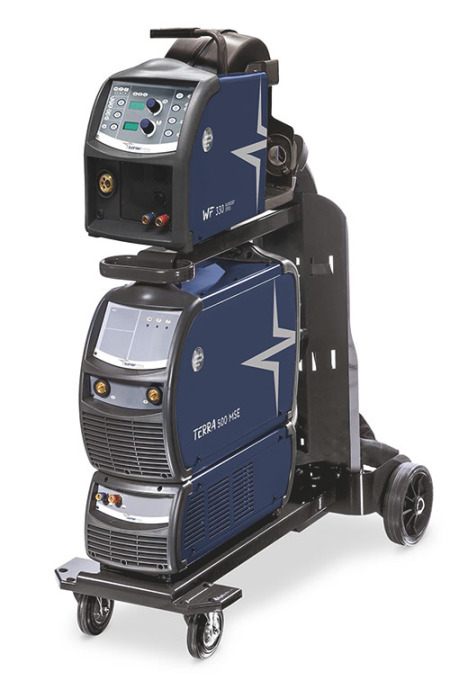

The TERRA 500 MSE is the perfect welding power source for simple, reliable and modern wire fed welding. It is particularly suited to the continuous processes and high welding volumes typical of light and heavy metal fabrication, shipbuilding, plant construction and mechanical workshops in general.
| General | |
|---|---|
| Welding processs | MIG/MAG - MMA |
| Materials | Carbon steels - Stainless Steels - Aluminum - Copper |
| Dimensions | 620x240x460mm |
| Weight | 27.3 kg |
| Power supply | |
| Voltage (50/60 Hz) | 3x400V±15% |
| Maximum input power | 29.7 kVA |
| Maximum input current | 42.1 A |
| Efficiency | 90% |
| Slow blow line fuse | 40 A |
| Open circuit voltage | 61Vdc |
| IP protection rate | IP23S |
| Insulation class | H |
| Power supply cable | 4x6mm2 - 5 m |
| Welding | |
| Adjustment range | 3-500A |
| Duty cycle MIG/MAG - 40 °C |
50% - 500A 60% - 470A 100% - 420A |
|
Duty cycle
MIG/MAG - 25 °C
|
80% - 500A
100% - 470A
|
| Ø Wire diameter | 1.0 -1.2 mm (opz .0.6-1.6) |
| Ø Fluxcoredwire | 1.2 -2.4 mm |
| Ø Aluminumwire | 0.8 -1.6 mm |
| Wire speed | 0.5 - 22.0 m/min |
| N° rolls | 2 (4 opz) |
| Wire spool diameter | Ø 200/300mm |
| Remote Control compatible | yes |
| Synergic program | 18 (WF SMART) - 40 (WF Exclusive) |
| Welding program memory location | 64 (WF Exclusive) |
| U/D MIG/MAG torch compatible | yes (WF Exclusive) |
| PUSH PULL torch compatible | yes |
